CCI-03000-C-V (5 Pcs)

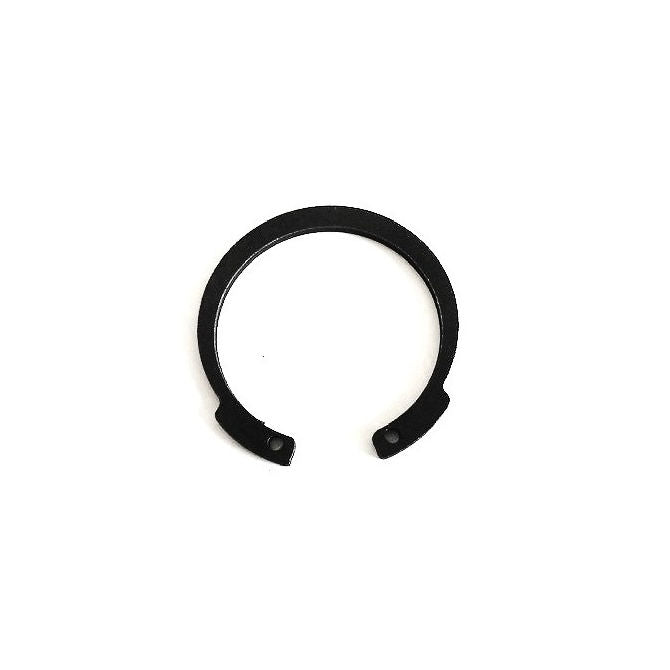

Internal Retaining Rings - 30x1.2x31.4 mm - Carbon Steel

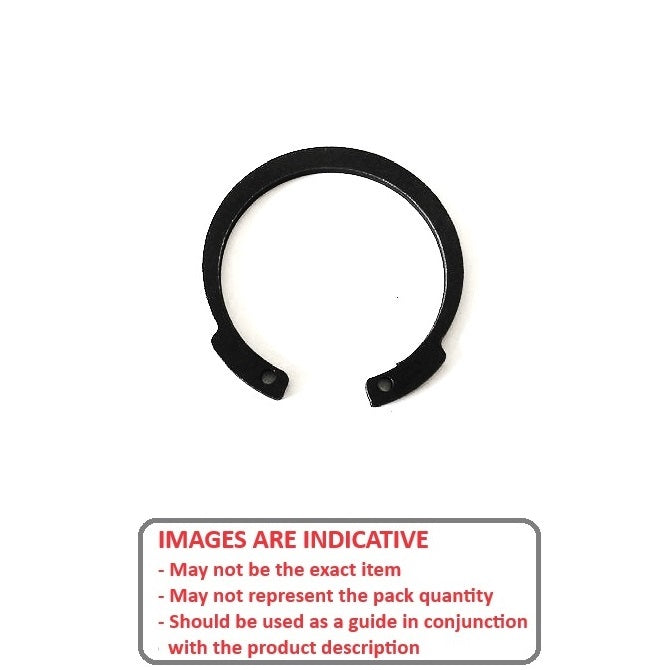

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
  • Internal Retaining Rings - 30x1.2x31.4 mm - Carbon Steel
1 4

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$9.41 AUD
$9.41 AUD
per 5
Qty: 10 available now (50 pcs)
Order 50 or more (250 pcs) for $8.47 AUD per 5
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Sep 12, 2025

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Inverted

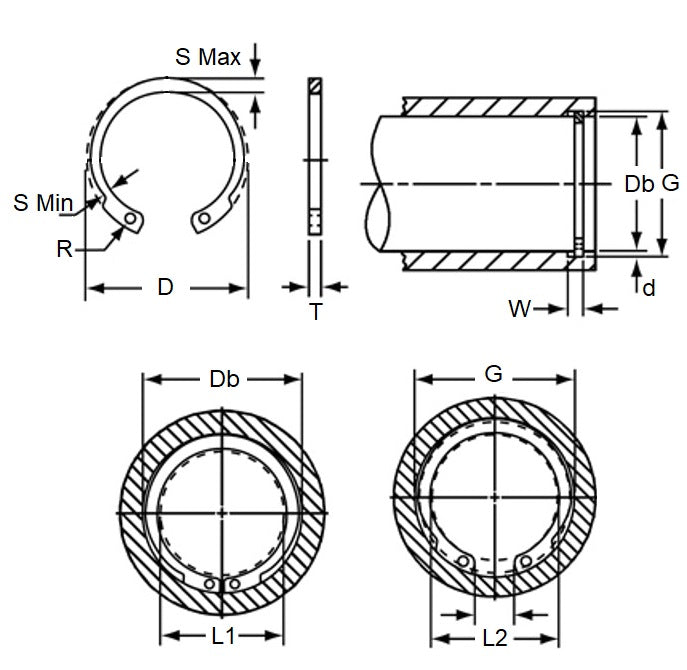

Product Details:

Housing Bore (B): 30.00mm
(30.00mm is 1.181 in.)

Carbon Steel
  • Clip Thickness (T): 1.20mm
    + 0.25 / - 0.00
    (1.20mm is 0.047 in.)
  • Groove Dia. (Dg): 31.40mm
    + 0.00 / - 0.06
    (31.40mm is 1.236 in.)
  • Approx. Loose Circlip OD (Dr): 31.83mm
    + 0.50 / - 0.25
  • Radial Wall Max (S): 3.1 - 3.2
  • Groove Width (W): 1.30mm
  • Tool: PRS-I011

Brand: MBA
Country of Origin: US

Alternative Parts Include: MDHOI-030, MDHOI030, BN830030, BN830-030, M1308-030, M1308030, INTV-030, INTV030, JV-030, JV030, Bossard, Ellison, Seeger, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
