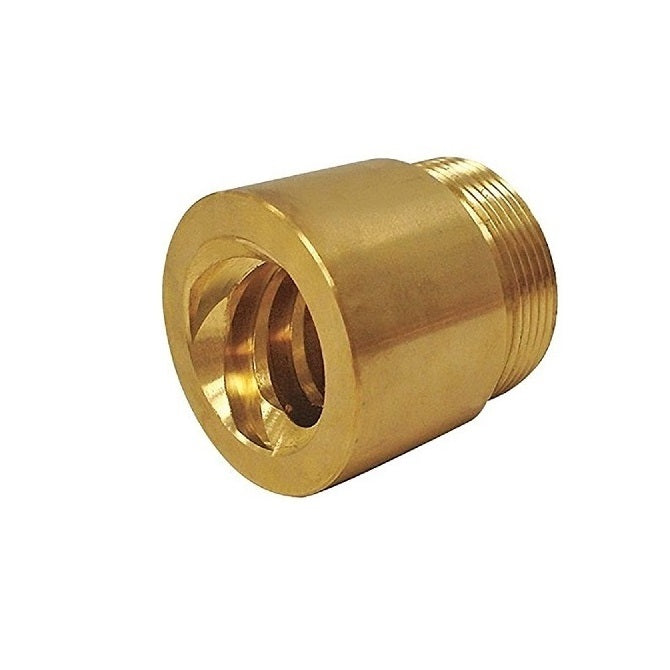

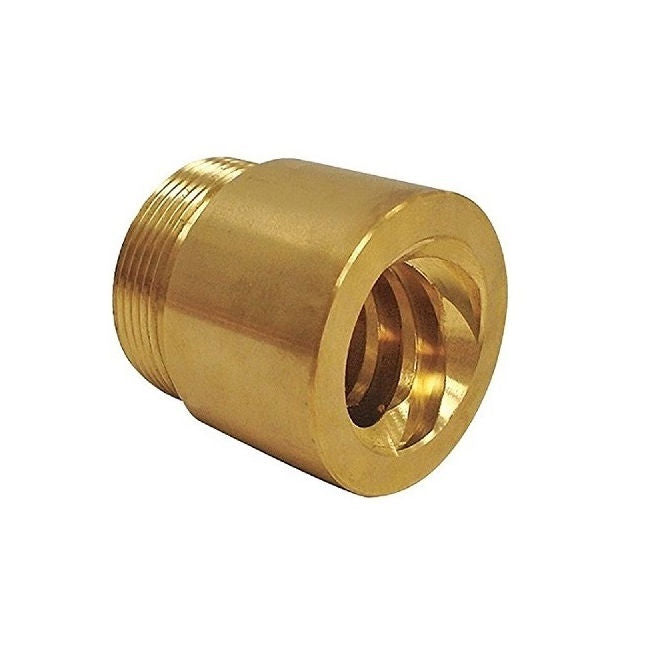

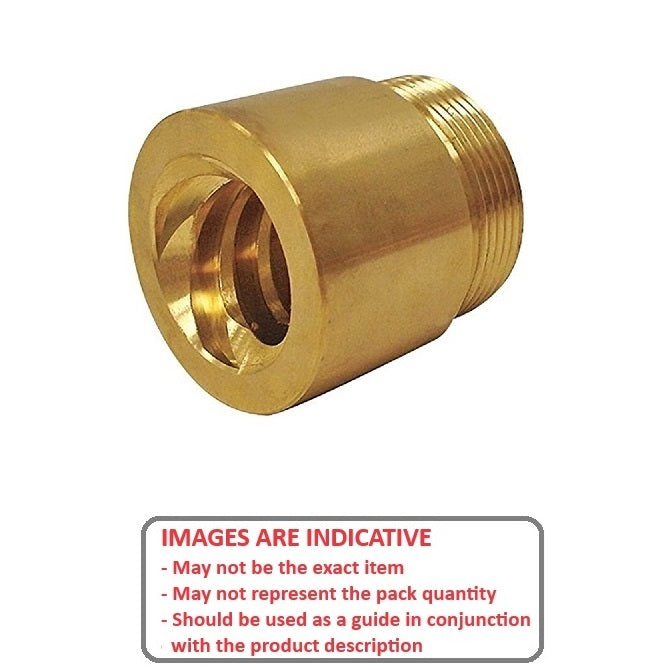

Leadscrew - 9.525 mm x 12 x 1
AR212RS
Out Of Stock
Order 50 or more for $145.43 AUD Each
Base Category: Leadscrew Nuts - Imperial
Top Level Category: Leadscrew Nuts - Imperial - Acme - Bronze

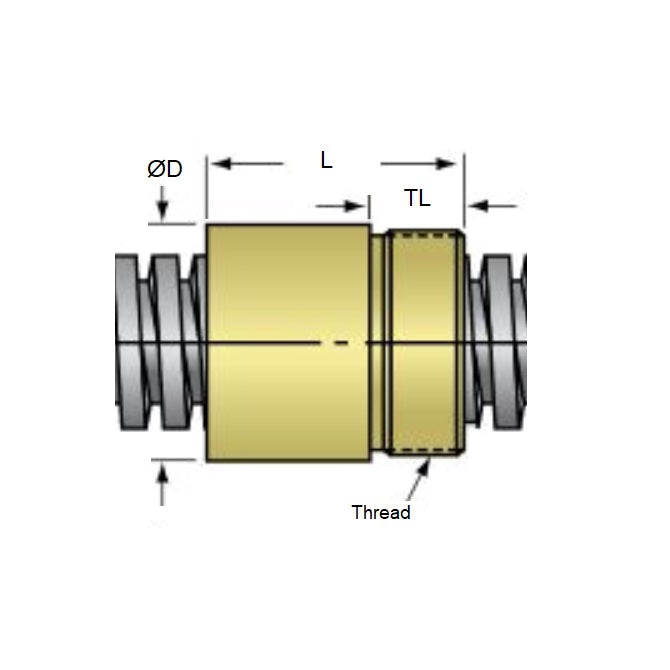

Product Details:Screw Size OD: 9.525mm
Bronze
- Number of Threads Per Inch: 12
- Number of Starts: 1
- Lead: 2.1167mm
- External Nut Mounting Thread: 9/16-18
- Direction: Left Hand
- Overall Length: 15.75mm
- Thread Length: 9.65mm
- Nut Diameter: 21.59mm
Brand: MBA
Country of Origin: US
Alternatives: AR-212
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
