CS-0352-0094-03-S2-C (PK-5)
Compression Springs - 3.52x9.4x0.32 mm - Stainless Steel 302/304 Similar to A2, 18-8 Spring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportSpings Catalogue PDF
Assortment Kits
Order 50 or more packs of 5 (250 pcs)
for $57.97 AUD per 5 pack

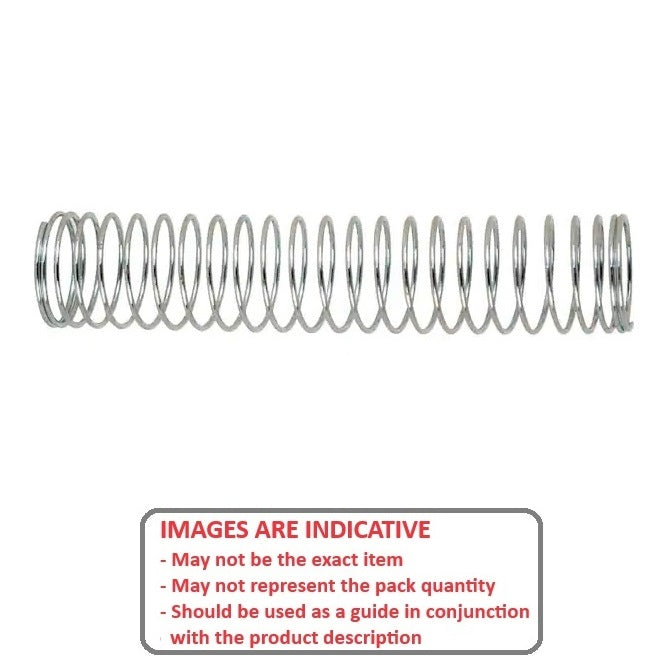

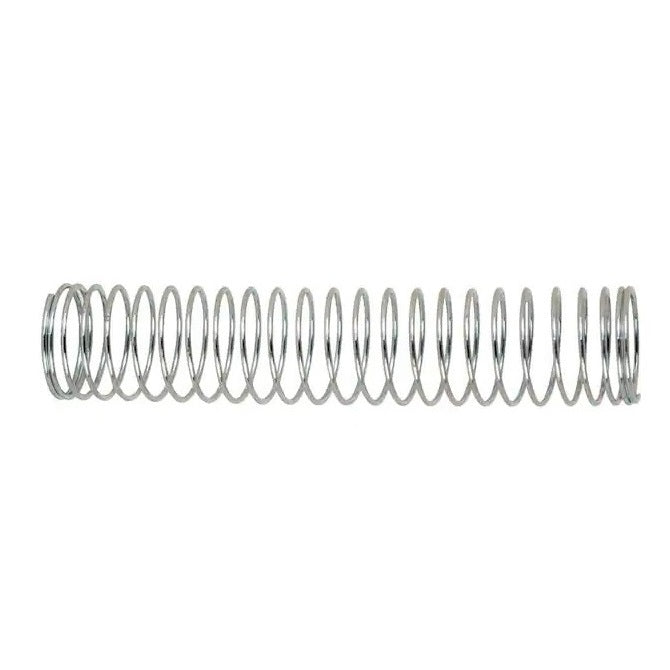

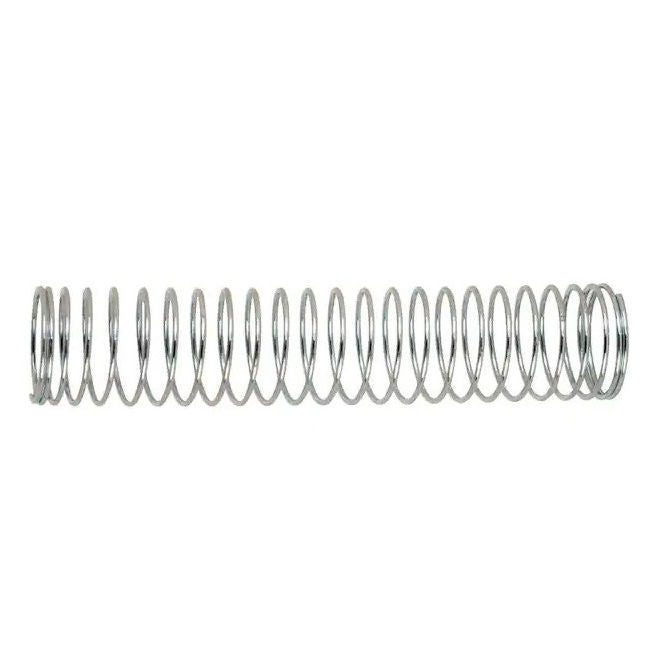

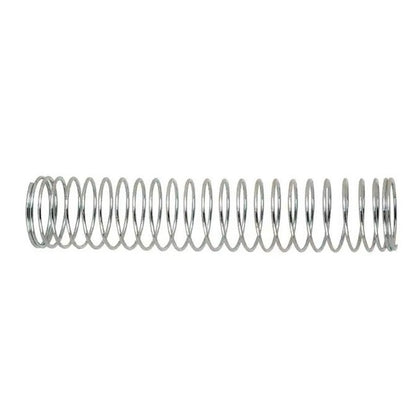

3.52x9.4x0.32 mm Compression Springs - Stainless Steel 302/304 (Similar to A2, 18-8) - Sold per pack of 5:
Base Category: Springs - Compression
Top Level Category: Springs - Compression - Stainless Steel
Product Details

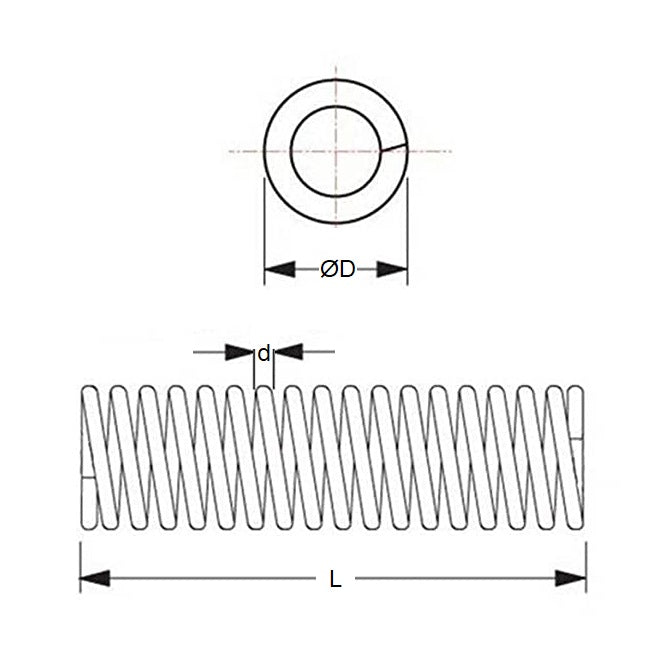

Spring OD (D0): 3.52mm+/- 0.127
(3.52mm is 0.139 in.)
Stainless Steel 302/304 (Similar to A2, 18-8)
- Spring OD (D0): 3.52mm
+/- 0.127
(3.52mm is 0.139 in.)
- Free Length (L0): 9.4mm
+/- 0.38
(9.4mm is 0.37 in.)
- Wire Diameter (d): 0.32mm
+/- 0.015
(0.32mm is 0.013 in.)
- Loaded Height (L1): 3.30mm
- Load at L1: 3.16N
- Rate (P/f): 0.5N/mm
- Solid Height (Sh): 2.70mm
- Approx. ID: 2.9mm
- End Type: Closed
- Max Rod Dia. (A): 2.70mm
Brand: MBA
Country of Origin: DE
Product Compliance and Data
Similar to
- ALTPART
- 2006N109
- CD2076
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
CS0352009403S2C, CS03520094
