KW-032-042-093-CH (PK-12)

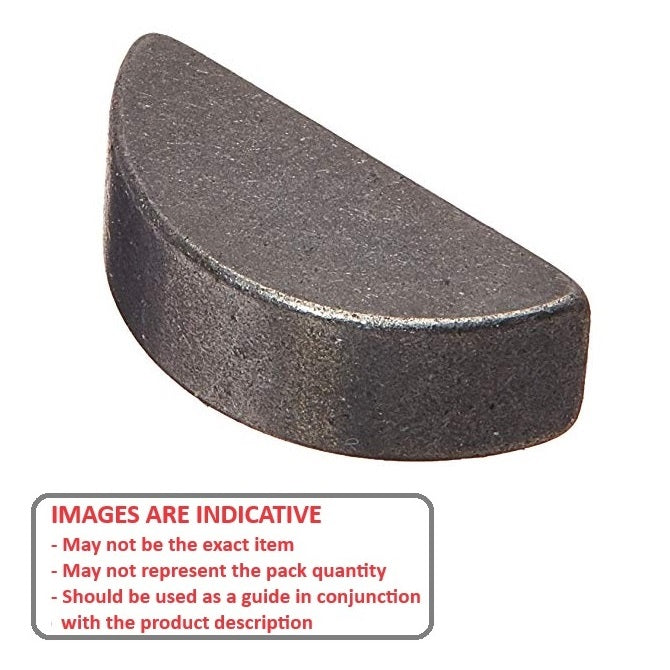

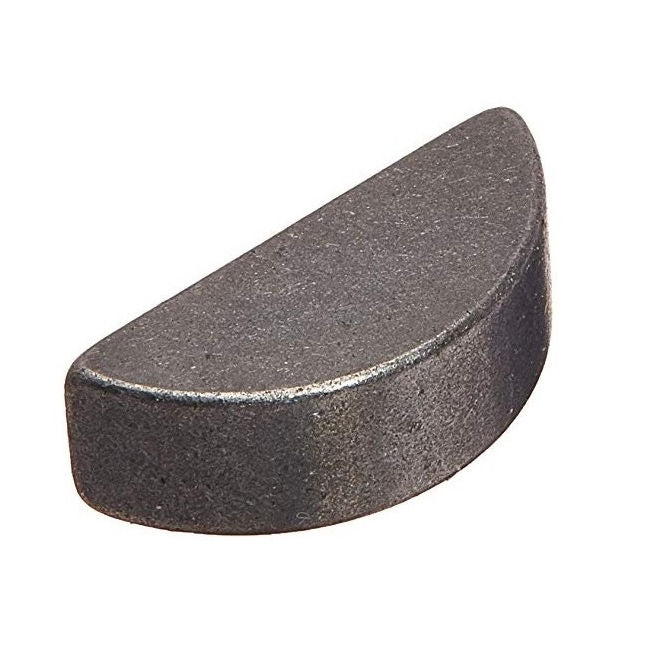

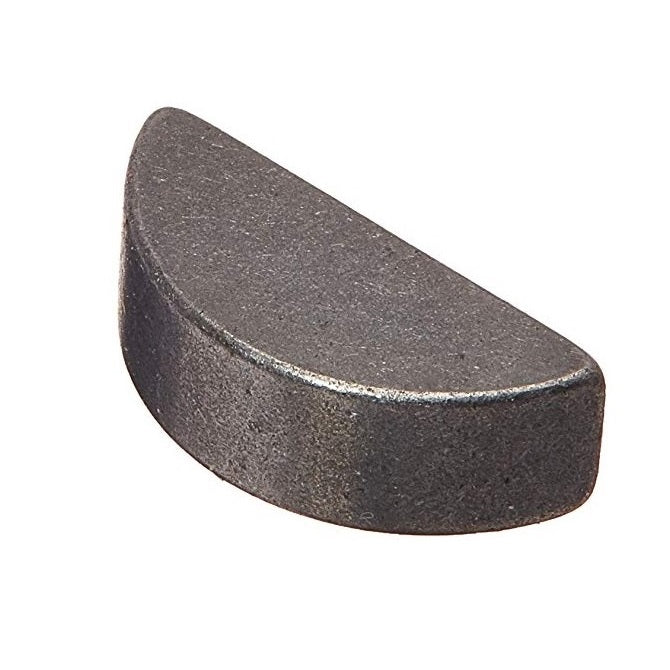

Woodruff Keys - 3.18x4.2x9.25 mm Plain - Carbon Steel C45 Hardened Key
ExaktKey
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportKeysteel Catalogue PDF
Order 50 or more packs of 12 (600 pcs)
for $10.19 AUD per 12 pack
1/8 inch Key - 3.18x4.2x9.25 mm Woodruff Keys - Carbon Steel C45 Hardened - Sold per pack of 12:
Base Category: Keys - Woodruff
Top Level Category: Keys - Woodruff - Plain
Product Details
Additional stock available from USA subject to Prior Sale = 9180

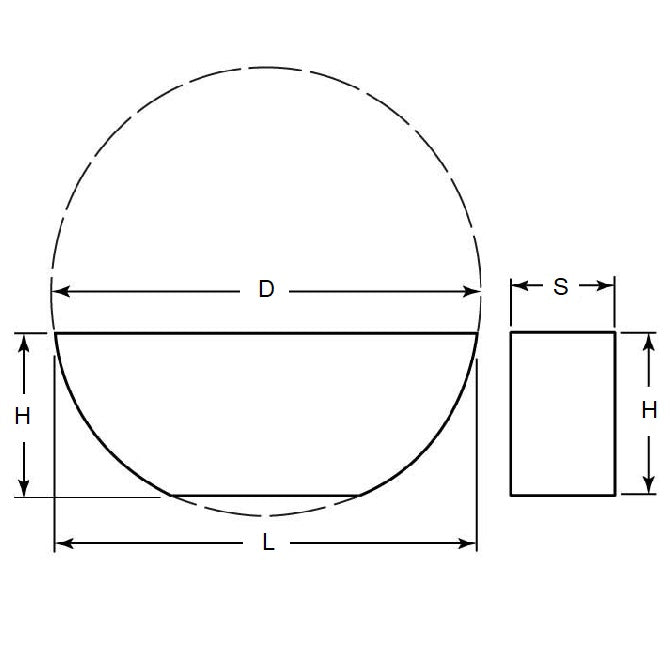

Thickness (S): 3.18mm
+/- 0.025
(3.18mm is 0.125 in.)
Carbon Steel C45 Hardened
- Thickness (S): 3.18mm
+/- 0.025
(3.18mm is 0.125 in.)
- Approx. Height (H): 4.2mm
+/- 0.250
(4.2mm is 0.165 in.)
- Approx. Length (L): 9.25mm
(9.25mm is 0.364 in.)
- Basis Diameter (D): 9.53mm
- Finish: Plain
- Hardness: HRC 40-50
Brand: ExaktKey
Country of Origin: US
Product Compliance and Data
Similar to
- ANSI 403-H
- Key Size 213 Hardened
- Huyett® WKA-213
- KaVo® WKA-213
- NoCor® WKA213
- KW032095CH
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
KW032042093CH, KW032042
