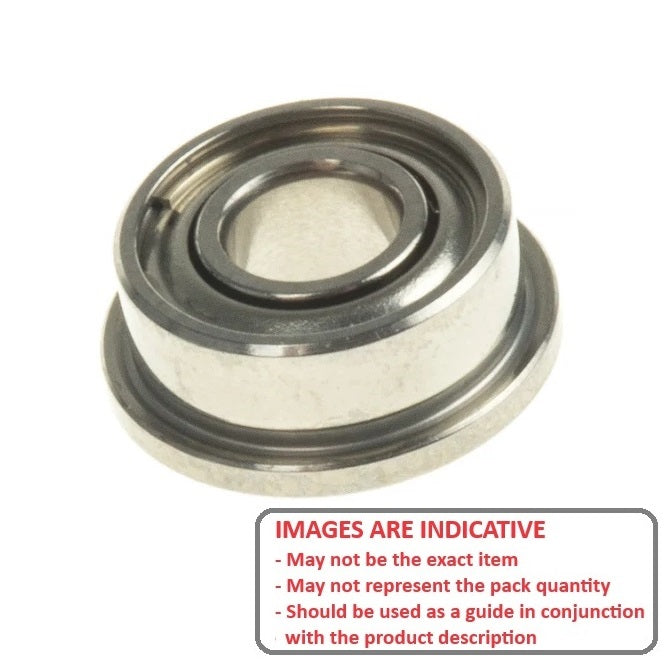

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

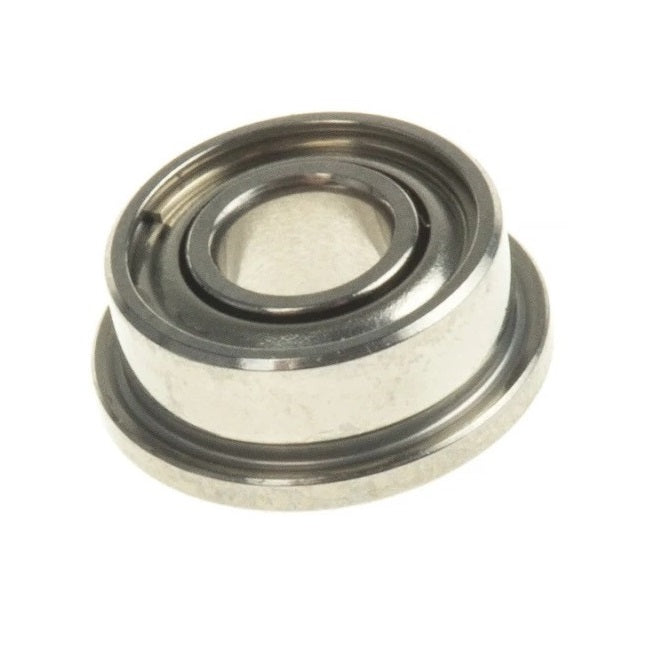

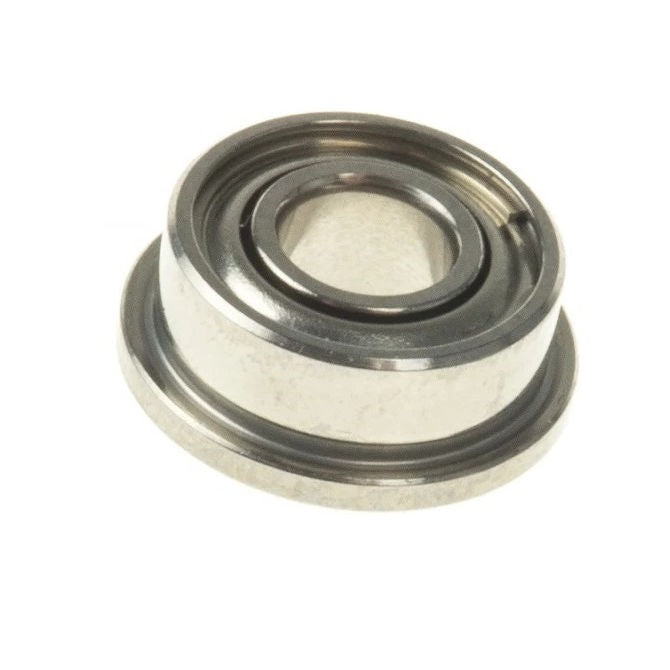

Bearings - 3.175 mm x 6.35 mm x 2.779 mm
SFR144A-ZZS-MC34-GR7-R-DRY

Name: 1049420 | SFR144A-ZZS-MC34-GR7-R-DRY --- Bearings - 3.175 mm x 6.35 mm x 2.779 mm
Brand: MBA
SKU: SFR144AZZSMC34GR7RDRY
Price: 25.00 AUD
Availability: InStock

MBA

Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

Additional resources:
Tolerances
High Precision Bearings Catalogue PDF
Shafting

Price:

$25.00 AUD

~~$47.50 AUD~~ $25.00 AUD

Each
Qty: 19 available now

Similar Items

Only 19 packs may be ordered online. If you need a large quantity, please contact us.

Quantity

Base Category: Bearings - Single Row Ball

Top Level Category: Bearings - Single Row Ball - Flanged - High Precision - Standard

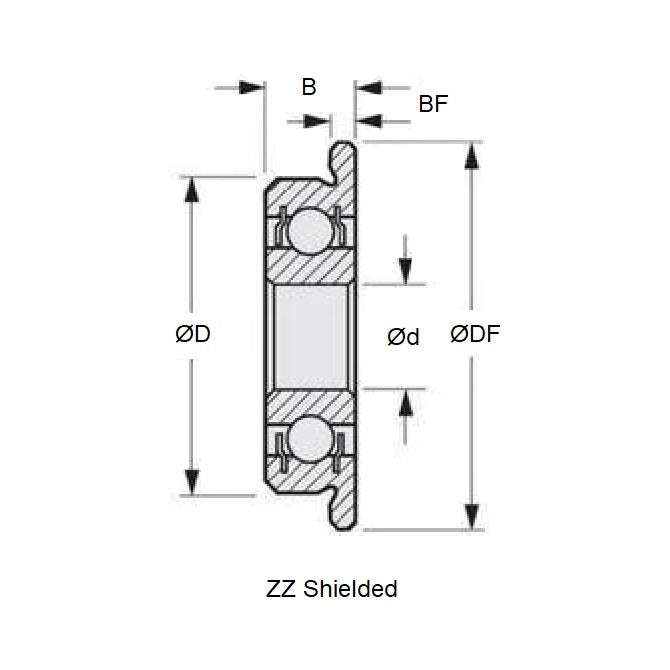

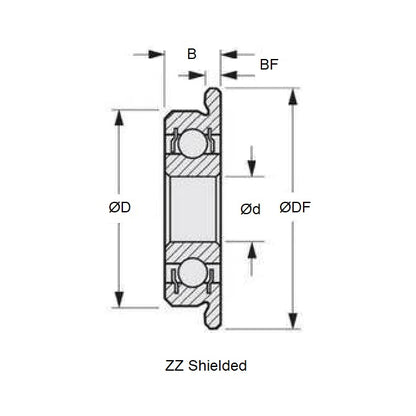

Product Details:

ID (d): 3.175mm
_{+0.000/-0.004}

AIS I 440C Stainless Steel

OD (D): 6.350mm
_{+0.000/-0.005}
Width (B): 2.779mm
_{+0.000/-0.040}
Flange Diameter (DF): 7.518mm
Flange Width (BF): 0.787mm
Precision Grade: Abec 7
Closure Type: ZZS
Bearing Type: Radial Flanged
Lubricant: Dry / No Lubricant

Brand: MBA
Country of Origin: DE

Alternatives: S418FRHH7P24LD, SFR144AZZSC615GR7DRY, SFR144AZZSRGR7MC34DRY, SSF3175-2Z-A7-GPRJ-L299, ULKZ4008X-480-6/15-A7P-DRY, ULKZ4008X-480-A7P-6-15-DRY, ULKZ4008X6/15-48-A7P-6/15-DRY

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
