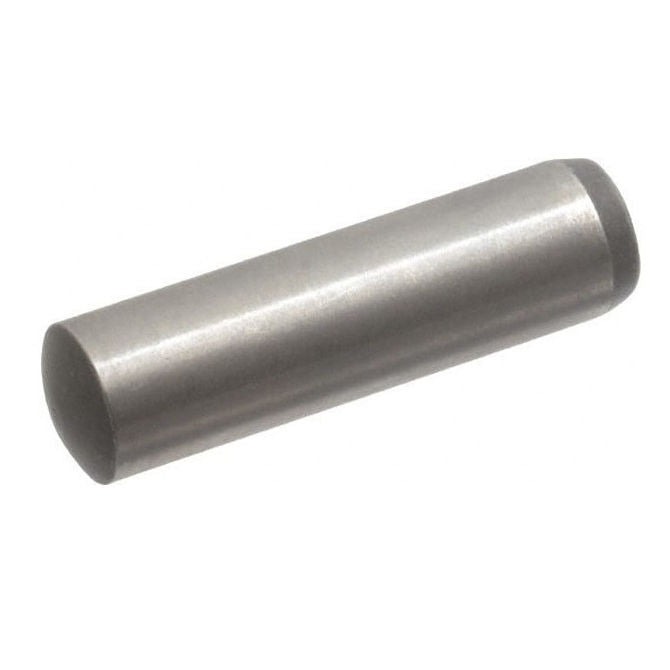

Dowel Pins - 2 mm x 6 mm x 6 mm
DP020-006-CH-1 (100 Pcs)

Name: 1041090 | DP020-006-CH-1 (100 Pcs) --- Dowel Pins - 2 mm x 6 mm x 6 mm
Brand: NoCor
SKU: DP020006CH1
Price: 31.50 AUD
Availability: InStock

NoCor

Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

Price:

$31.50 AUD

per 100
Out Of Stock
Order 50 or more (5000 pcs) for $28.35 AUD per 100

Pre-Order now! Backorders for more than the stock quantity are expected before Feb 20, 2025

Quantity

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 14262

Diameter (D): 2.000mm
_{+ 0.002 / + 0.008}

100Cr6 Steel - Heat Treated and Ground Rc 58-62

Length (L): 6.00mm
_{+/- 0.254}
Overall Length: 6.00mm
_{+/ - 0.254}

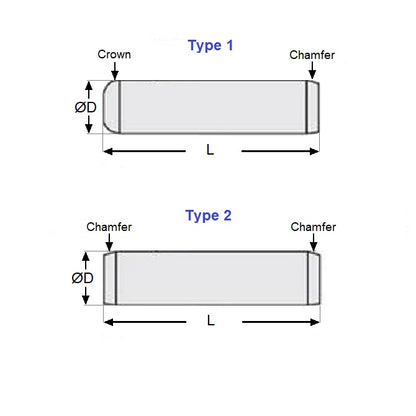

Type: 1 (See diagram)
Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: US

Alternatives: DH2-6, DOWMH-020-006, MD0007MC0020X006, MD6325MQB020X0

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
