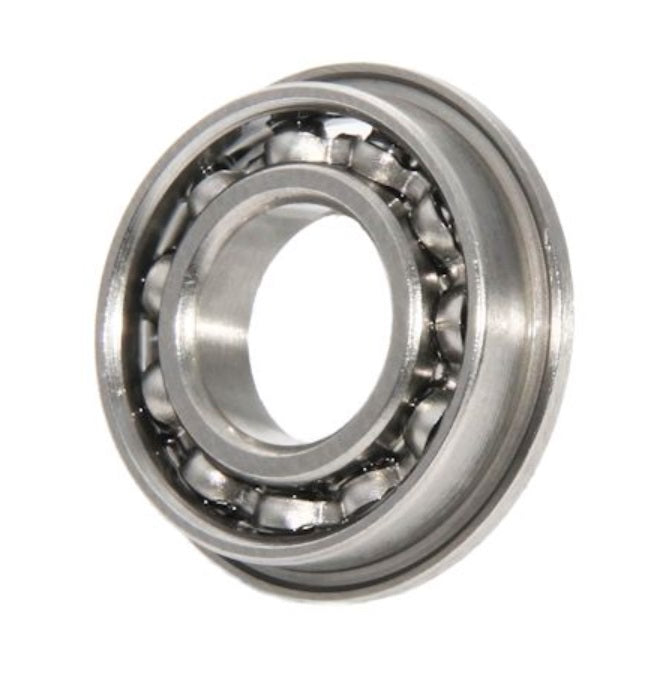

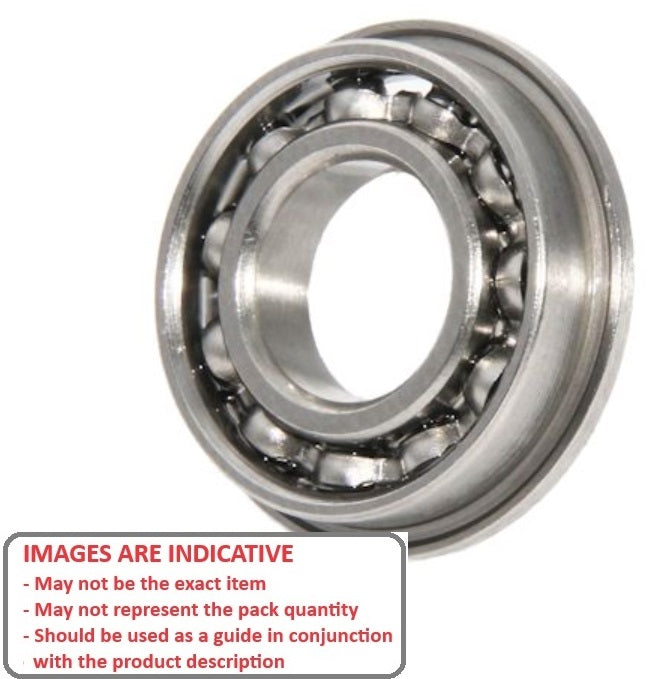

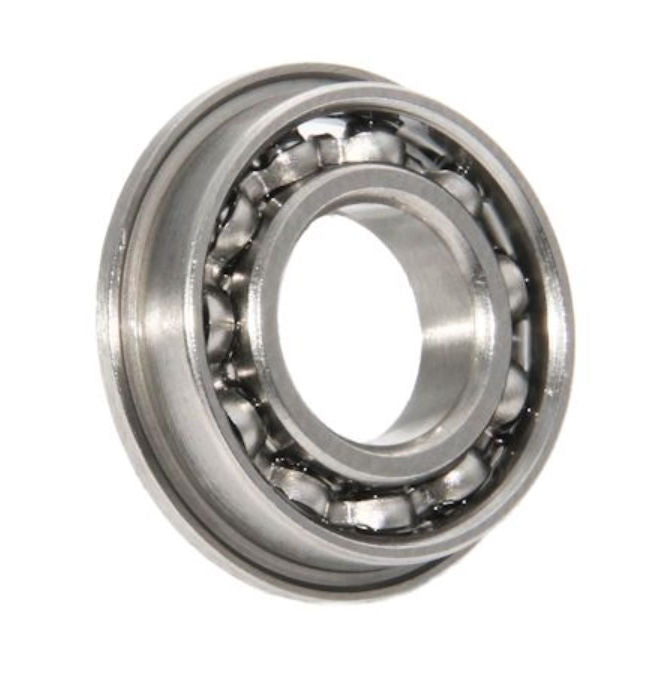

SF682-MC3-AF12 (PK-1200)
Single Row Ball Bearings - 2x5x1.5 mm Flanged - Stainless Steel AISI 440C Bearing
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
Order 50 or more packs of 1200 (60000 pcs)
for $5,587.49 AUD per 1200 pack
2x5x1.5 mm Single Row Ball Bearings - Stainless Steel AISI 440C - Sold per pack of 1200:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Product Details

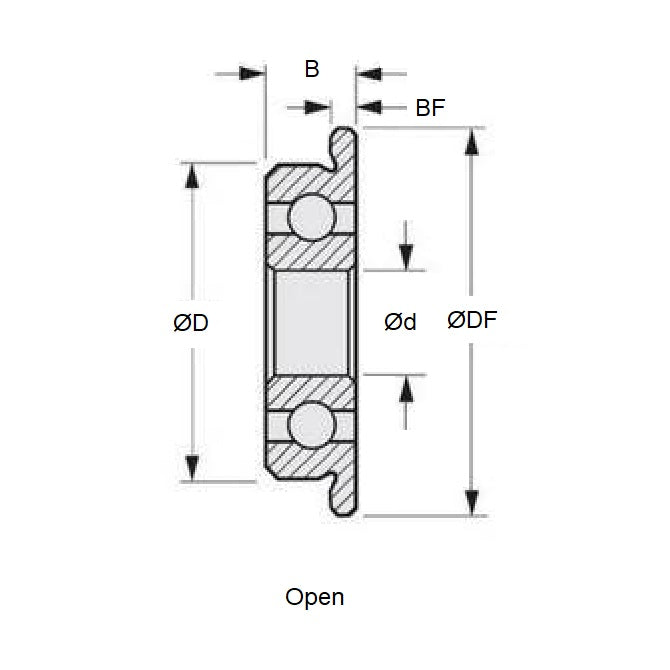

ID (d): 2.000mm+ 0.000 / - 0.0075
(2.000mm is 0.079 in.)
Stainless Steel AISI 440C
- ID (d): 2.000mm
+ 0.000 / - 0.0075
(2.000mm is 0.079 in.)
- O.D. (D): 5.000mm
+ 0.000 / - 0.0075
(5.000mm is 0.197 in.)
- Width (B): 1.500mm
+ 0.000 / - 0.125
(1.500mm is 0.059 in.)
- Flange Diameter (DF): 6.100mm
- Flange Width (BF): 0.500mm
- Precision Grade: Abec 1
- Closure Type: Open
- Bearing Type: Radial Flanged
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- ALTPART
- 57155K414
- Similar Part F682H
- NTN® FLW682
- Similar Part FLW682
- GRW SF682
- Similar Part SF682
- GRW SSF682
- Similar Part SSF682
- MPB SSUL20FC
- MPB SUL20FC
- RMB® ULK205X
- ADR WFBX2
- Similar Part WFBX2
- SSLF520
- SS-LF520
- SS-RF520
- SSRF520
- DD-LF520
- DDLF520
- DDRF520
- DD-RF520
- SF682MC3
- SF682-MC3
- SSF682-MC3
- SSF682MC3
- F682BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SF682MC3AF12, F682
