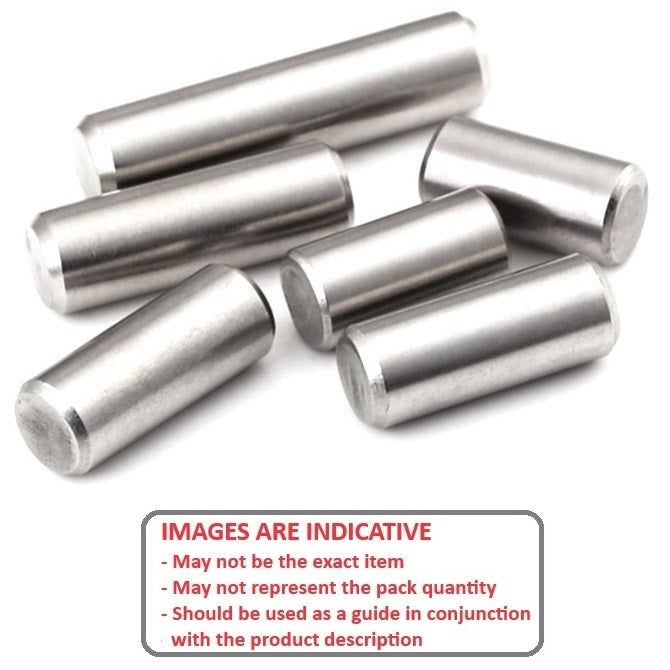

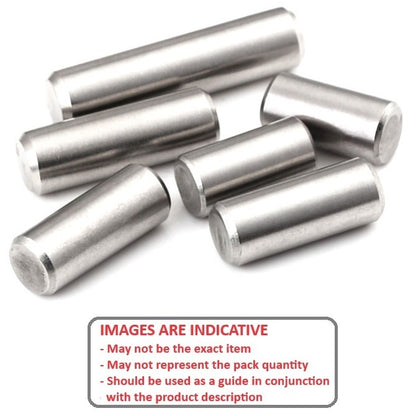

Images are indicative only and may not represent the pack quantity. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 3

MBA

Dowel Pin 2 x 14 mm - Chamfered End Stainless 303 Grade - Modified - NoCor (Pack of 10)

Dowel Pin 2 x 14 mm - Chamfered End Stainless 303 Grade - Modified - NoCor (Pack of 10)

387 packs available now

Regular price $5.41 AUD
Regular price Sale price $5.41 AUD
Sale Sold out
Shipping calculated at checkout.
Price does not include taxes or shipping

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout.

Backorders for more than the stock quantity are expected before Oct 02, 2024

Product Details:

Item is a descriptive link for MBADP0200143032F10

Chamfered End Dowel Pin

Sub Category: Pins - Dowel - Standard - 303-304 Stainless - Chamfered Ends

2 x 14mm

Diameter (D): 2.000mm
+0.002/+0.008

Length (L): 14.00mm
+/-0.350

Overall Length: 14.00mm
+/-0.350

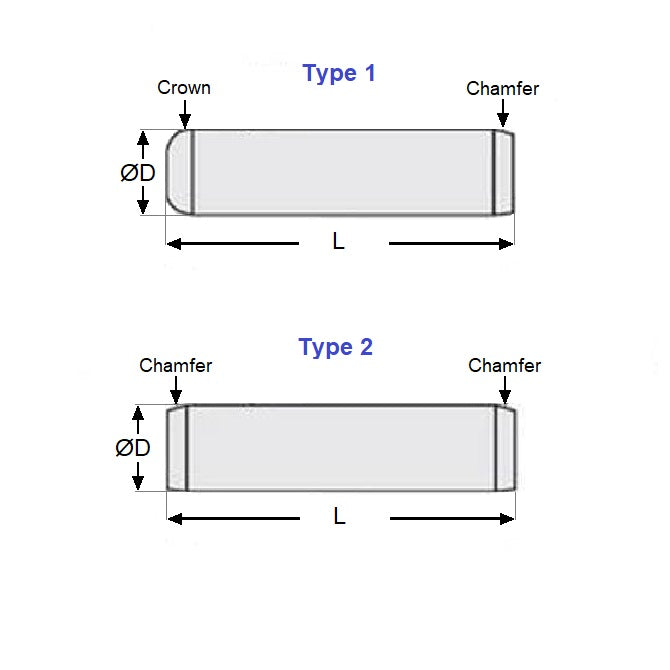

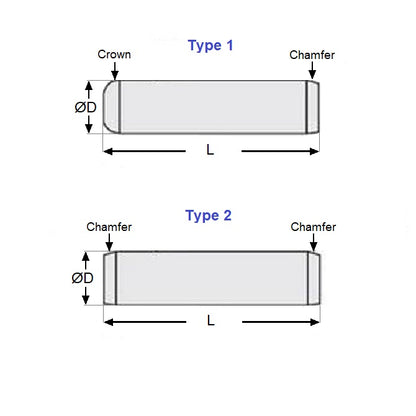

Type: 2 (See note)
Material: 303 Stainless HRB80
Chamfer: 1.00 x 15 Deg
Notes: Special oversized chamfer 1.0 x 15 Deg
Standard: Modified

Brand: NoCor
Country of Origin: Taiwan

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
