Dowel Pins - 2 mm x 14 mm x 14 mm
DP020-014-303-2 (1000 Pcs)
NoCor
Additional resources:Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Out Of Stock
Order 50 or more (50000 pcs) for $553.63 AUD per 1000
Couldn't load pickup availability
Base Category: Pins - Dowel
Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless
Product Details:Diameter (D): 2.000mm
+ 0.002 / + 0.008
Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
- Length (L): 14.00mm
+/- 0.350
- Overall Length: 14.00mm
+/ - 0.350

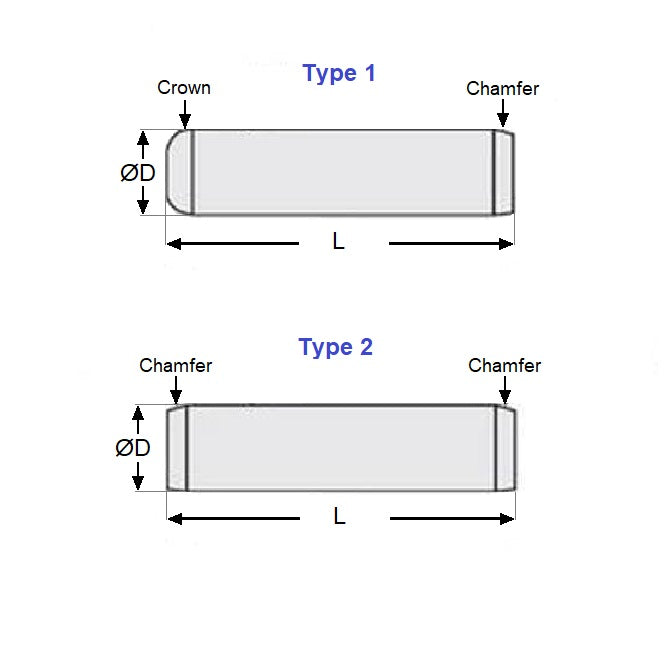

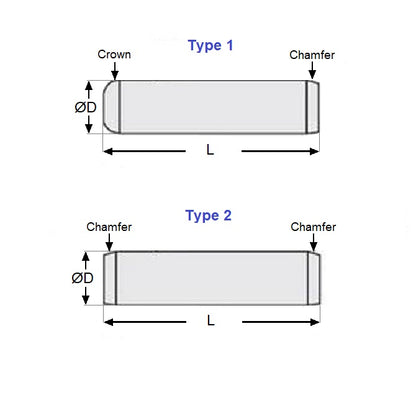

- Type: 2 (See diagram)
- Chamfer: 0.35 x 15 Deg
- Standard: Based on ISO 2338
Brand: NoCor
Country of Origin: TW
Alternatives: DOWMS-020-014
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
