1041348 | DP020-012-303-2 (50 Pcs) --- Dowel Pins - 2 mm x 12 mm x 12 mm

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Product Details:

Diameter (D): 2.000mm
_{+ 0.002 / + 0.008}

303 Stainless HRB80

• Length (L): 12.00mm
  _{+/- 0.350}

• Overall Length: 12.00mm
  _{+/ - 0.350}

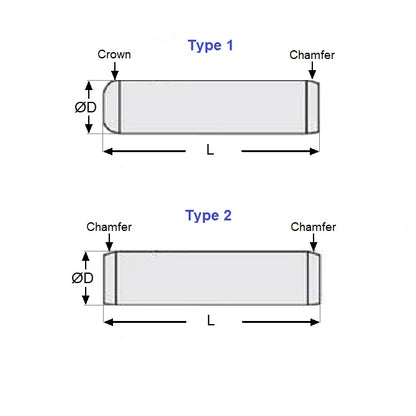

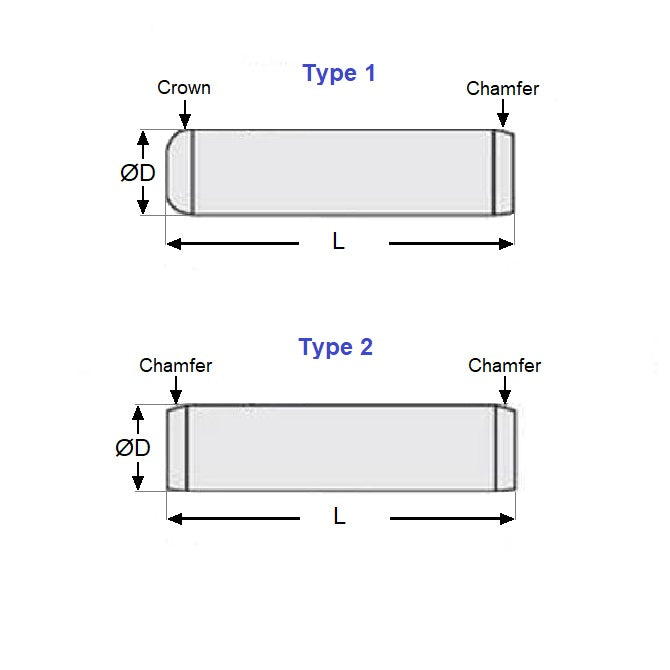

• Type: 2 (See diagram)
• Chamfer: 0.35 x 15 Deg
• Standard: Based on ISO 2338

Brand: NoCor
Country of Origin: IN

Alternatives: DOWMS-020-0
