DP020-010-304-3 (2500 Pcs)

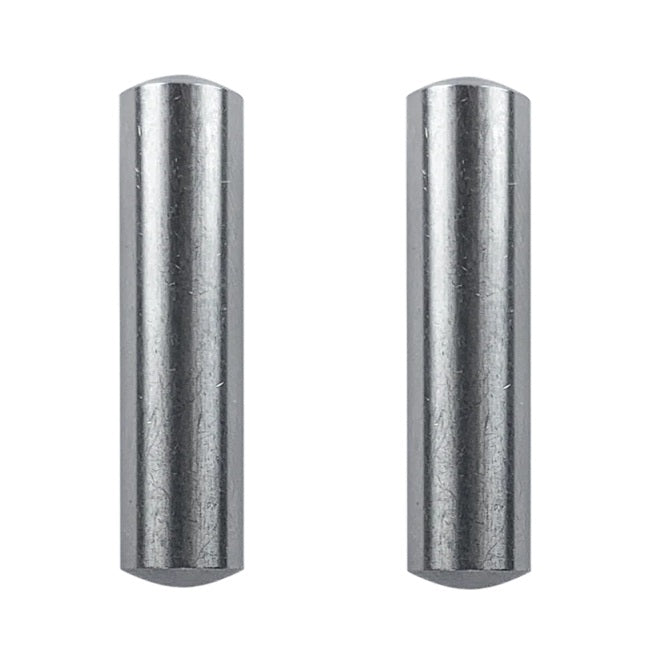

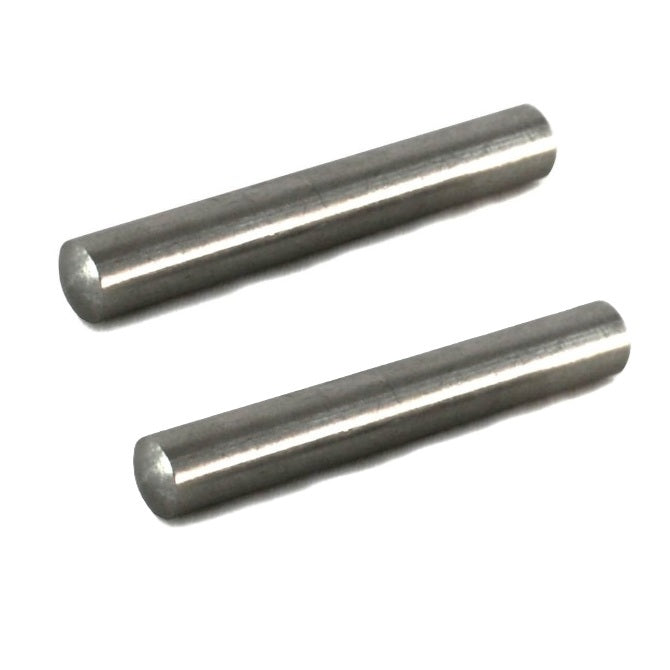

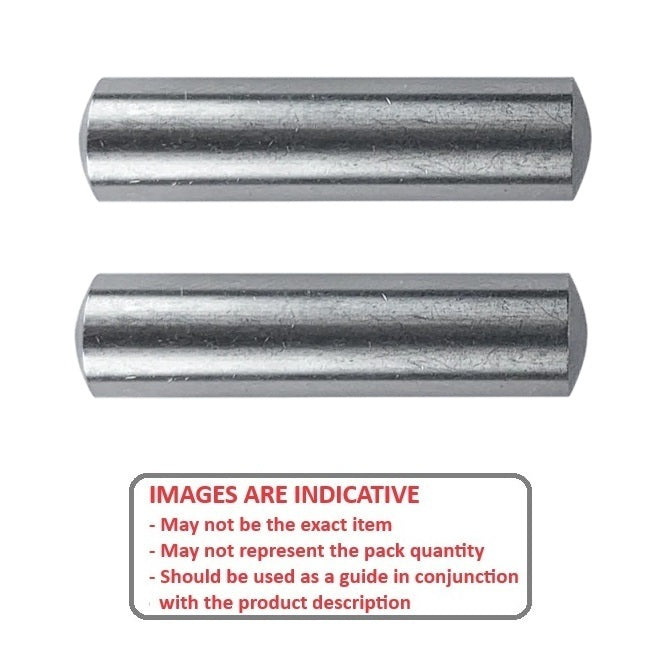

Dowel Pins - 2x10x10.6 mm - Stainless Steel 304 Similar to A2, 18-8 HRB80
NoCor
Additional resources:Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Out Of Stock
Order 50 or more (125000 pcs) for $1,233.37 AUD per 2500
Base Category: Pins - Dowel
Top Level Category: Pins - Dowel - Standard - Rounded Ends - 303-304 Stainless
Product Details:Diameter (D): 2.000mm
+ 0.002 / + 0.008
(2.000mm is 0.079 in.)
Stainless Steel 304 (Similar to A2, 18-8) HRB80
- Length (L): 10.00mm
+/- 0.254
(10.00mm is 0.394 in.)
- Approx. Overall Length: 10.60mm
+/ - 0.350
(10.60mm is 0.417 in.)

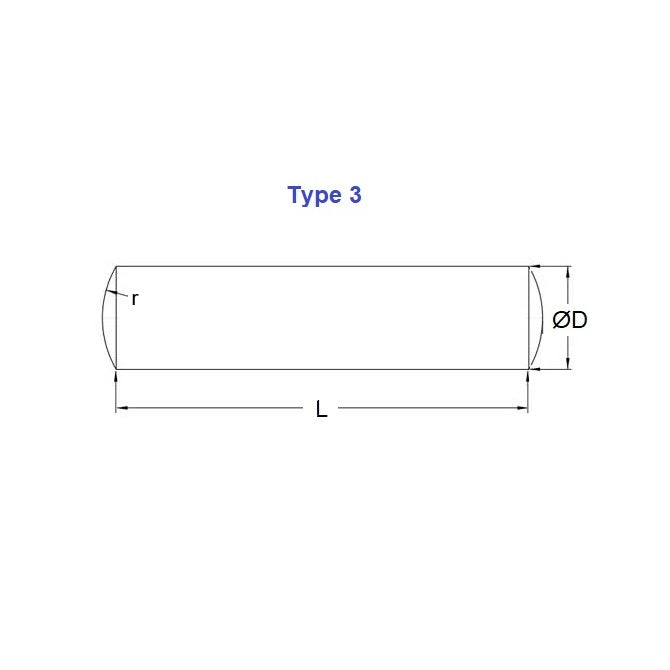

- Type: 3 (Rounded Ends)
- Standard: DIN 7
Brand: NoCor
Country of Origin: TW
Alternative Parts Include: DP0200103043, MD0007MX0020X010, MDWX210, MDWX-2-10, Small Parts
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
