TR-286-306-064-S3 (Each)

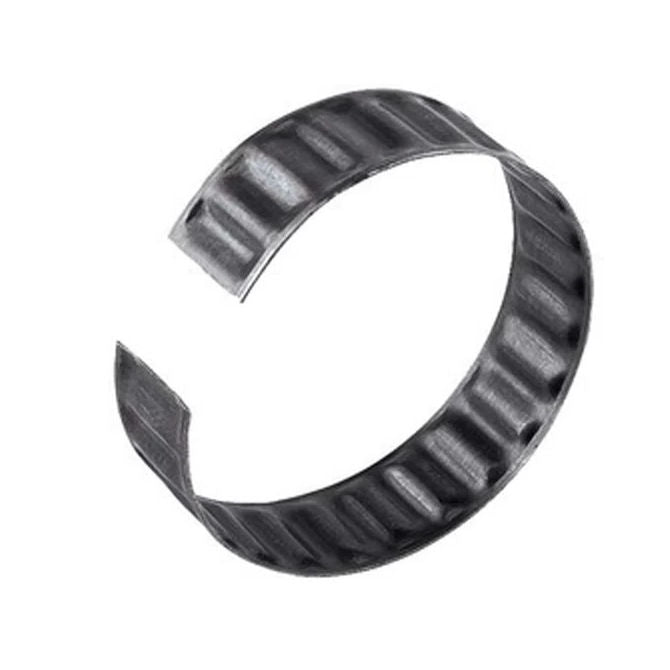

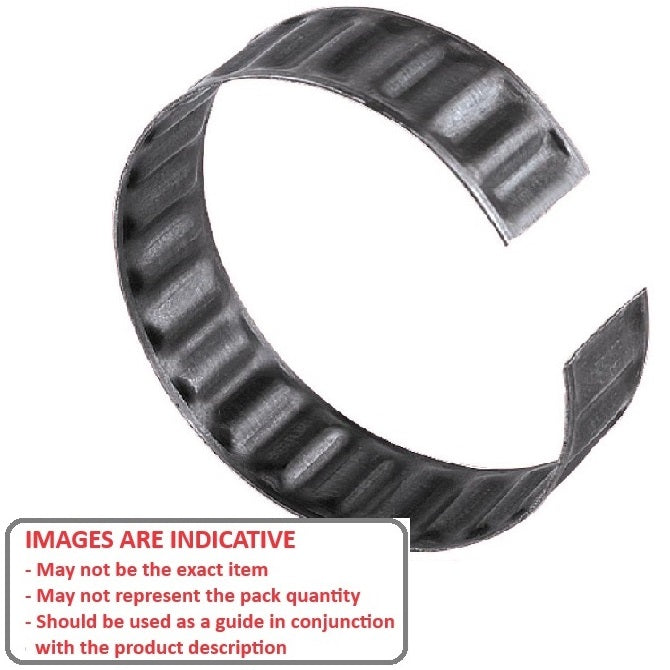

Tolerance Retaining Rings - 28.575 to 28.524 30.556 to 30.455 6.35 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $45.21 AUD Each
Couldn't load pickup availability
28.575 to 28.524 30.556 to 30.455 6.35 mm Tolerance Retaining Rings - Stainless Steel 301 (Similar to A2, 302, 304, 18-8) - Sold per Each:
Base Category: Retaining Rings - Tolerance
Top Level Category: Retaining Rings - Tolerance
Product Details
Inner Part OD (d): 28.575 to 28.524mm(28.575 to 28.524mm is 1.125 in.)
Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
- Inner Part OD (d): 28.575 to 28.524mm
(28.575 to 28.524mm is 1.125 in.)
- Housing ID (D): 30.556 to 30.455mm
(30.556 to 30.455mm is 1.203 in.)
- Ring Width (B): 6.35mm
(6.35mm is 0.25 in.)
- Outer Part ID (DT) mm: 30.277 to 30.175For Torque Transfer
- Max. Design Torque: 19.21N.m
- Style: For bearing OD
- Max. Radial Load: 3203N
- Max. Design Thrust: 1334N
- To Suit OD of Bearing: R8
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 3547K15
- S77RY1112025
- S77RY1-112025
- TR2863060643
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
TR286306064S3, TR286306
