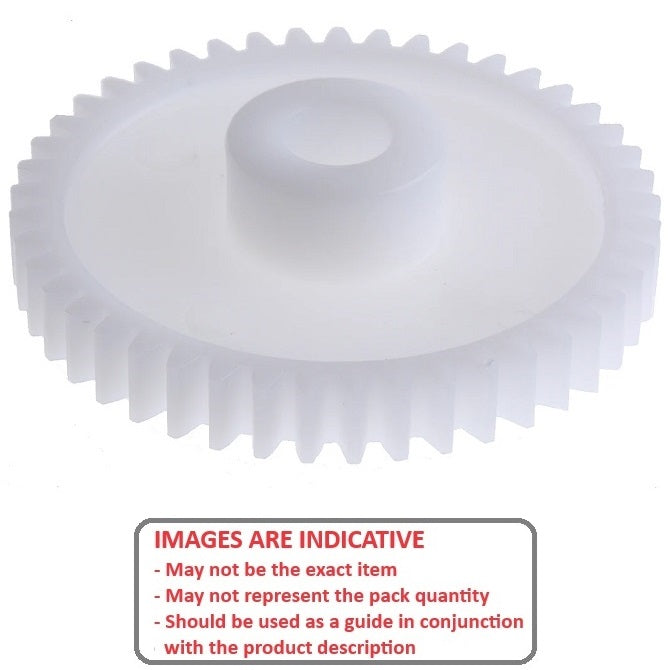

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
Skip to product information
1 of 3

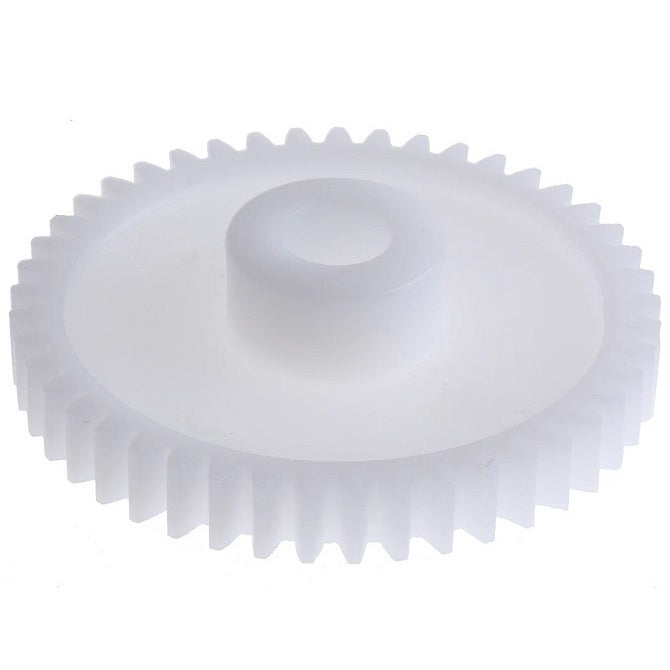

Gears - 28 Teeth x 14.81 mm x 3.97 mm
G015B-28-D48-032-040-A-P

MBA

Additional resources:
48DP Gear Racks
Price:
Regular price $7.05 AUD
Regular price Sale price $7.05 AUD
Each
Out Of Stock
Order 50 or more for $6.35 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before Jan 25, 2025

Base Category: Gears - Spur

Top Level Category: Gears - Spur - 48DP - 20 Degree - Plastic - Standard

Product Details:

Teeth: 28Nr.
Acetal

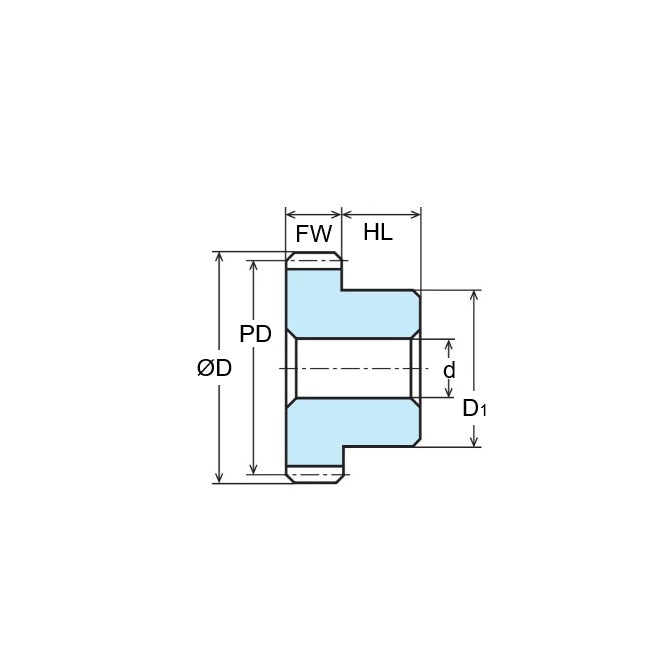

  • Pitch Circle Diameter (PD): 14.81mm
  • Bore (d): 3.970mm
  • Outside Diameter (OD): 15.857mm
  • Face Width (FW): 3.18mm
  • Pitch: 48DP
  • Hub Diameter (D1): 12.30mm
  • Hub Projection (HL): 6.35mm
  • Locking Method: Pin Hub - No Set Screw
  • Pressure Angle: 20Deg.
  • Quality: Commercial - Moulded

Brand: MBA
Country of Origin: JP

Alternatives: A1M2-Y48028, GD-4828

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
