Circlips - 27 mm x 1.2 mm x 28.4 mm
CCI-02700-S15 (5 Pcs)

Name: 1137782 | CCI-02700-S15 (5 Pcs) --- Circlips - 27 mm x 1.2 mm x 28.4 mm
Brand: MBA
SKU: CCI02700S15
Price: 19.86 AUD
Availability: InStock

MBA

Category: Circlips - Internal - Standard - Stainless Steel

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Circlip Tools

Price:

$19.86 AUD

per 5
Out Of Stock
Order 50 or more (250 pcs) for $17.87 AUD per 5

Similar Items

Pre-Order now! Backorders for more than the stock quantity are expected before Jan 03, 2025

Quantity

Base Category: Circlips - Internal

Top Level Category: Circlips - Internal - Standard - Stainless Steel

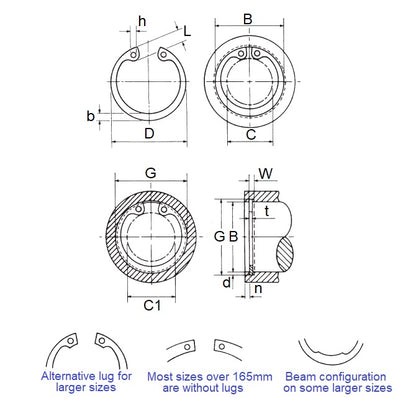

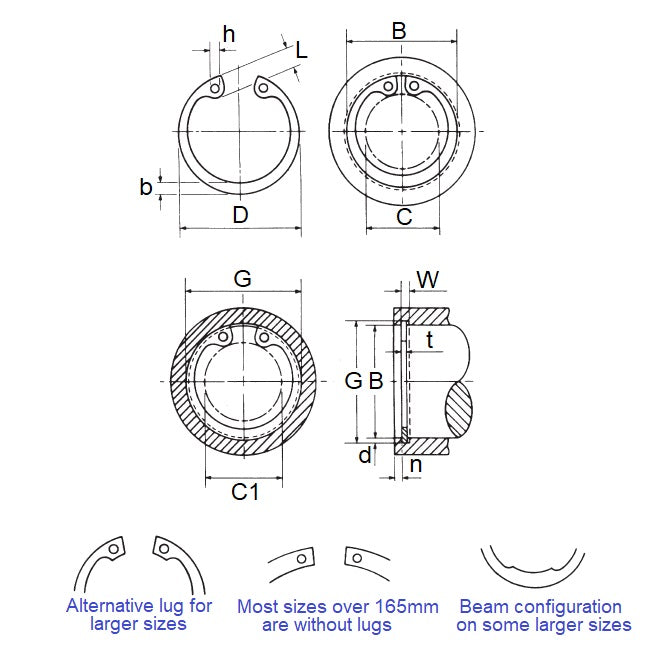

Product Details:

Additional stock available from USA subject to Prior Sale = 789

Housing Bore (B): 27.00mm
Stainless PH15-7 Mo

Clip Thickness (T): 1.20mm
_+0.21/-0.00
Groove Dia. (G): 28.40mm
_+0.00/-0.06
Free Outside Dia (D): 29.10mm
_+0.50/-0.25
Min. Extension (n): 2.10mm
Groove Width (W): 1.30mm
_+0.10/-0.00
Clearance in Bore (C): 17.10mm
Clearance in Groove (C1): 19.00mm
Min. Lug Diameter (h): 2.00mm
Standard: DIN472

Brand: MBA
Country of Origin: US

Alternatives: 1300-0270KSF, D1300-0270KSF, DHO-027-SS, J27X1.2-411

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
