CCI-02700-C-V (2 Pcs)

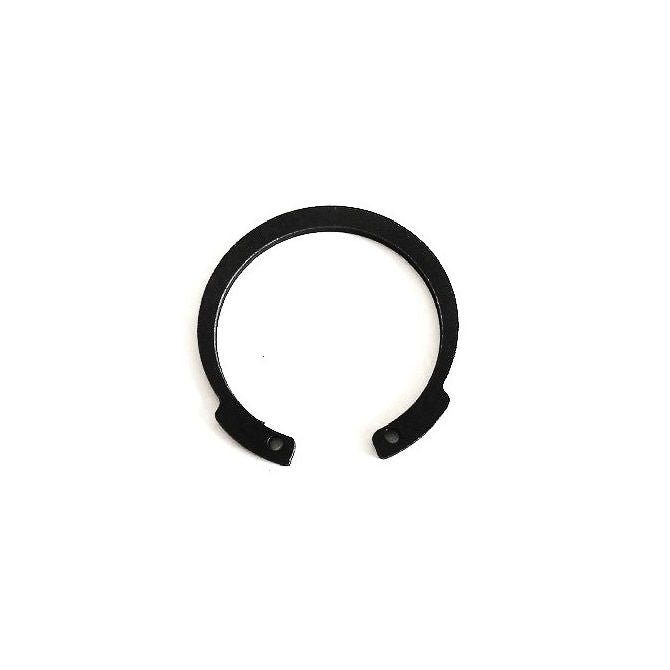

Internal Retaining Rings - 27x1.2x28.4 mm - Carbon Steel

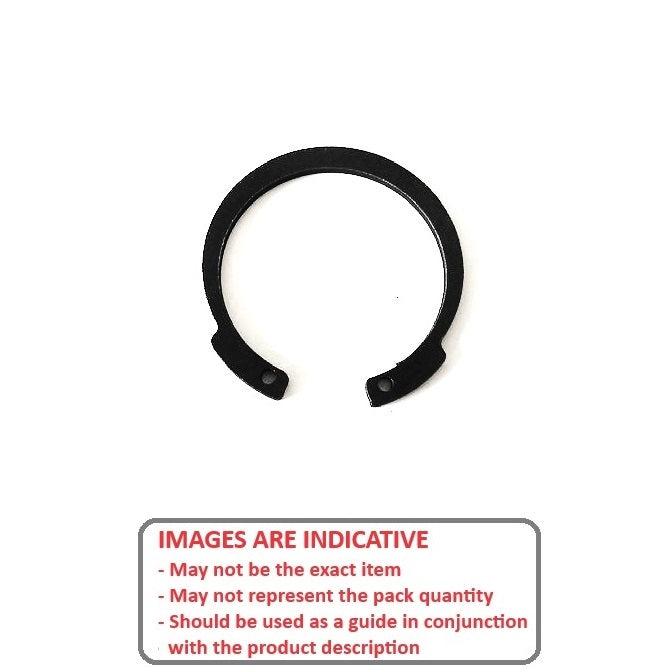

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Anderton Cross Reference PDF
Circlips PDF Catalogue
Assortment Kits
Price:
$0.95 AUD
$2.62 AUD $0.95 AUD
per 2
Qty: 18 available now (36 pcs)
Only 18 packs may be ordered online. If you need a large quantity, please contact us.

Couldn't load pickup availability

Base Category: Retaining Rings - Internal

Top Level Category: Retaining Rings - Internal - Circlips - Inverted

Product Details:

Housing Bore (B): 27.00mm
(27.00mm is 1.063 in.)

Carbon Steel
  • Clip Thickness (T): 1.20mm
    + 0.21 / - 0.00
    (1.20mm is 0.047 in.)
  • Groove Dia. (Dg): 28.40mm
    + 0.00 / - 0.06
    (28.40mm is 1.118 in.)
  • Approx. Loose Circlip OD (Dr): 29.10mm
    + 0.42 / - 0.21
  • Radial Wall Max (S): 2.9 - 3.1
  • Groove Width (W): 1.30mm
  • Tool: PRS-I011

Brand: MBA
Country of Origin: US

Alternative Parts Include: MDHOI027, MDHOI-028, MDHOI028, MDHOI-027, BN830-028, BN830028, BN830027, BN830-027, M1308027, M1308-027, M13080270APP, M1308-0270APP, M1308028, M1308-028, INTV-027, INTV-028, INTV028, INTV027, JV027, JV-028, JV028, JV-027, Bossard, Ellison, Seeger, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
