ES-2540-0699-16-M

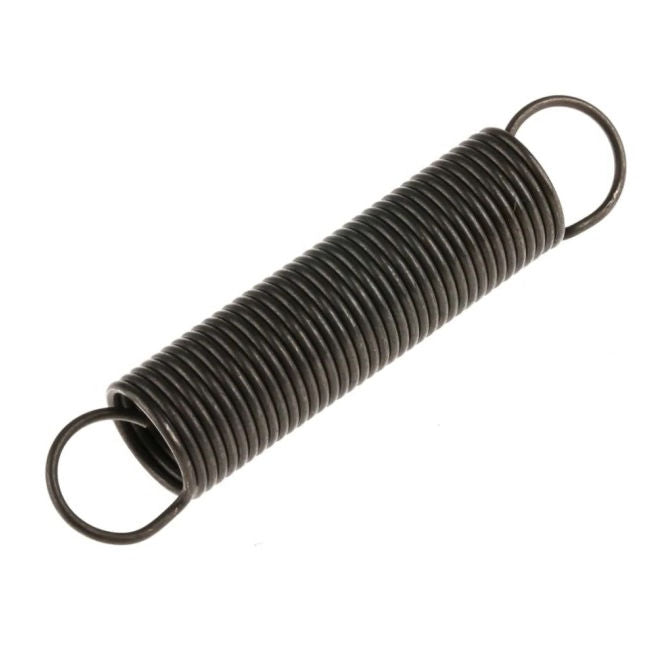

Extension Springs - 25.4x69.9x1.6 mm - Steel

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Additional resources:
Spings Catalogue PDF
Assortment Kits
Spring Anchors
Price:
$13.95 AUD
$27.47 AUD $13.95 AUD
Each
Backorder
Order 50 or more for $12.56 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Aug 14, 2025

Base Category: Springs - Extension

Top Level Category: Springs - Extension - Music Wire

Product Details:

OD (D0): 25.40mm
(25.40mm is 1 in.)

Steel
  • Overall Length (L0): 69.9mm
    (69.9mm is 2.752 in.)
  • Wire Diameter (d): 1.60mm
    (1.60mm is 0.063 in.)
  • Max. Extension (L1): 187.960mm
  • Spring Rate: 0.333N/mm
  • Initial Tension (IT): 4.0N
  • Load at L1: 43.150N
  • End Type: Closed - Full Loop

Brand: MBA
Country of Origin: AU

Alternative Parts Include: E10000632750, E1000-063-2750, ASI

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
