TLM-3119RS

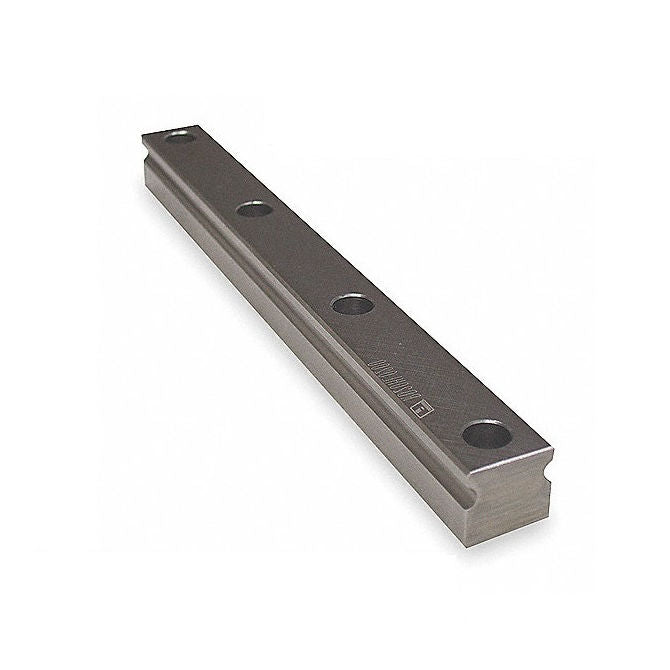

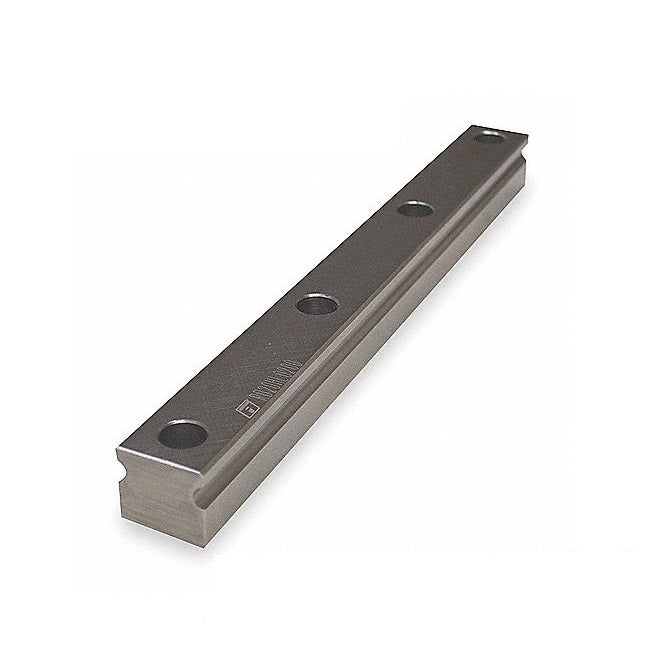

Rail Systems Type 3 Rails Linear - Size Reference 25 - 23x220 mm

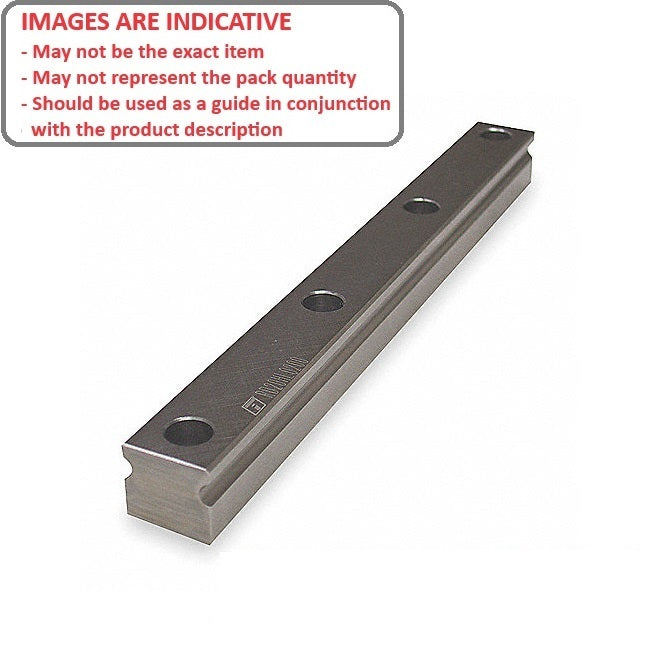

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export
Price:
$311.77 AUD
$374.13 AUD $311.77 AUD
Each
Backorder
Order 50 or more for $280.59 AUD Each
Backorder now! Backorders for more than the stock quantity are expected before Sep 12, 2025

Base Category: Linear - Rail Systems Type 3 Rails

Top Level Category: Linear - Rail Systems Type 3 Rails

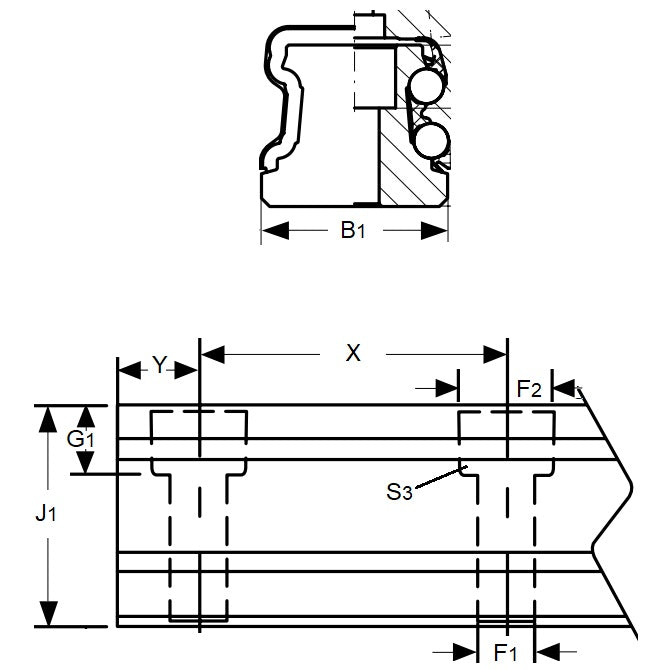

Product Details

Size Reference: 25
  • Width (B1): 23.000mm
    (23.000mm is 0.906 in.)
  • Length: 220mm
    (220mm is 8.661 in.)
  • Height (J1): 22.700mm
  • F1: 7.000mm
  • F2: 11.000mm
  • G1: 8.000mm
  • Screw Size (S3): M6
  • Hole Spacing (X): 60.000mm
  • Hole Spacing from End (Y): 20.000mm

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

  • Thompson 521H25A+220

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
