P-XL-024-095FF-AL-GN-127 (Each)

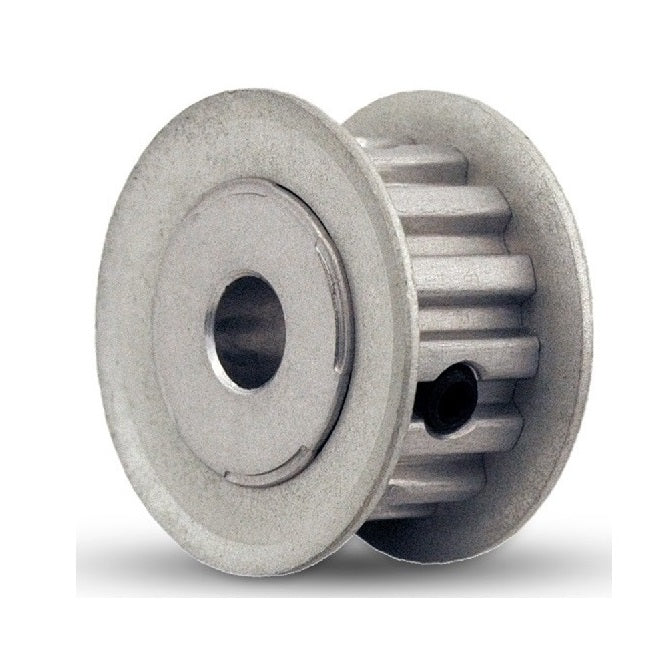

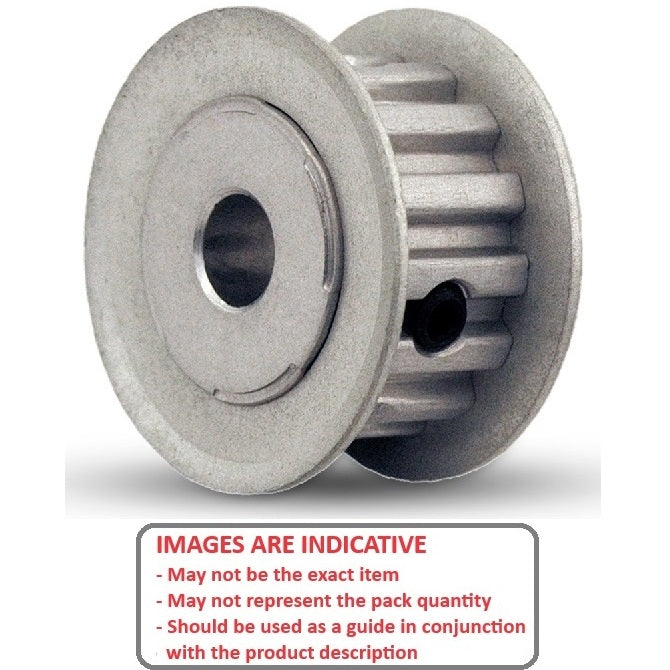

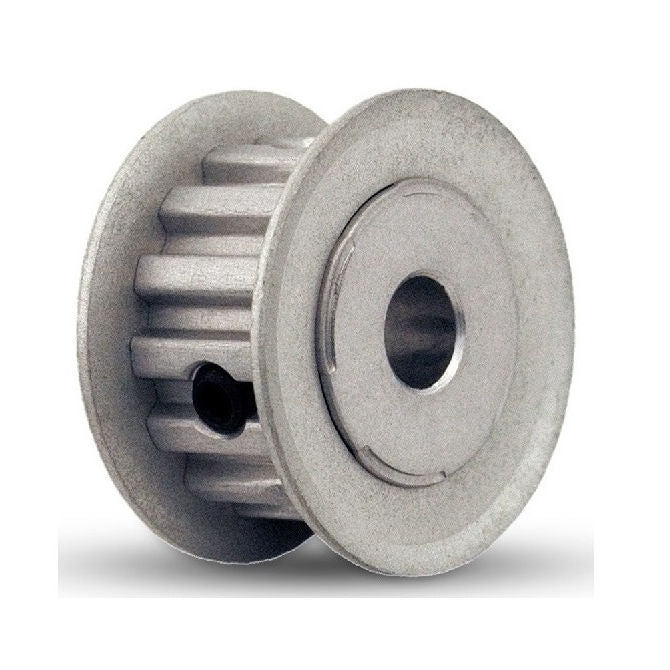

Inch Timing Pulleys - 24 tooth - 9.5x12.7 mm 5.080mm Pitch XL - Aluminium Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Timing Pulleys Catalogue PDF
XL Timing Belts
Order 50 or more
for $38.75 AUD Each
24 tooth - 9.5x12.7 mm Inch Timing Pulleys - Aluminium - Sold per Each:
Base Category: Pulleys - Inch Timing
Top Level Category: Pulleys - Inch Timing - 5.080mm Pitch XL - 9.5mm Wide - Metallic

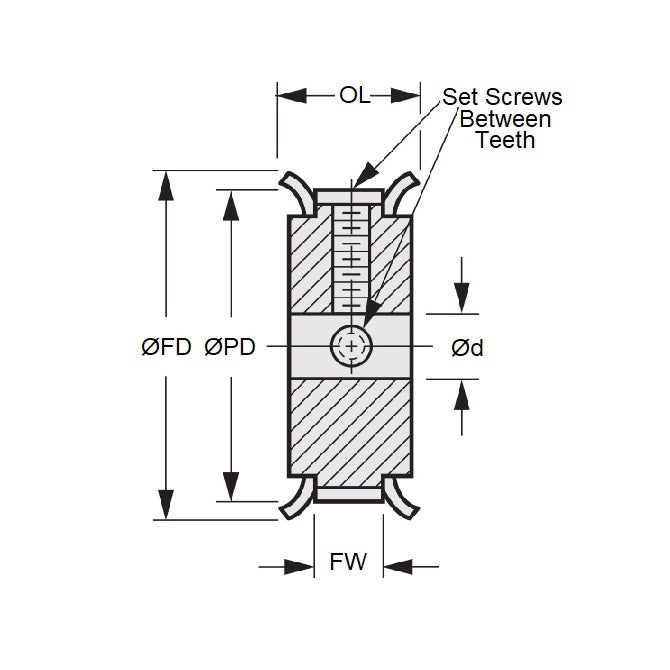

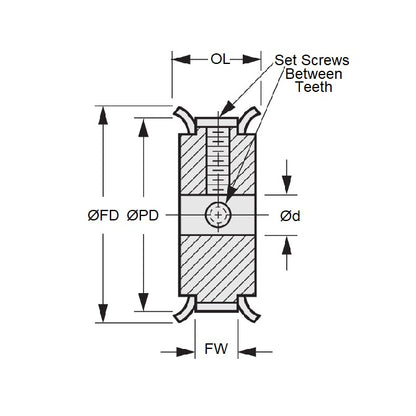

Product Details
Number of Teeth: 24Aluminium
- Number of Teeth: 24
- Max Belt Width: 9.50mm
(9.50mm is 0.374 in.)
- Bore (d): 12.700mm
(12.700mm is 0.5 in.)
- Bore Type: Finished
- Type: Double Flanged - Hubless
- Pitch Dia. (PD): 38.79mm
- Flange Diameter (FD): 44.5mm
- Overall Length (OL): 14.3mm
- Hub Diameter (HD): No Hub
- Locking Type: Set Screw Between Teeth
Brand: MBA
Country of Origin: IN
Product Compliance and Data
Similar to
- ALTPART
- 1277N765
- Gates® 24XL037-3FA6
- 24XL0373FA6
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PXL024095FFALGN127, PXL024
