W0240-T-032-035-W3-C (Each)

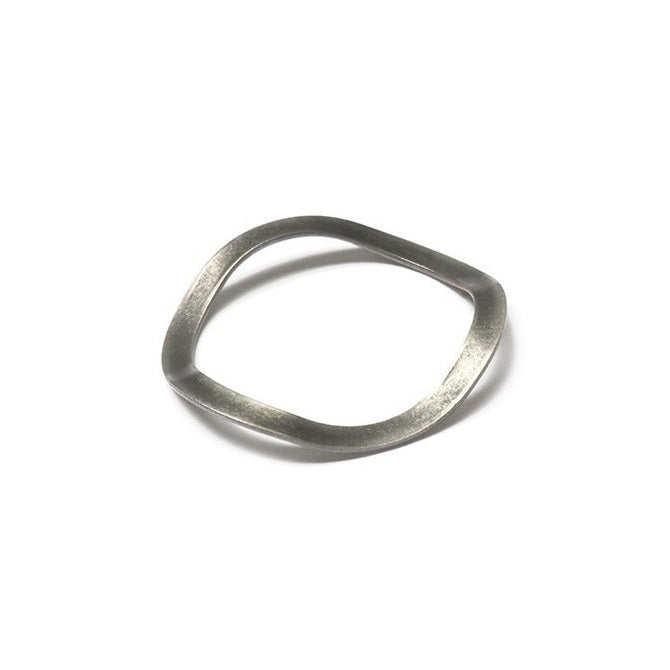

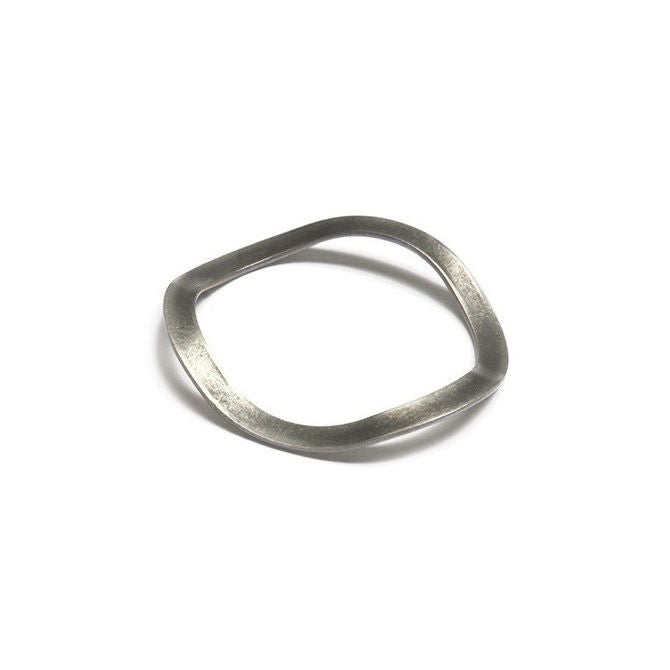

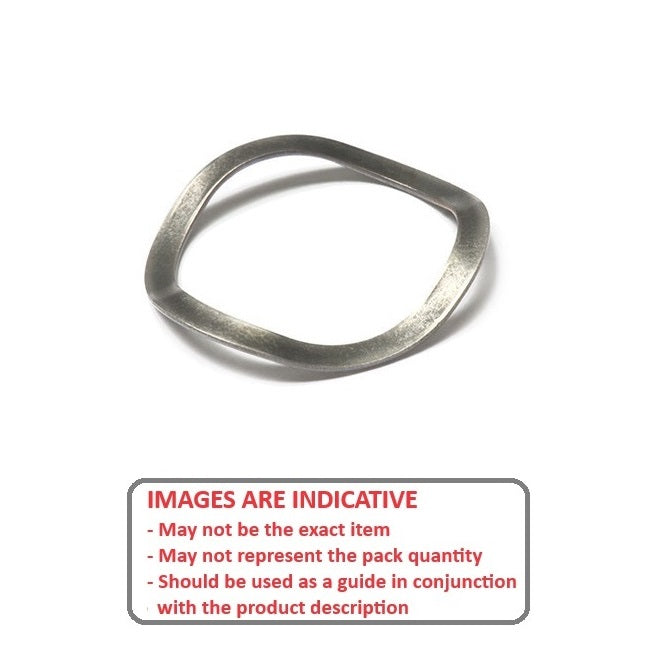

Spring Washers - 24x32x3.5 mm Wave - Carbon Spring Steel Self Finish Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportAssortment Kits
Screws
Order 50 or more
for $1.35 AUD Each
Couldn't load pickup availability
24x32x3.5 mm Spring Washers - Carbon Spring Steel Self Finish - Sold per Each:
Base Category: Washers - Spring
Top Level Category: Washers - Spring - Wave - Carbon Steel
Product Details

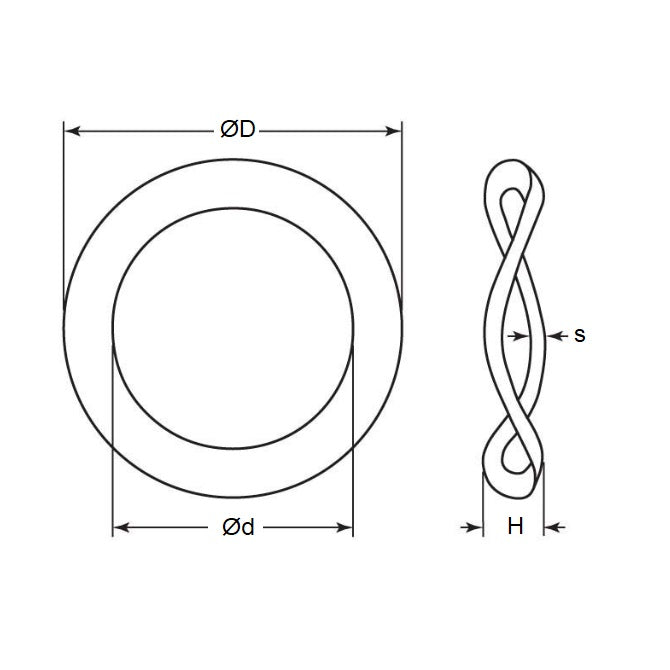

Nominal Inside Diameter (d): 24.00mm+ 0.3 / + 0.7
(24.00mm is 0.945 in.)
Carbon Spring Steel Self Finish
- Nominal Inside Diameter (d): 24.00mm
+ 0.3 / + 0.7
(24.00mm is 0.945 in.)
- Nominal Outside Diameter (D): 32.00mm
- 0.3 / - 0.7
(32.00mm is 1.26 in.)
- Nom. Height (H): 3.50mm
(3.50mm is 0.138 in.)
- Thickness (s): 0.30mm
- Info: Suits OD of 6002, and 6201 bearing (Equiv EPL025)
- Type: 3 Wave
- Nominal Screw Size: M24, 15/16
- Actual ID (Ref): 25.5mm
- Load at Height: 6.1 N at 1.5 mmRef.
Brand: MBA
Country of Origin: GB
Product Compliance and Data
Similar to
- ExaktKey® EPL025
- NoCor® EPL025
- Springmaster EPL025
- XOSpring® EPL025
- EPL25
- W0250T032030HW3C
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0240T032035W3C, W0240T032
