MSF-048F-CBCRP (Each)
Levelling Socket Mounts - 10-32 UNF - 4.76mm - 19.1x16.8 mm Swivel - Steel Mount
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $16.73 AUD Each
10-32 UNF (4.76mm) 19.1x16.8 mm Levelling Socket Mounts - Steel - Sold per Each:
Base Category: Mounts - Levelling Socket
Top Level Category: Mounts - Levelling Socket - Swivel - Black Chromate - Rubber Padded

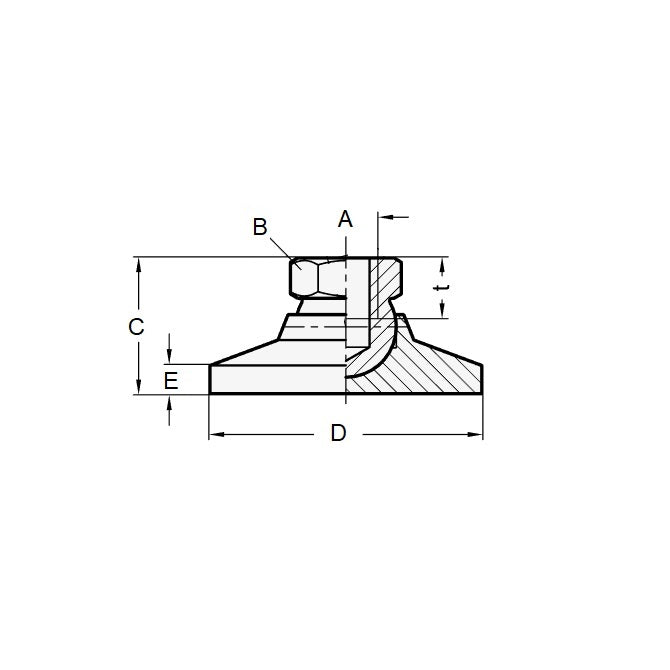

Product Details
Thread Size (A): 10-32 UNF (4.76mm)Steel
- Thread Size (A): 10-32 UNF (4.76mm)
- Base Diameter (D): 19.1mm
(19.1mm is 0.752 in.)
- Foot Height (C): 16.8mm
(16.8mm is 0.661 in.)
- Min. Thread Depth: 4.3mm
- Base Height (E): 6.10mm
- Load Rating: 240Kg
- Finish: Black Chromate
- Pad Thickness: 3.2mm
- Pad Material: Elastomer
- Hex Flats (B): 9.53mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® LEBK-5
- LEBK5
- MSF0240048FBR
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
MSF048FCBCRP, MSF048F
