G019B-024-V32-048-079-CG (Each)
Spur Gears - 24 tooth - 19.05x7.938 mm Hubbed - Steel 0.20 carbon steel with no subsequent treatment Gear
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:32DP Gear Racks
Order 50 or more
for $146.09 AUD Each
24 tooth - 19.05x7.938 mm Spur Gears - Steel 0.20 carbon steel with no subsequent treatment - Sold per Each:
Base Category: Gears - Spur
Top Level Category: Gears - Spur - Hubbed - 32DP - 14.5 Degree - Steel

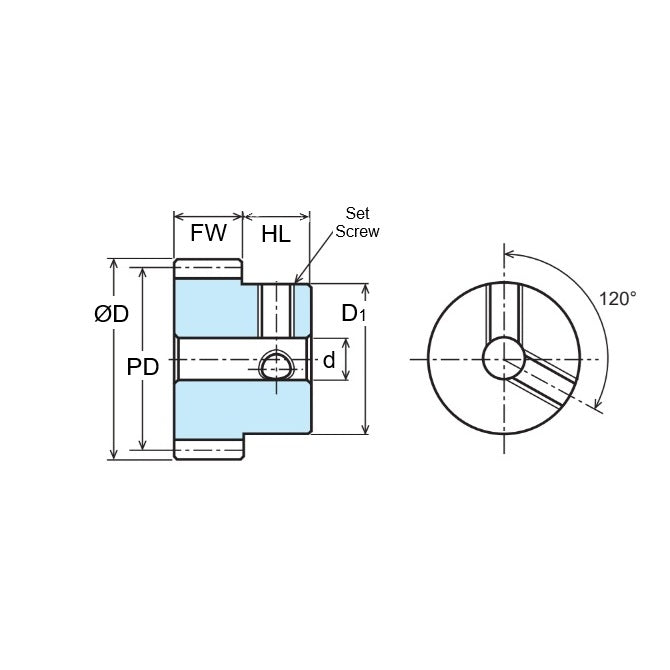

Product Details
Number of Teeth: 24Steel 0.20 carbon steel with no subsequent treatment
- Number of Teeth: 24
- Pitch Circle Diameter (PD): 19.050mm
(19.050mm is 0.75 in.)
- Bore (d): 7.938mm
(7.938mm is 0.313 in.)
- Outside Diameter (OD): 20.625mm
- Face Width (FW): 4.775mm
- Type: Hubbed
- Hub Diameter (D1): 16.256mm
- Hub Projection (HL): 7.874mm
- Locking Method: Set Screw
- Quality: Commercial
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- G019B24V32048079CG
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
G019B024V32048079CG, G019B024V32
