G019B-024-D32-032-064-S3 (Each)

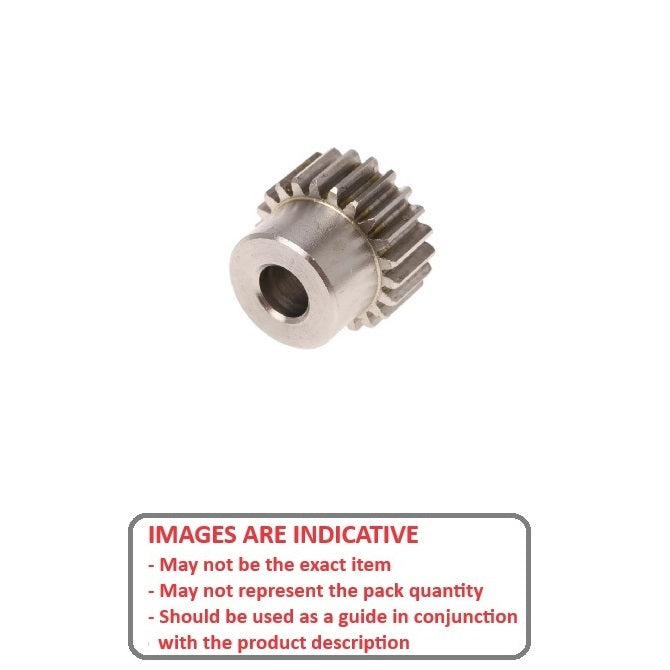

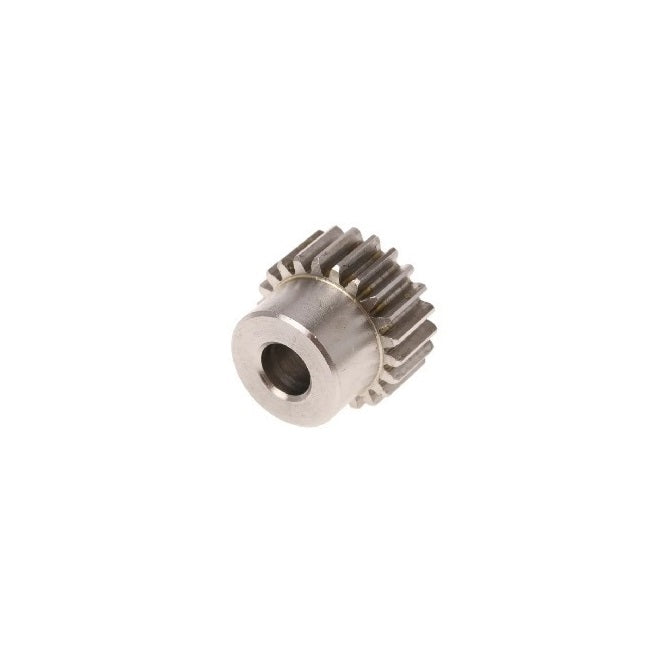

Spur Gears - 24 tooth - 19.05x6.35 mm Hubbed - Stainless Steel 303/304 Similar to A2, 18-8 HRB80 Gear
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:24DP Gear Racks
Order 50 or more
for $41.61 AUD Each
24 tooth - 19.05x6.35 mm Spur Gears - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80 - Sold per Each:
Base Category: Gears - Spur
Top Level Category: Gears - Spur - Hubbed - 24DP - 20 Degree - Stainless
Product Details
Number of Teeth: 24Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

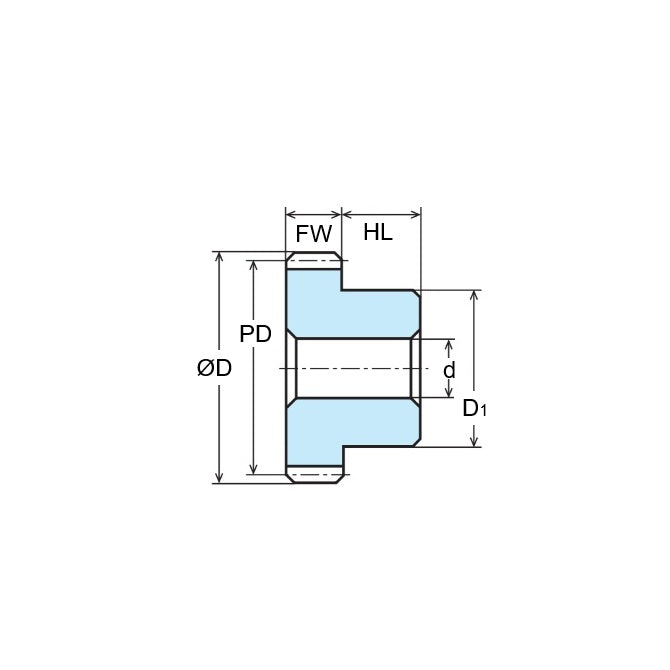

- Number of Teeth: 24
- Pitch Circle Diameter (PD): 19.050mm
(19.050mm is 0.75 in.)
- Bore (d): 6.350mm
(6.350mm is 0.25 in.)
- Outside Diameter (OD): 20.65mm
- Face Width (FW): 4.78mm
- Type: Hubbed
- Locking Method: Pin Hub - No Set Screw
- Quality: AGMA Q10
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- G019P024D32032064S3
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
G019B024D32032064S3, G019B024D32
