W0120-D-023-015-S17 (PK-50)

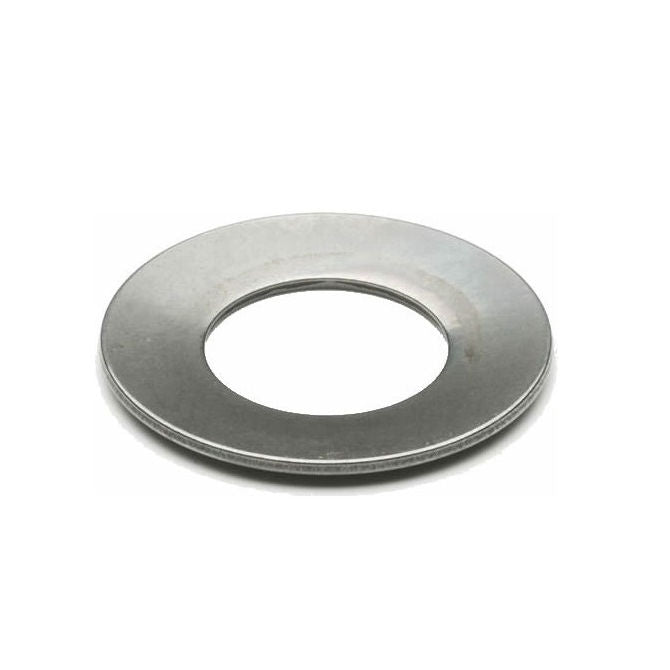

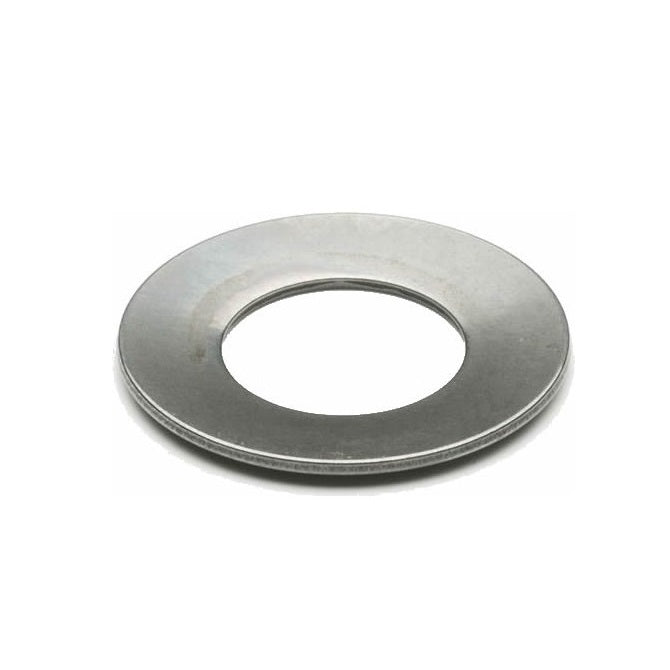

Disc Spring Washers - 23x12x1.5 mm Standard - Stainless Steel 17-7 PH Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Disc Spring Washers PDF
Screws
Order 50 or more packs of 50 (2500 pcs)
for $140.77 AUD per 50 pack
29/32 inch Washer - 23x12x1.5 mm Disc Spring Washers - Stainless Steel 17-7 PH - Sold per pack of 50:
Base Category: Washers - Disc Spring
Top Level Category: Washers - Disc Spring - Standard - Stainless Steel
Product Details

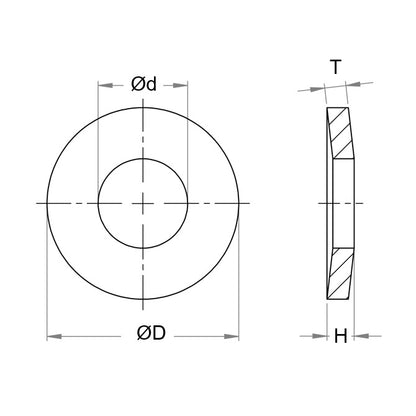

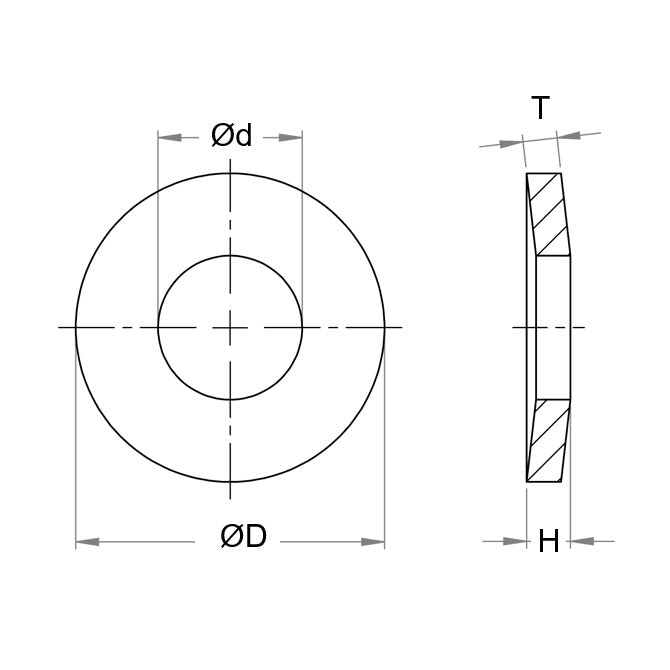

Nominal Outside Diameter (A): 23.00mm(23.00mm is 0.906 in.)
Stainless Steel 17-7 PH
- Nominal Outside Diameter (A): 23.00mm
(23.00mm is 0.906 in.)
- Nominal Inside Diameter (B): 12.00mm
+ 0.20 / - 0.00
(12.00mm is 0.472 in.)
- Stock Thickness (C): 1.50mm
(1.50mm is 0.059 in.)
- Loaded Height (L1): 1.63mm
- Load at L1: 330.0kg
- Free Height (E): 2.00mm
- Actual ID (Ref): 12.2mm
- Inside Height (D): 0.50mm
Brand: MBA
Country of Origin: AU
Product Compliance and Data
Similar to
- WASCA DS231215SS
- S4282SS
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0120D023015S17, W0120D023
