IDR-2342X1229X0635-UR (Each)

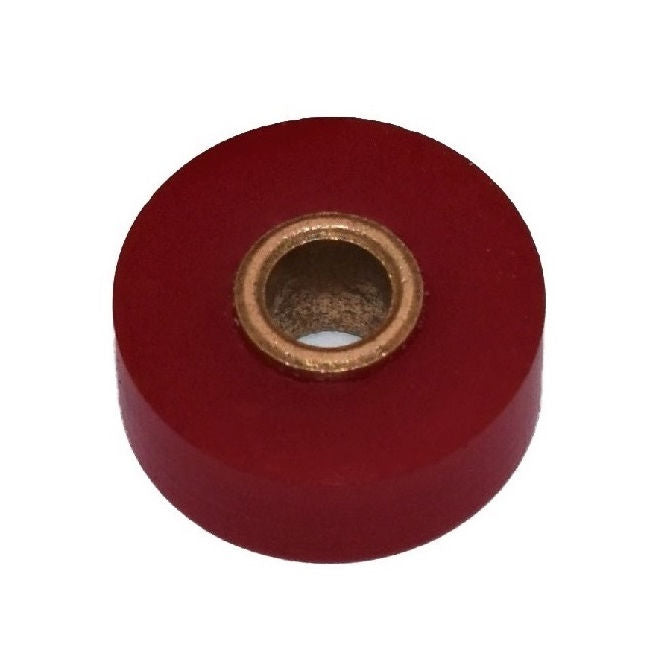

Idler with Bearing Rollers - 23.42x6.35x12.29 mm Urethane With Plain Sintered Bearing - Aluminium Alloy Roller
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportCouldn't load pickup availability
23.42x6.35x12.29 mm Idler with Bearing Rollers - Aluminium Alloy - Sold per Each:
Base Category: Rollers - Idler with Bearing
Top Level Category: Rollers - Idler with Bearing - Urethane With Plain Sintered Bearing
Product Details
Deleted Item. Available while stocks last.

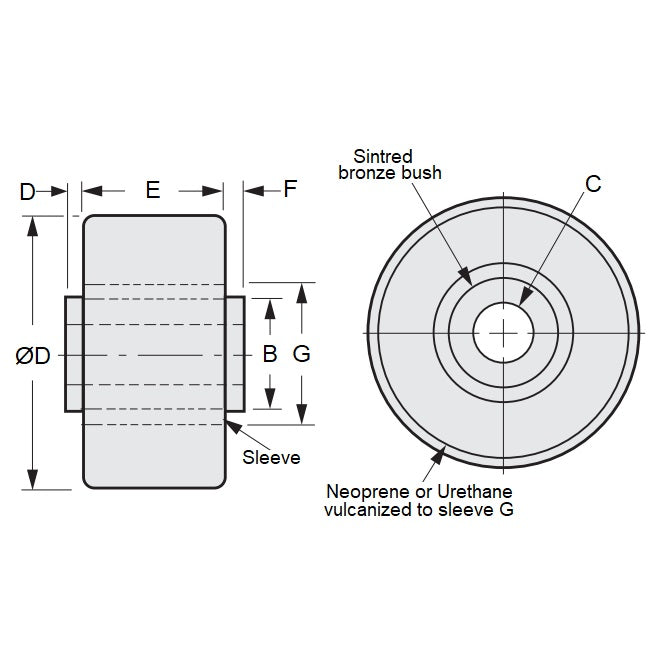

Outside Diameter (A): 23.42mm
(23.42mm is 0.922 in.)
Aluminium Alloy
- Outside Diameter (A): 23.42mm
(23.42mm is 0.922 in.)
- Bore (d): 6.350mm
(6.350mm is 0.25 in.)
- Roller Width (B): 12.29mm
(12.29mm is 0.484 in.)
- Sleeve ID (d1): 9.525
- Roller Material: Urethane Surface
- Roller Hardness: 60 Durometer
- Bearing Type: Sintered Bronze Bearing
- Bearing Projection ( D / F ): 0.41 / 2.38mm
- Sleeve OD (G): 17.46mm
Brand: MBA
Country of Origin: US
Please contact us if you would like a price and delivery for a larger quantity than the available stock.
Product Compliance and Data
Similar to
- A 7Z 5-UR0925
- A7Z5UR0925
- A7Z5-UR0925
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
IDR2342x1229x0635UR, IDR2342X1229X0635
