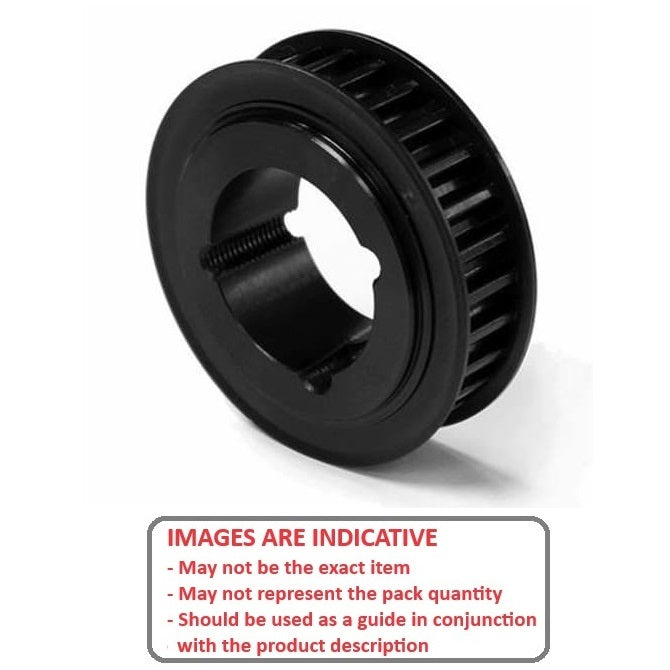

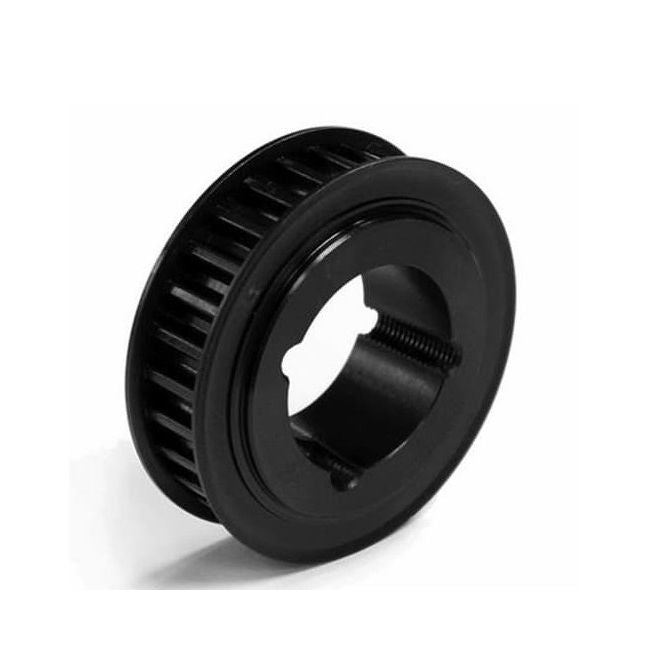

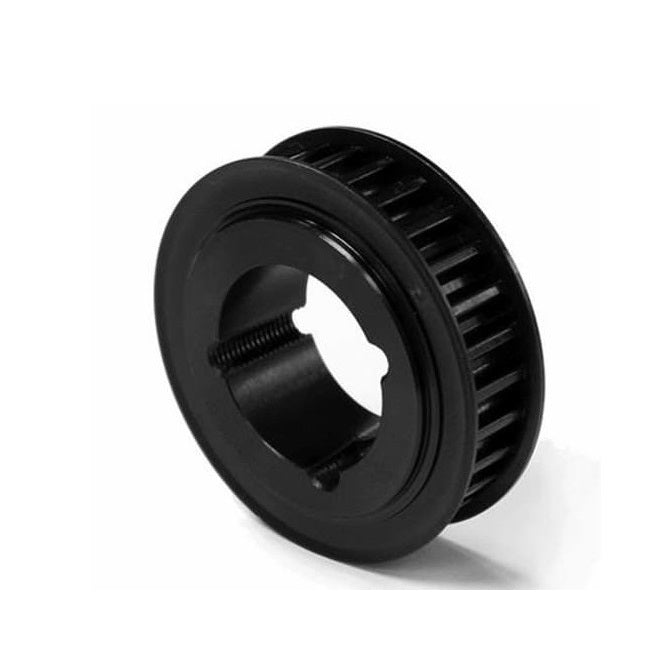

P-H-022-381FF-CB-T1615 (Each)
Inch Timing Pulleys - 22 tooth - 38.1 mm - Determined by Taperlock 12.700mm Pitch H - Cast Iron Pulley
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Timing Pulleys Catalogue PDF
H Section Timing Belts
Order 50 or more
for $161.15 AUD Each
22 tooth - 38.1 mm - Determined by Taperlock Inch Timing Pulleys - Cast Iron - Sold per Each:
Base Category: Pulleys - Inch Timing
Top Level Category: Pulleys - Inch Timing - 12.700mm Pitch H - 38.1mm Wide - Taperlock
Product Details
Number of Teeth: 22Cast Iron
- Number of Teeth: 22
- Max Belt Width (W): 38.10mm
(38.10mm is 1.5 in.)
- Bore (d): Determined by Taperlock
- Bore Type: Suits Taperlock 1615
- Type: 2

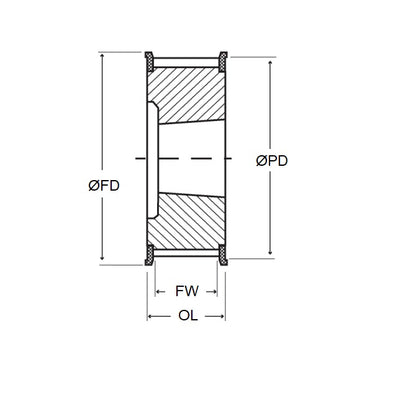

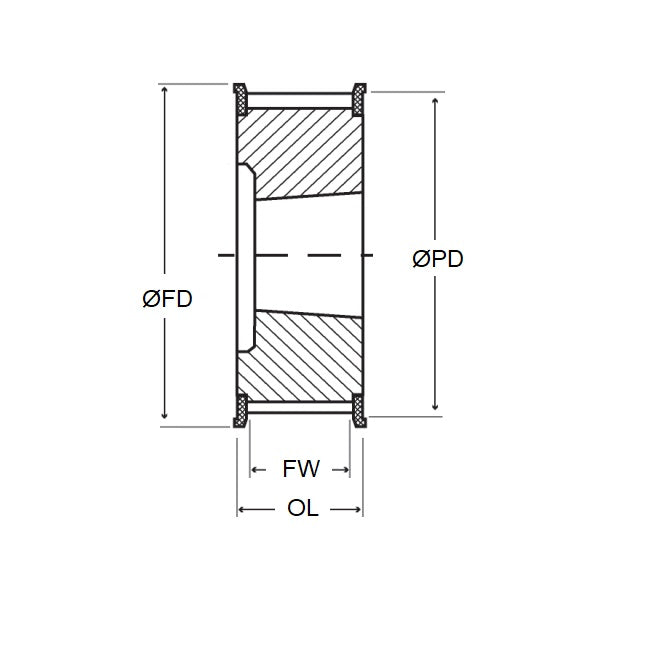

- Pitch Dia. (D): 88.90mm
- Flange Diameter (FD): 94.9mm
- Overall Length: 46.0mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Gates® TL22H150
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
PH022381FFCBT1615, PH022
