W0220-T-030-025-W3-C (Each)

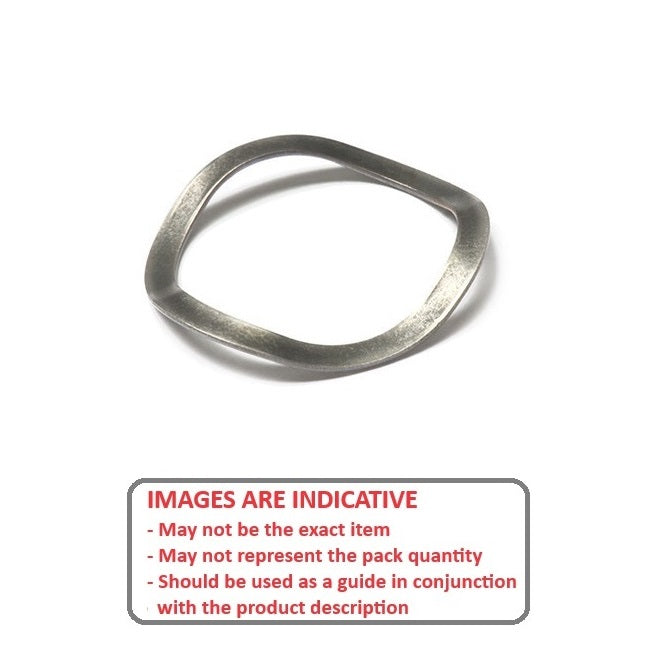

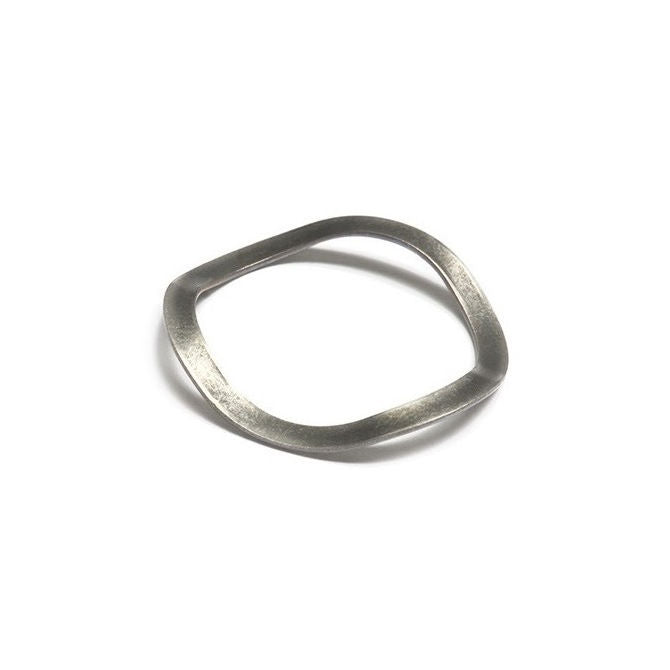

Spring Washers - 22x30x2.5 mm Wave - Carbon Spring Steel Self Finish Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportAssortment Kits
Screws
Order 50 or more
for $1.35 AUD Each
Couldn't load pickup availability
22x30x2.5 mm Spring Washers - Carbon Spring Steel Self Finish - Sold per Each:
Base Category: Washers - Spring
Top Level Category: Washers - Spring - Wave - Carbon Steel
Product Details

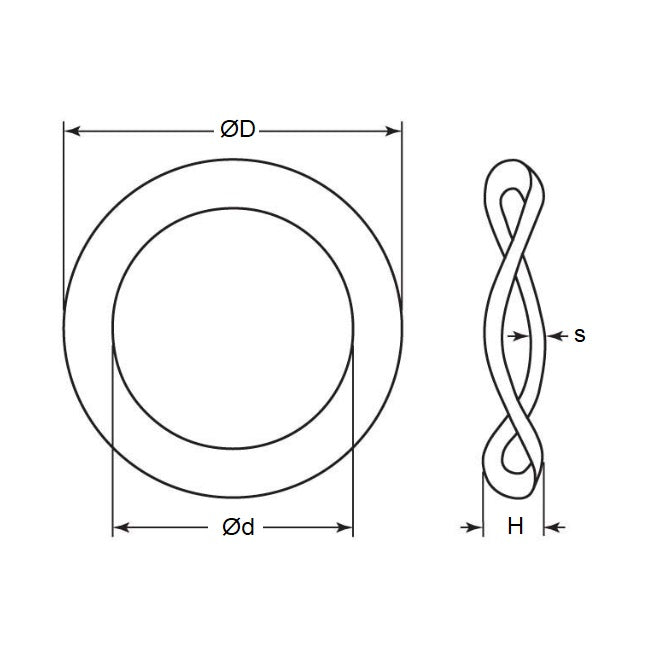

Nominal Inside Diameter (d): 22.00mm+ 0.7 / + 1.0
(22.00mm is 0.866 in.)
Carbon Spring Steel Self Finish
- Nominal Inside Diameter (d): 22.00mm
+ 0.7 / + 1.0
(22.00mm is 0.866 in.)
- Nominal Outside Diameter (D): 30.00mm
- 0.7 / - 1.0
(30.00mm is 1.181 in.)
- Nom. Height (H): 2.50mm
(2.50mm is 0.098 in.)
- Thickness (s): 0.30mm
- Info: Suits OD of 6200 Bearings (Equiv EPL020)
- Type: 3 Wave
- Nominal Screw Size: M22
- Spring Rate: 22N/mm
- Load at Height: 4.0 N at 1.5 mmRef.
Brand: MBA
Country of Origin: GB
Product Compliance and Data
Similar to
- ExaktKey® EPL020
- NoCor® EPL020
- Springmaster EPL020
- XOSpring® EPL020
- EPL20
- W0220T030035W3C
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0220T030025W3C, W0220T030
