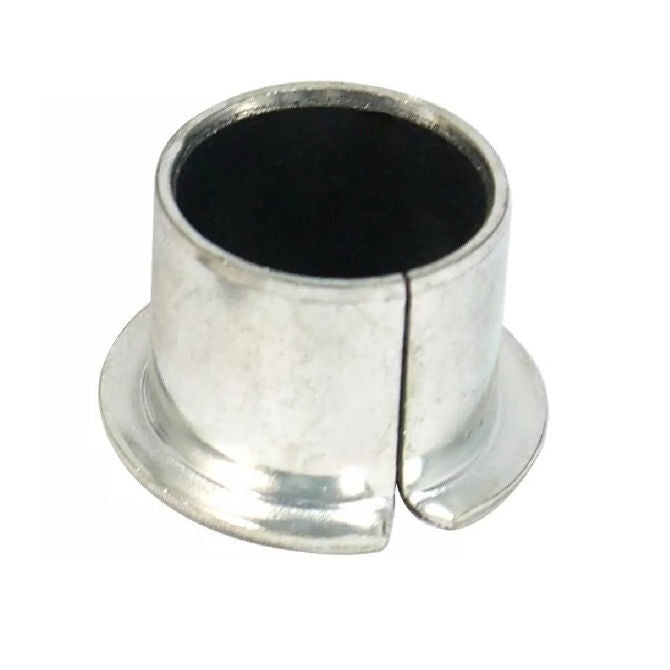

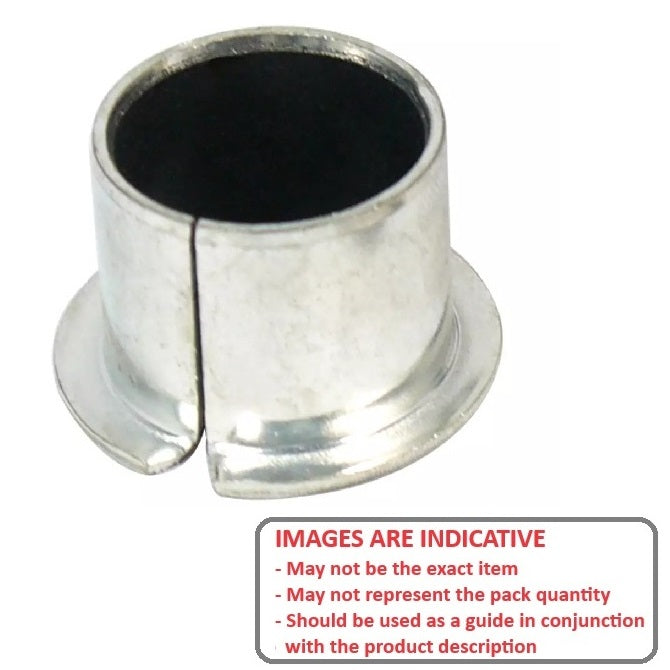

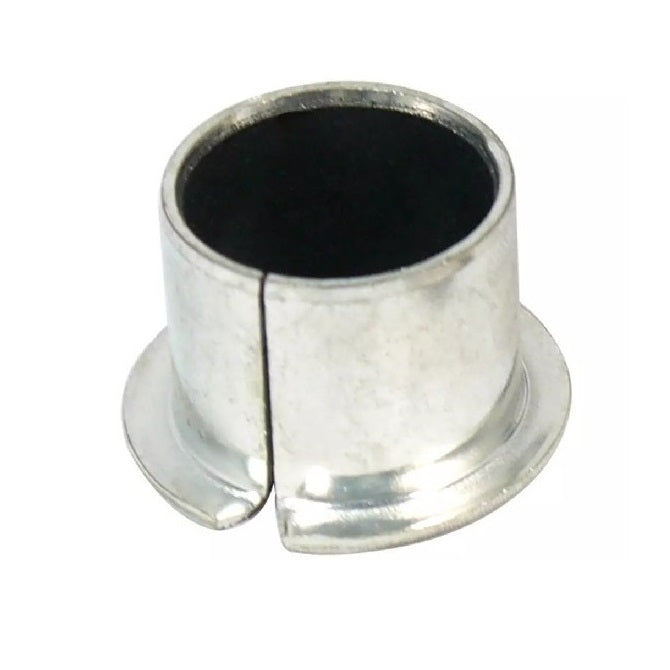

Bushes - 22 mm x 25 mm x 20 mm
BF0220-0250-0200-DU (2 Pcs)

MBA

Additional resources:
Bushes PDF Catalogue
Price:
Regular price $3.71 AUD
Regular price $5.56 AUD Sale price $3.71 AUD
per 2
Qty: 492 available now (984 pcs)
Order 50 or more (100 pcs) for $3.34 AUD per 2
Only 492 packs may be ordered online. If you need a large quantity, please contact us.

Base Category: Bushes - Split

Top Level Category: Bushes - Split - Flanged - Steel - DU

Product Details:

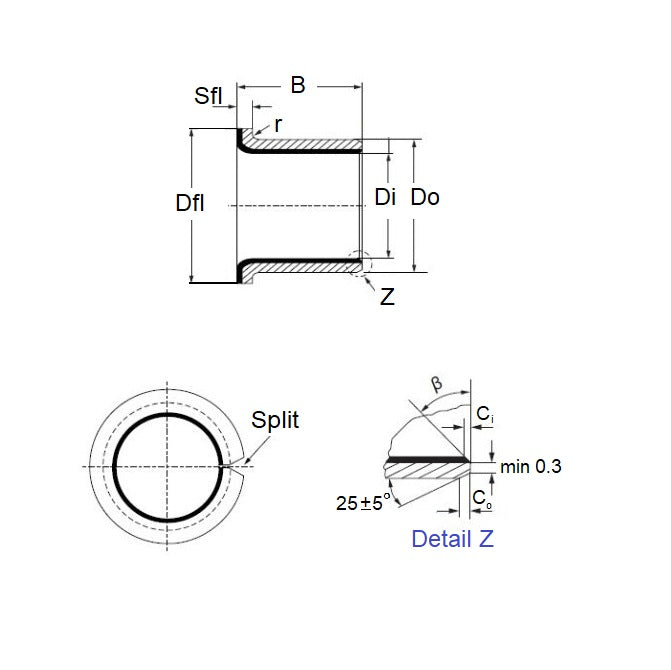

Nominal ID (Di): 22.000mm
-0.000/-0.041

Steel DU with PTFE
  • Nominal Outside Diameter (Do): 25.000mm
    +0.075/-0.000
  • Length (B): 20.000mm
    +0.25/-0.25
  • Flange Diameter (Dfl): 32.00mm
  • Flange Thickness (Sfl): 1.50mm

Brand: MBA
Country of Origin: CN
