W0131-D-023-023-F-C (Each)

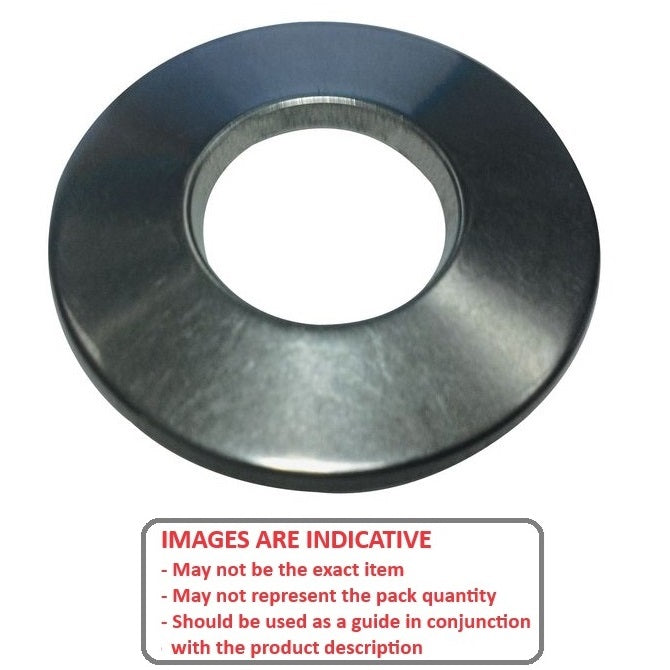

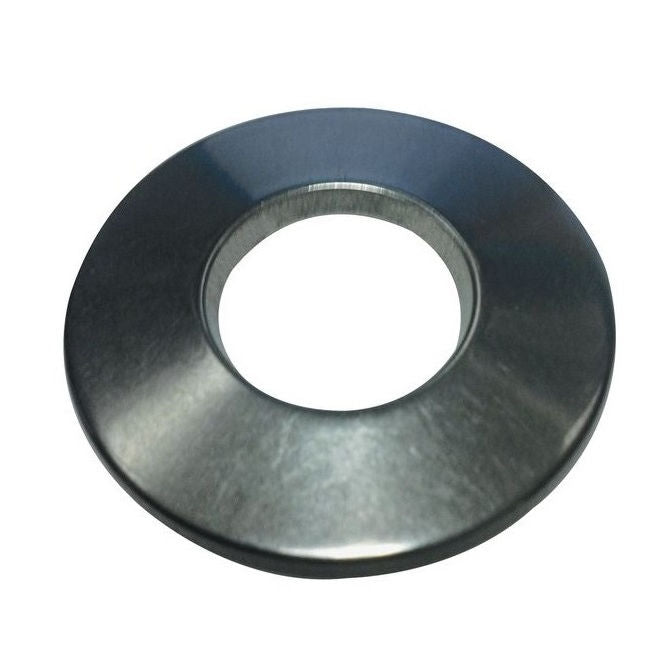

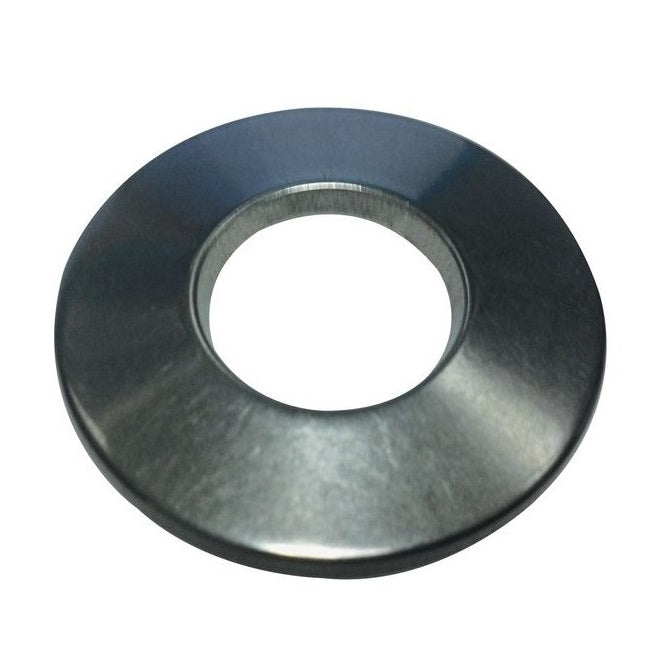

Disc Spring Washers - 22.8x13.1x2.26 mm Flange Locking Type - Carbon Spring Steel Self Finish Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Disc Spring Washers PDF
Screws
Order 50 or more
for $19.11 AUD Each
22.8x13.1x2.26 mm Disc Spring Washers - Carbon Spring Steel Self Finish - Sold per Each:
Base Category: Washers - Disc Spring
Top Level Category: Washers - Disc Spring - Flange Locking Type
Product Details

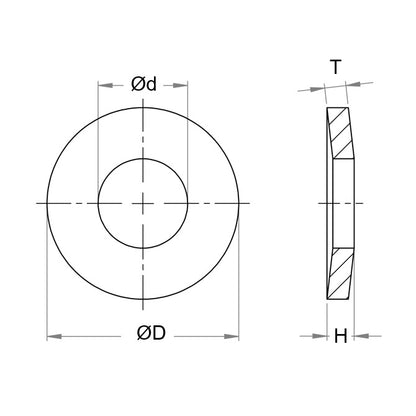

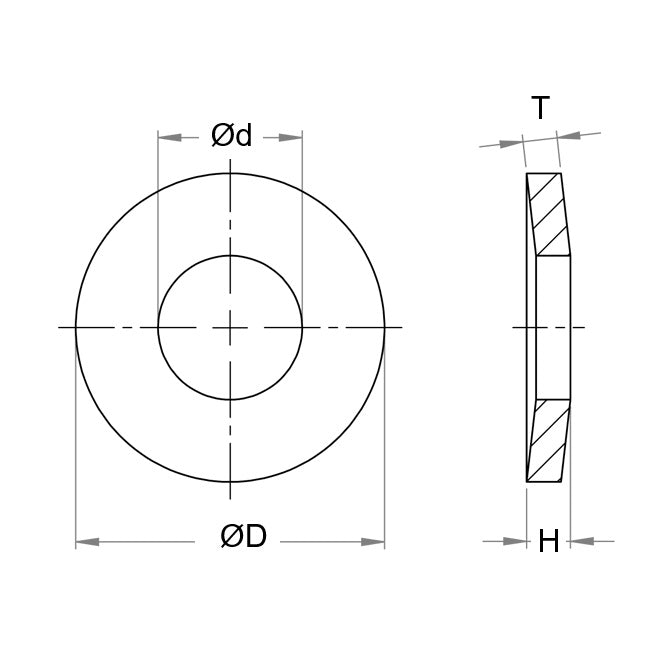

Nominal Outside Diameter (De): 22.80mm(22.80mm is 0.898 in.)
Carbon Spring Steel Self Finish
- Nominal Outside Diameter (De): 22.80mm
(22.80mm is 0.898 in.)
- Nominal Inside Diameter (D): 13.10mm
+ 0.20 / - 0.00
(13.10mm is 0.516 in.)
- Thickness (C): 2.26mm
(2.26mm is 0.089 in.)
- Suits Bolt Size: 1/2 in
- Load At Flat: 952.0Kg
+/- 20 Perc
- Carbon Steel
- Free Height (E): 2.54mm
- Inside Height (D): 0.28mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- Reid Tool® BDF-310
- BDF310
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0131D023023FC, W0131D023
