W0110-D-023-006-C (PK-50)

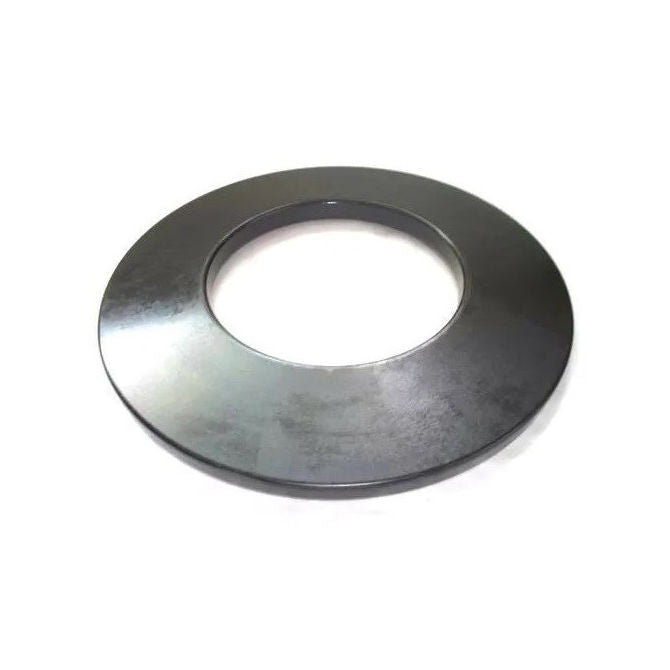

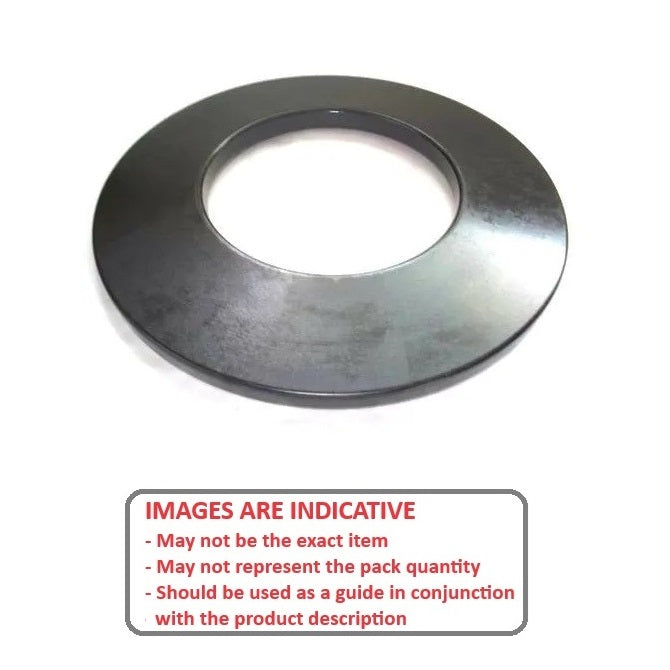

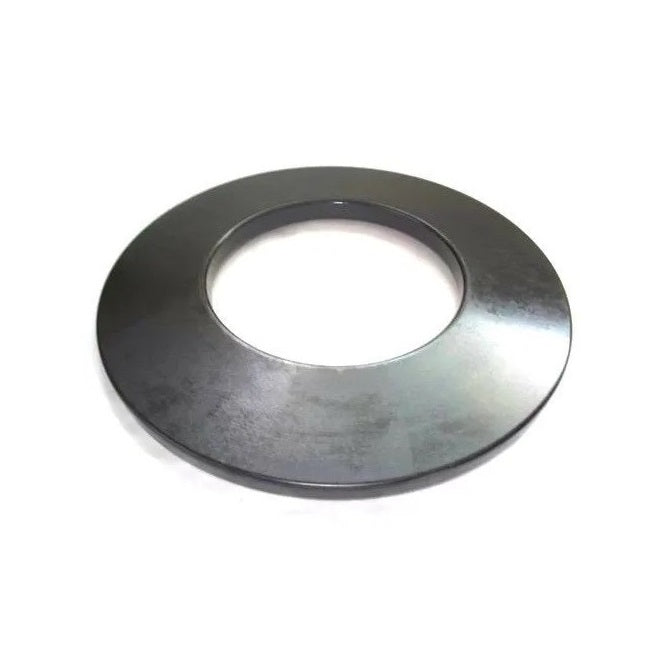

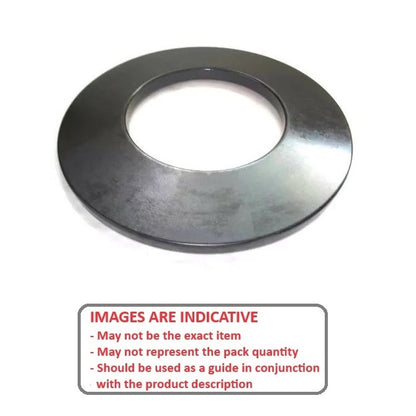

Disc Spring Washers - 22.5x11x0.6 mm Standard - Carbon Steel Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Disc Spring Washers PDF
Screws
Order 50 or more packs of 50 (2500 pcs)
for $49.13 AUD per 50 pack
22.5x11x0.6 mm Disc Spring Washers - Carbon Steel - Sold per pack of 50:
Base Category: Washers - Disc Spring
Top Level Category: Washers - Disc Spring - Standard - Carbon Steel
Product Details
Nominal Outside Diameter (A): 22.50mm(22.50mm is 0.886 in.)
Carbon Steel
- Nominal Outside Diameter (A): 22.50mm
(22.50mm is 0.886 in.)
- Nominal Inside Diameter (B): 11.00mm
+ 0.20 / - 0.00
(11.00mm is 0.433 in.)
- Stock Thickness (C): 0.60mm
(0.60mm is 0.024 in.)
- Loaded Height (L1): 0.80mm
- Load at L1: 43.0kg
- Free Height (E): 1.40mm
- Actual ID (Ref): 11.2mm
- Inside Height (D): 0.80mm
Brand: MBA
Country of Origin: AU
Product Compliance and Data
Similar to
- WASCA DS221106
- S4271
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0110D023006C, W0110D023
