TR-222-242-064-S3 (Each)

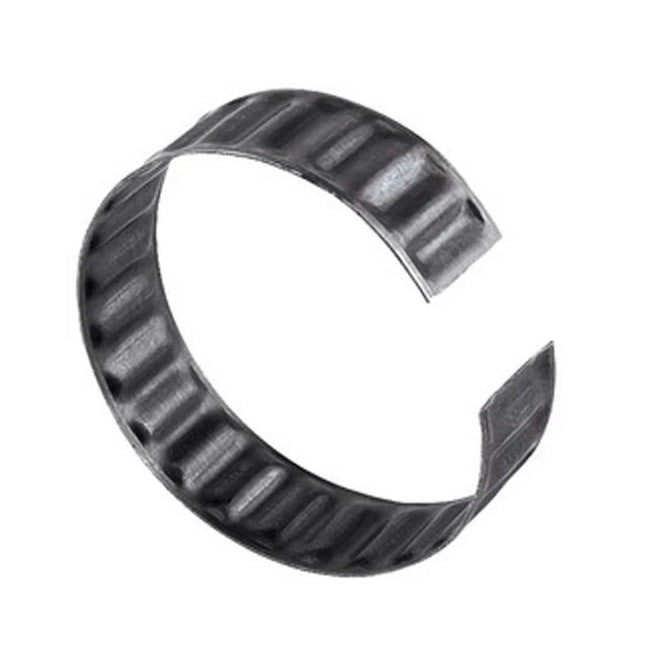

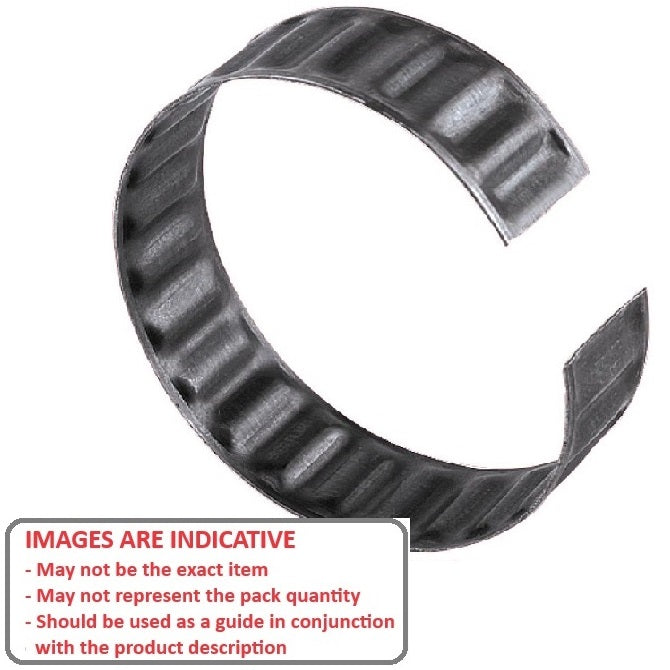

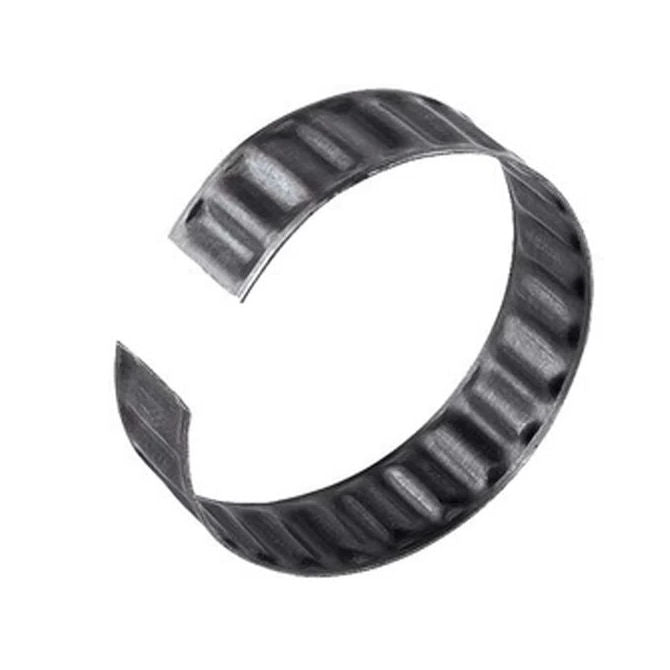

Tolerance Retaining Rings - 22.225 to 22.174 24.206 to 24.130 6.35 mm - Stainless Steel 301 Similar to A2, 302, 304, 18-8 Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $35.31 AUD Each
Couldn't load pickup availability
22.225 to 22.174 24.206 to 24.130 6.35 mm Tolerance Retaining Rings - Stainless Steel 301 (Similar to A2, 302, 304, 18-8) - Sold per Each:
Base Category: Retaining Rings - Tolerance
Top Level Category: Retaining Rings - Tolerance
Product Details

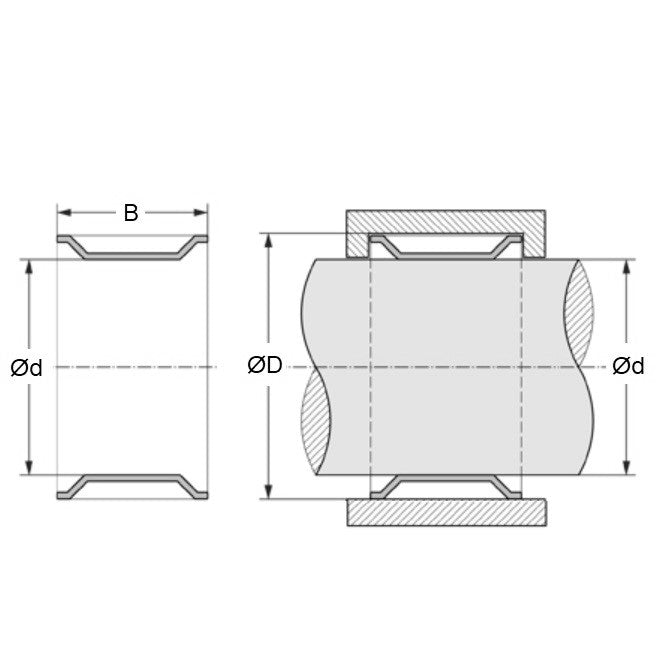

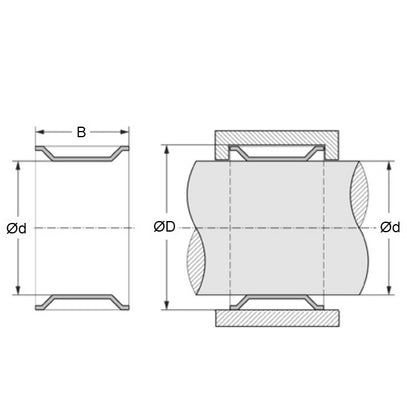

Inner Part OD (d): 22.225 to 22.174mm(22.225 to 22.174mm is 0.875 in.)
Stainless Steel 301 (Similar to A2, 302, 304, 18-8)
- Inner Part OD (d): 22.225 to 22.174mm
(22.225 to 22.174mm is 0.875 in.)
- Housing ID (D): 24.206 to 24.130mm
(24.206 to 24.130mm is 0.953 in.)
- Ring Width (B): 6.35mm
(6.35mm is 0.25 in.)
- Outer Part ID (DT) mm: 23.978 to 23.901For Torque Transfer
- Max. Design Torque: 11.30N.m
- Style: For bearing OD
- Max. Radial Load: 2580N
- Max. Design Thrust: 1023N
- To Suit OD of Bearing: R6
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 3547K14
- S77RY1-087025
- S77RY1087025
- TR2222420643
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
TR222242064S3, TR222242
