W0137-D-022-004-BB-C (Each)

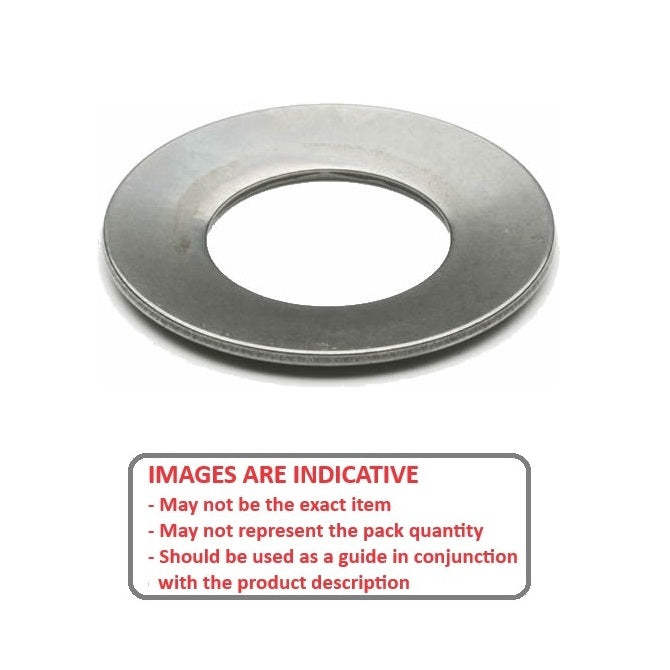

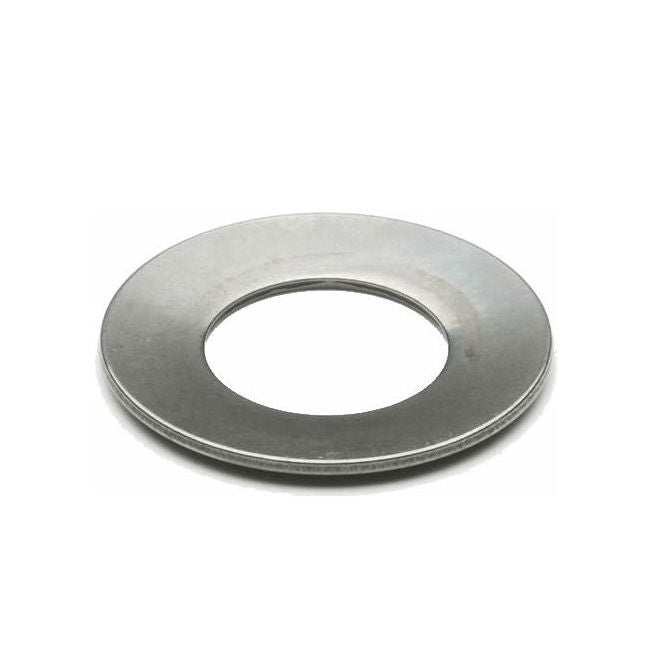

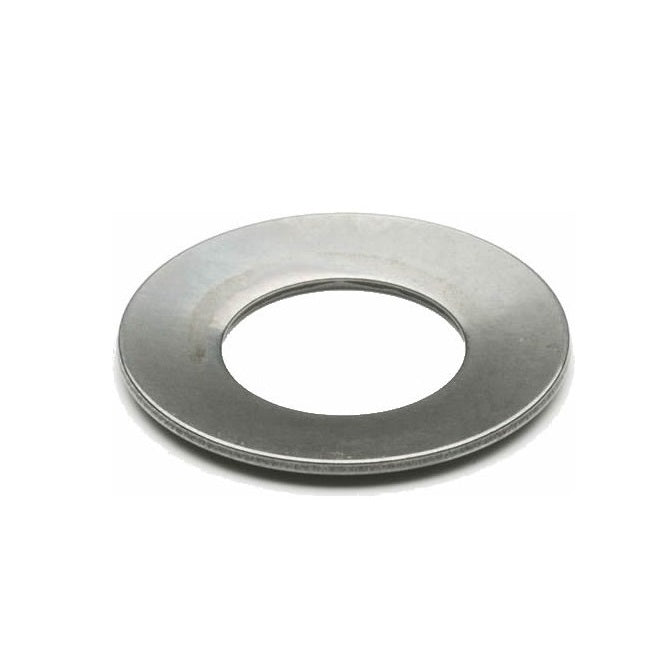

Disc Spring Washers - 21.9x13.5x0.35 mm Ball Bearing Type - Carbon Steel Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Disc Spring Washers PDF
Screws
Order 50 or more
for $10.76 AUD Each
21.9x13.5x0.35 mm Disc Spring Washers - Carbon Steel - Sold per Each:
Base Category: Washers - Disc Spring
Top Level Category: Washers - Disc Spring - Ball Bearing Type
Product Details

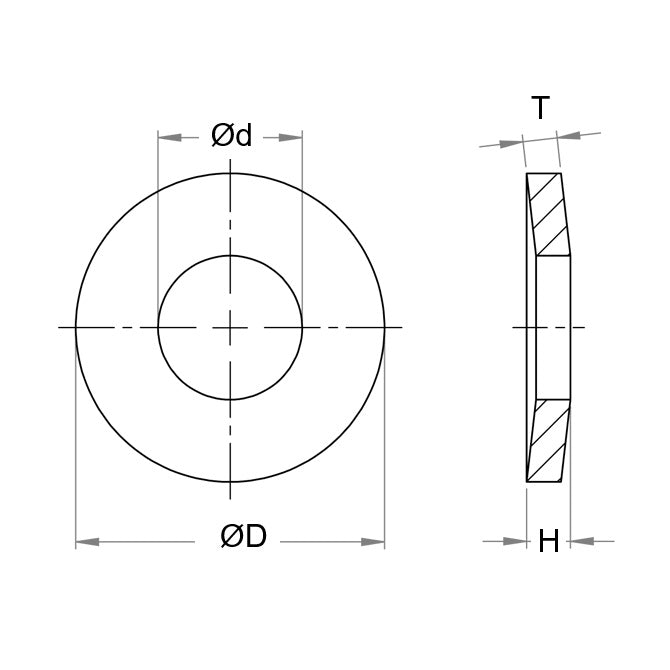

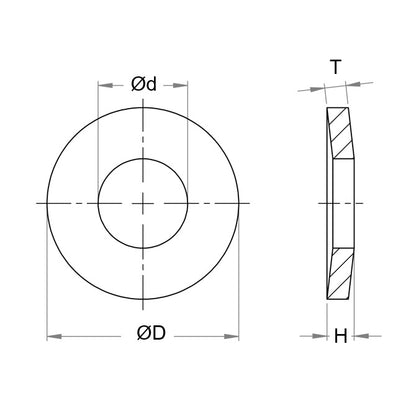

Nominal Outside Diameter (A): 21.90mm(21.90mm is 0.862 in.)
Carbon Steel
- Nominal Outside Diameter (A): 21.90mm
(21.90mm is 0.862 in.)
- Nominal Inside Diameter (B): 13.50mm
+ 0.20 / - 0.00
(13.50mm is 0.531 in.)
- Thickness (C): 0.35mm
(0.35mm is 0.014 in.)
-
+/- 1.1
- Suits Bearing Size: R6
- Load at 0.75 height: 5.35Kg
- Free Height (E): 0.75mm
- Inside Height (D): 0.40mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 94065K44
- Reid Tool® BDB-50
- BDB50
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0137D022004BBC, W0137D022
