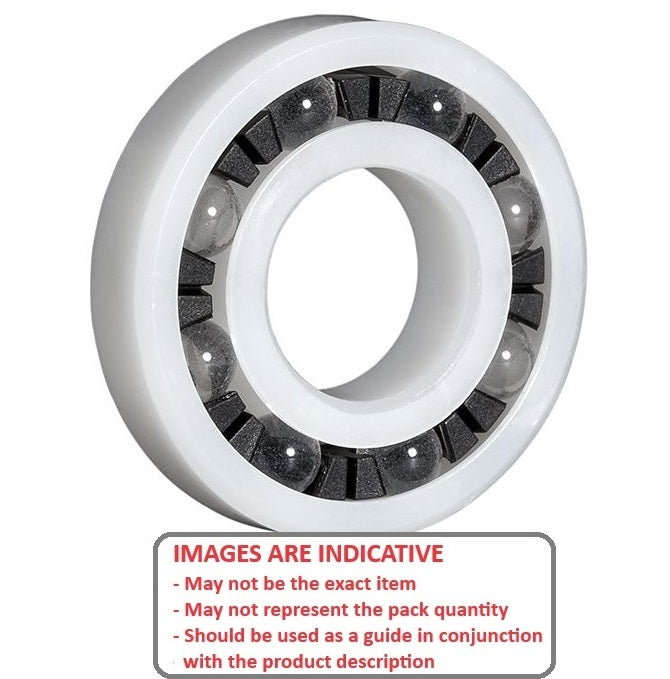

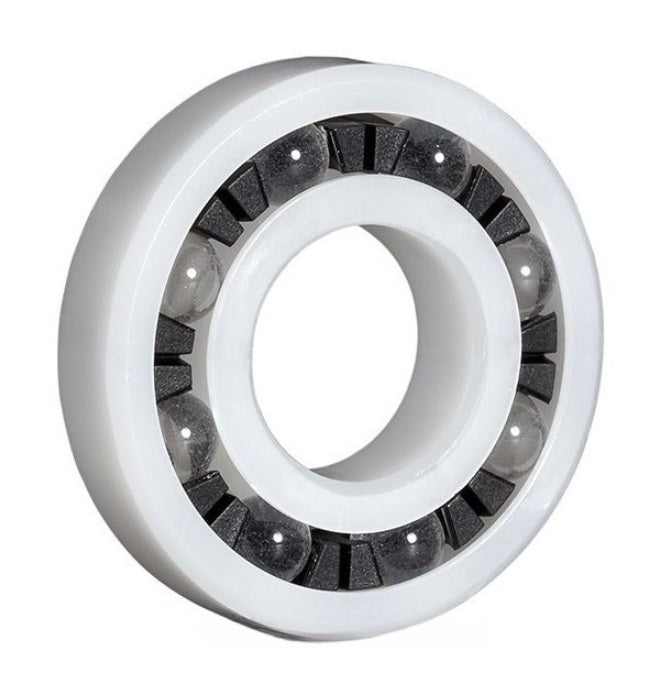

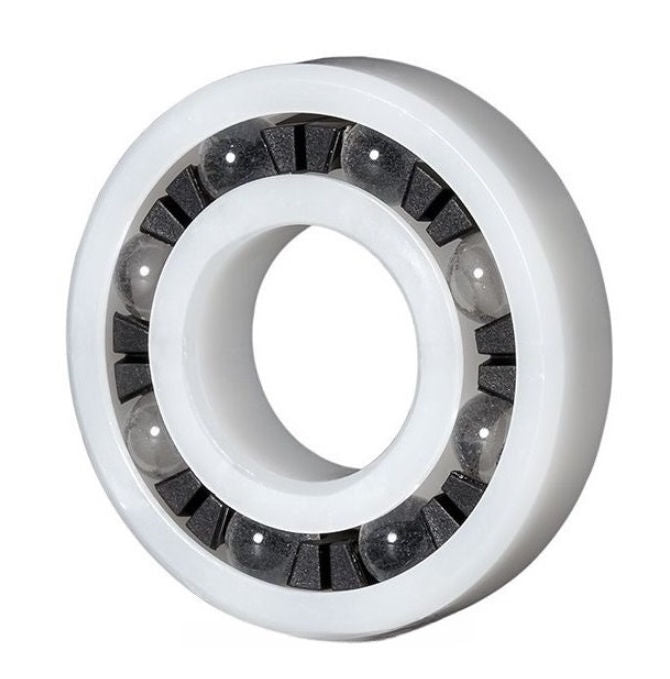

Bearings - 20 mm x 47 mm x 14 mm
P-6204-AGL

Name: 1125414 | P-6204-AGL --- Bearings - 20 mm x 47 mm x 14 mm
Brand: MBA
SKU: P6204AGL
Price: 56.50 AUD
Availability: InStock

MBA

Category: Bearings - Plastic - Acetal with Glass Balls

Additional resources:
Tolerances
Plastic Bearings PDF Catalogue
Shafting

Price:

$56.50 AUD

Each
Qty: 3 available now
Order 50 or more for $50.85 AUD Each

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 21, 2025

Quantity

Base Category: Bearings - Plastic

Top Level Category: Bearings - Plastic - Acetal with Glass Balls

Product Details:

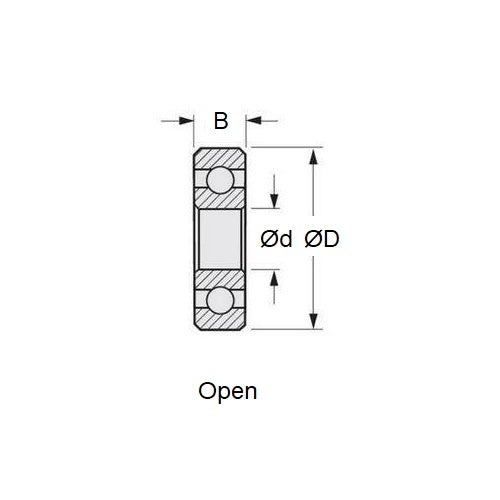

ID (d): 20.000mm
_{+0.102/-0.000}

Acetal with Glass Balls

OD (D): 47.000mm
_{+0.000/-0.127}
Width (B): 14.000mm
_{+0.127/-0.000}
Max RPM in Air: 840
Type: Radial
Dynamic Load Rating: 35.4Kg
Static Load Rating: 23.6Kg

Brand: KMS
Country of Origin: US

Alternatives: A6204-G, A7Z5M4720, AGL6204

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
