W0200-T-028-022-W3-C (Each)

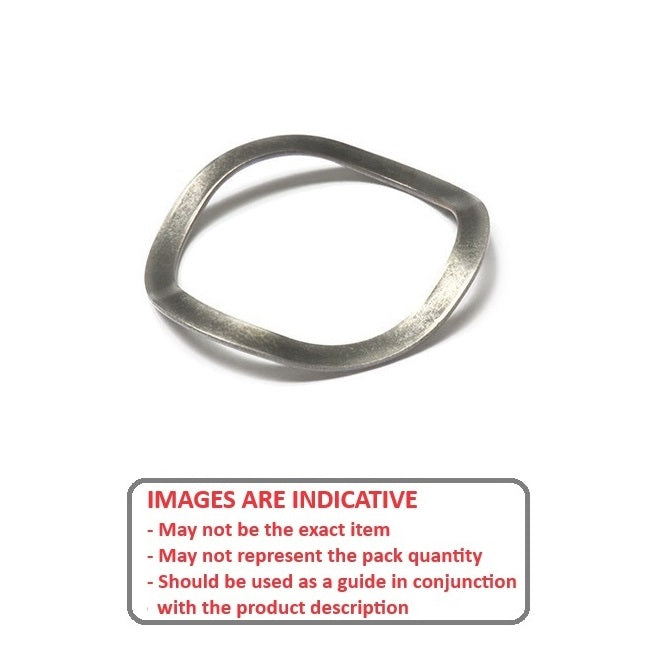

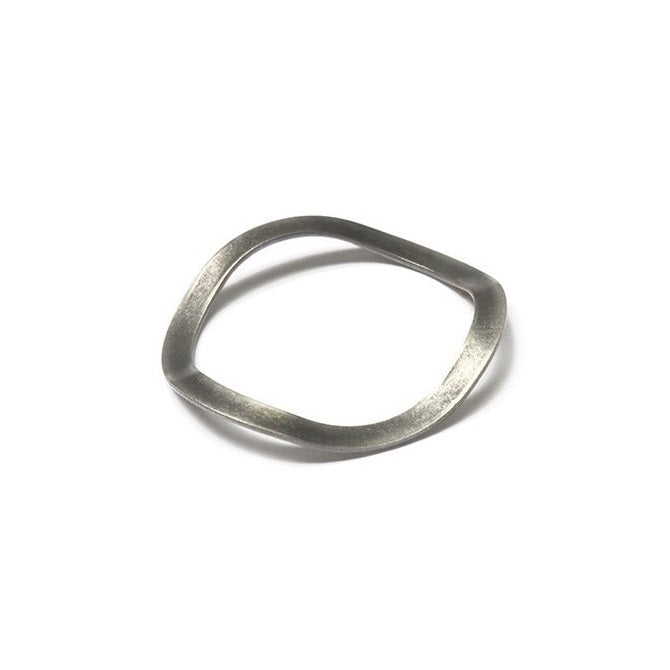

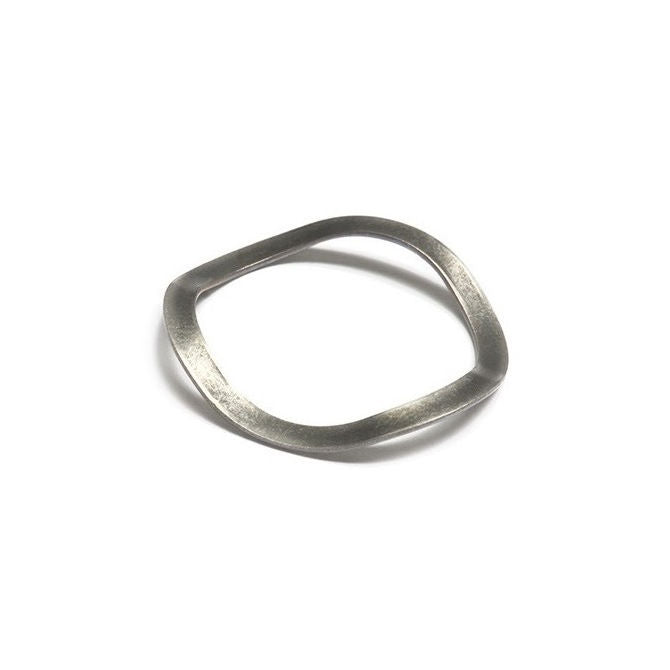

Spring Washers - 20x28x2.2 mm Wave - Carbon Spring Steel Self Finish Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportAssortment Kits
Screws
Order 50 or more
for $1.35 AUD Each
Couldn't load pickup availability
20x28x2.2 mm Spring Washers - Carbon Spring Steel Self Finish - Sold per Each:
Base Category: Washers - Spring
Top Level Category: Washers - Spring - Wave - Carbon Steel
Product Details

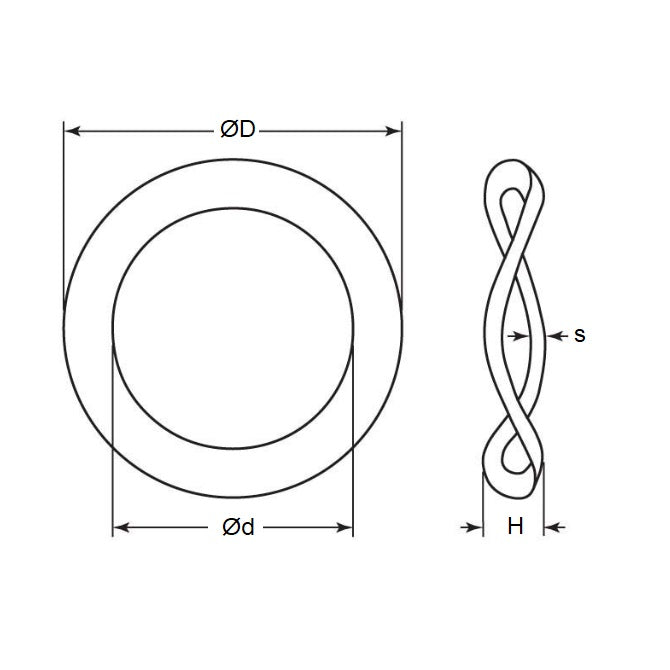

Nominal Inside Diameter (d): 20.00mm+ 0.7 / + 1.0
(20.00mm is 0.787 in.)
Carbon Spring Steel Self Finish
- Nominal Inside Diameter (d): 20.00mm
+ 0.7 / + 1.0
(20.00mm is 0.787 in.)
- Nominal Outside Diameter (D): 28.00mm
- 0.7 / - 1.0
(28.00mm is 1.102 in.)
- Nom. Height (H): 2.20mm
(2.20mm is 0.087 in.)
- Thickness (s): 0.30mm
- Info: Suits OD of 6001 Bearings (Equiv EPL017)
- Type: 3 Wave
- Nominal Screw Size: M20
- Spring Rate: 36N/mm
- Load at Height: 3.5 N at 1.5 mmRef.
Brand: MBA
Country of Origin: GB
Product Compliance and Data
Similar to
- ExaktKey® EPL017
- NoCor® EPL017
- Springmaster EPL017
- XOSpring® EPL017
- EPL17
- W0200T028026W3C
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0200T028022W3C, W0200T028
