CMP-IS8-0320-180-3071 (Each)

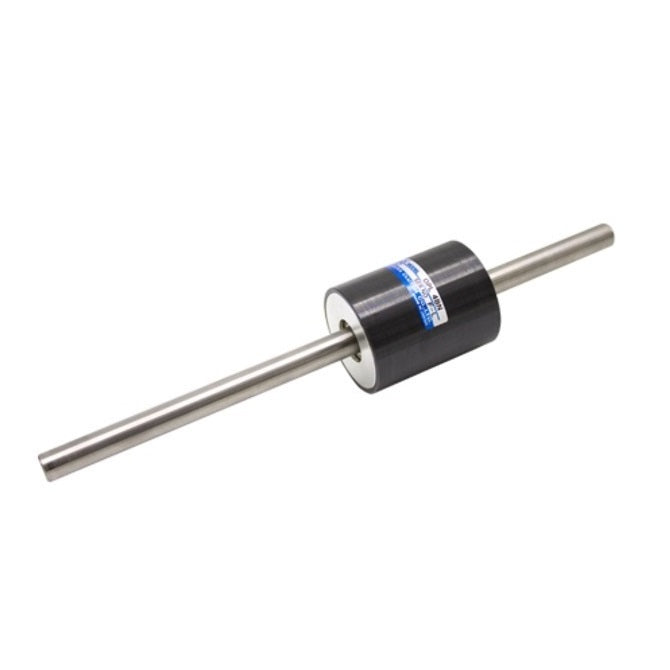

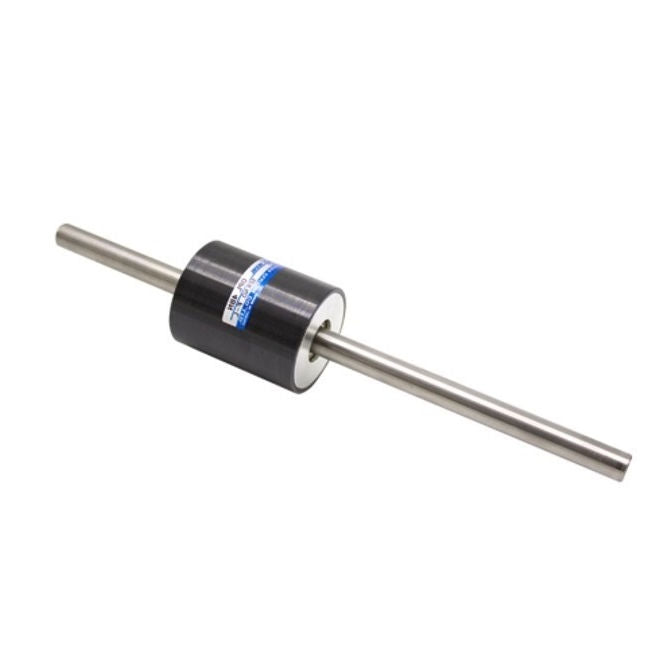

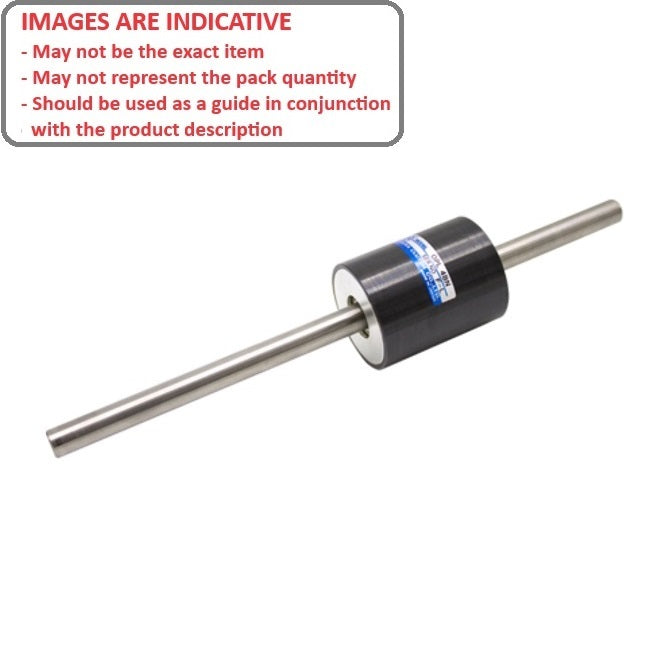

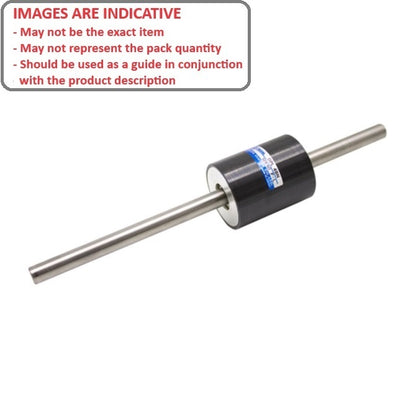

Slip Magnetic Particle Clutches - 2031 to 3071 g.cm 8x180 mm No Power Integral Shaft
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & ExportOrder 50 or more
for $448.57 AUD Each
Base Category: Clutches - Slip Magnetic Particle
Top Level Category: Clutches - Slip Magnetic Particle - No Power Integral Shaft
Product Details
Optimum Torque Range: 2031 to 3071g.cm- Optimum Torque Range: 2031 to 3071g.cm

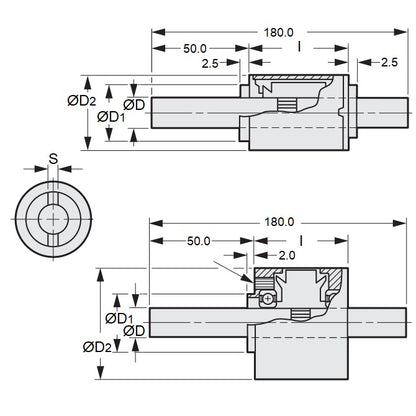

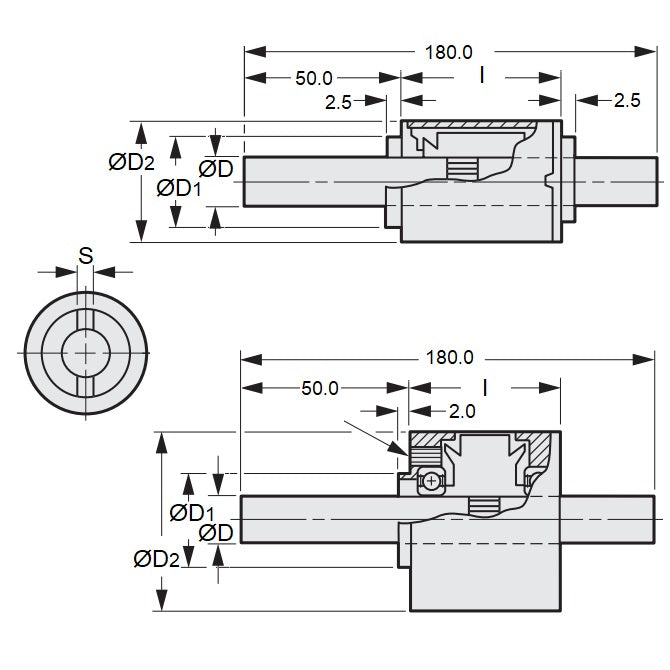

- Shaft Diameter (D): 8.000mm
(8.000mm is 0.315 in.)
- Overall Length (L): 180.0mm
(180.0mm is 7.087 in.)
- Static Torque: 3061g.cm
- Hub Diameter (D1): 15.0mm
- Max. Speed: 300RPM
- Body Diameter: 32.0mm
- Shell (Material): Steel
- End Caps (Material): Plastic
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- S90BPLMS08301035
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
