W0200-FP-028-0010-CH (PK-5)

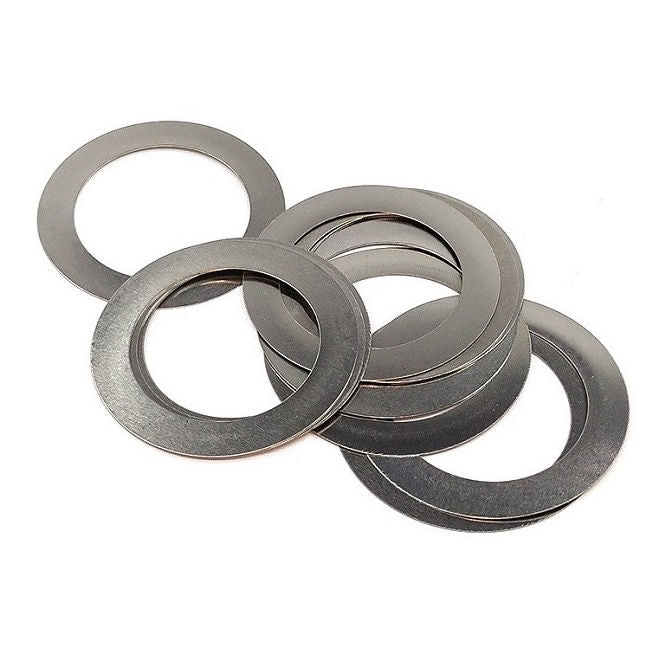

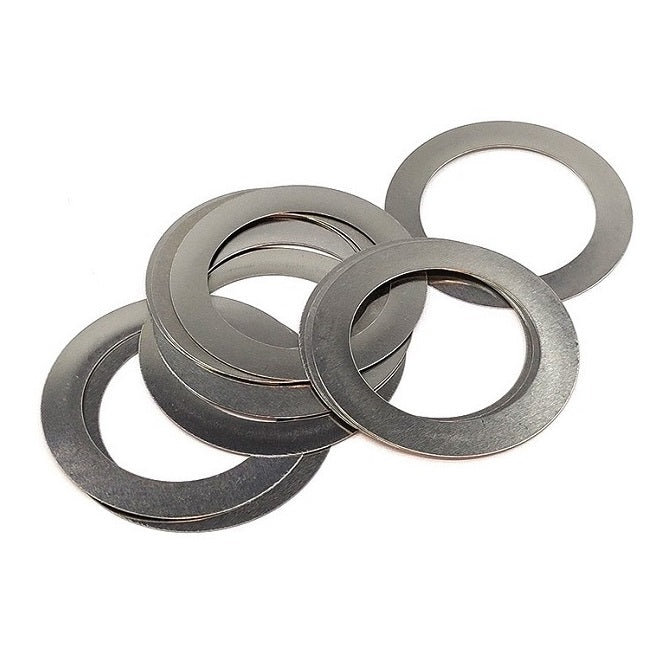

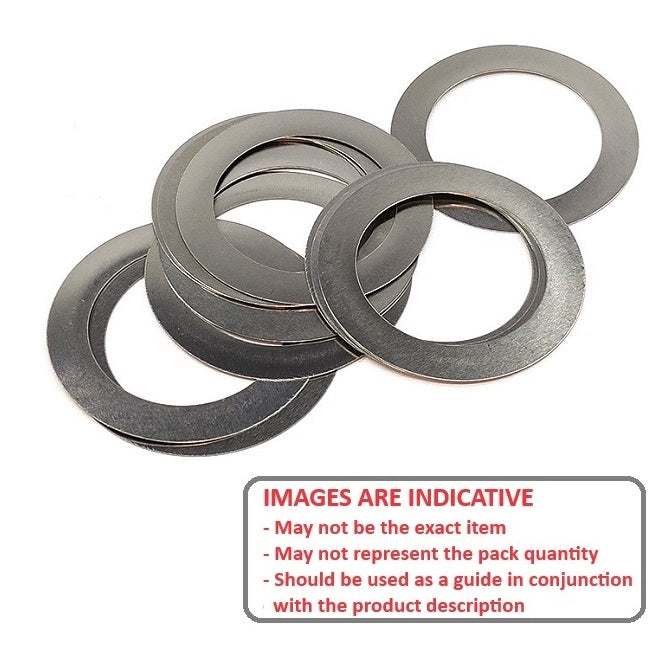

Flat Washers - 20x28x0.1 mm Precision Shim - Carbon Spring Steel AISI C1074-1095 Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws
Order 50 or more packs of 5 (250 pcs)
for $37.43 AUD per 5 pack
20x28x0.1 mm Flat Washers - Carbon Spring Steel AISI C1074-1095 - Sold per pack of 5:
Base Category: Washers - Flat
Top Level Category: Washers - Flat - Precision Shim - Carbon Spring Steel
Product Details

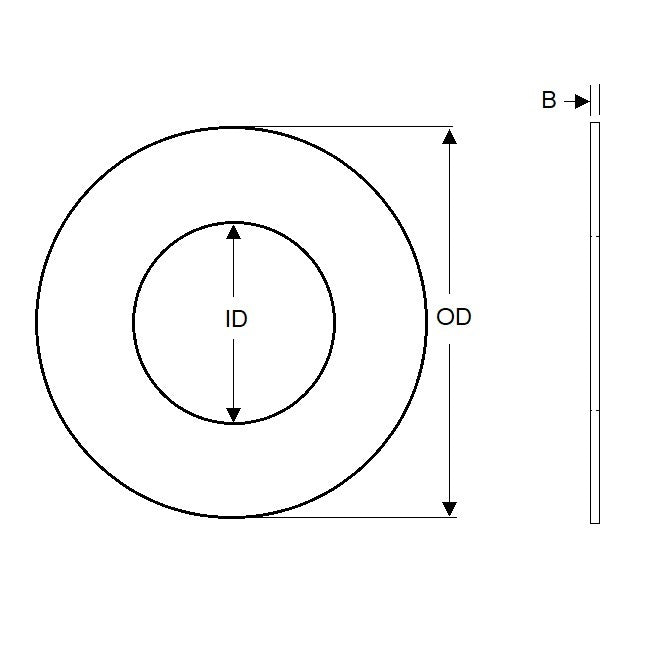

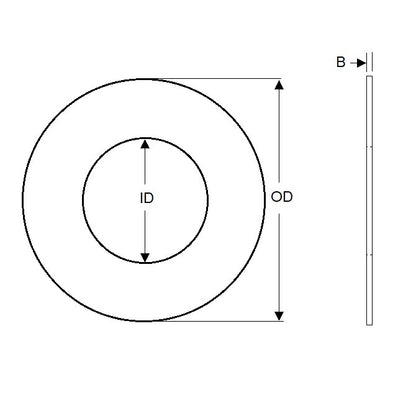

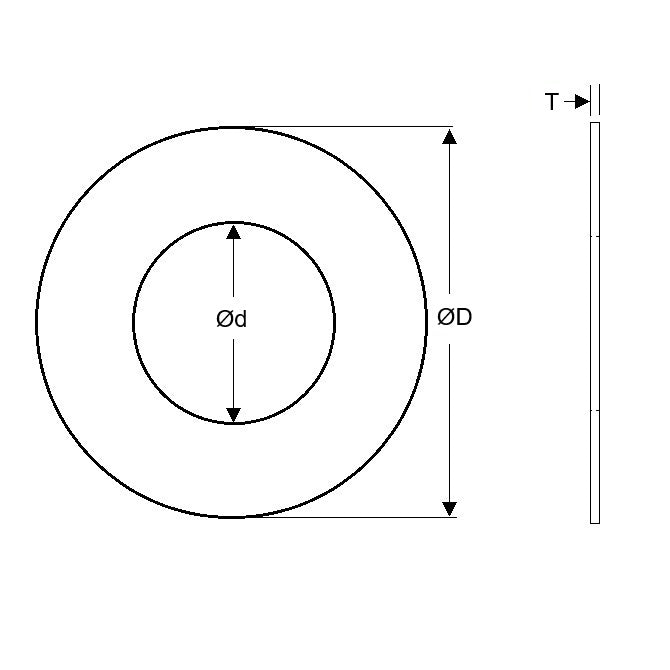

Nominal Inside Diameter (d): 20.000mm+ 0.300 / - 0.300
(20.000mm is 0.787 in.)
Carbon Spring Steel AISI C1074-1095
- Nominal Inside Diameter (d): 20.000mm
+ 0.300 / - 0.300
(20.000mm is 0.787 in.)
- Nominal Outside Diameter (D): 28.000mm
+/- 0.500
(28.000mm is 1.102 in.)
- Thickness (T): 0.100mm
+ 0.013 / - 0.013
(0.100mm is 0.004 in.)
- Other: Rockwell C40 Min.
- Grade: Precision
- Min. Actual ID (Ref): 19.7mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 98055A141
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0200FP0280010CH, W0200FP028
