WRI-0200-LS (PK-250)

Name: Internal Retaining Rings - 20x1.2x20.6 mm Snap Rings - Carbon Spring Steel Snap Ring (Sold Per PK-250) - - WRI-0200-LS
Brand: MBA
SKU: WRI0200LS
Price: 182.05 AUD
Availability: BackOrder

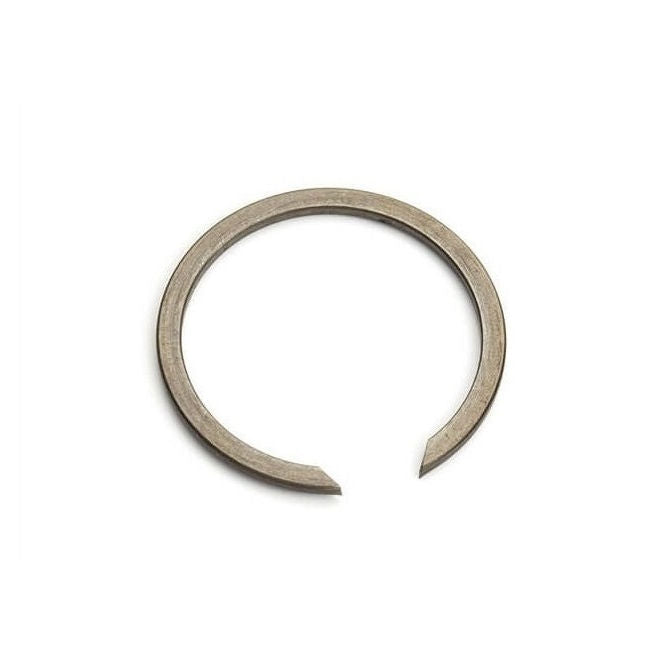

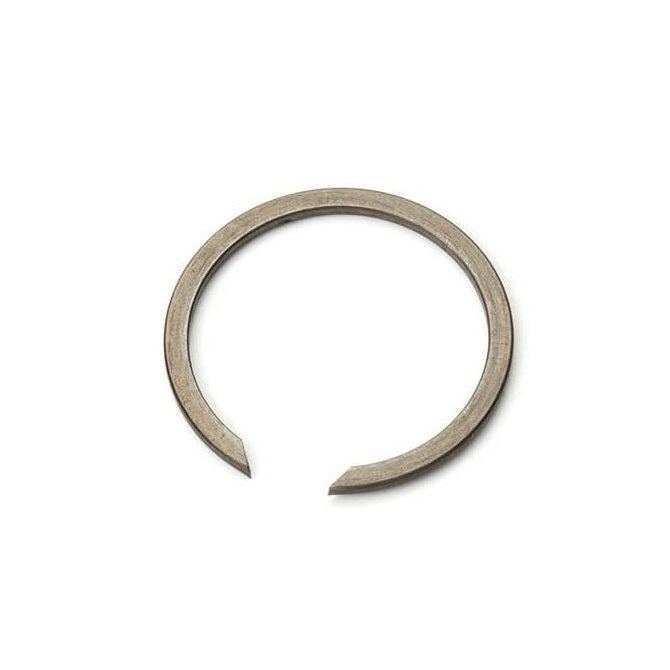

Internal Retaining Rings - 20x1.2x20.6 mm Snap Rings - Carbon Spring Steel Snap Ring

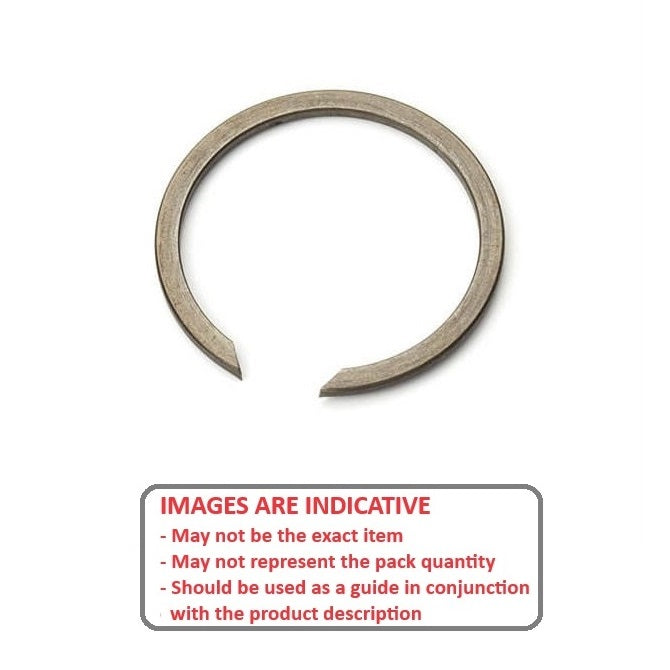

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 4

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export

Category: Retaining Rings - Internal - Snap Rings - Basic Carbon Steel

Additional resources:
Snap Rings and Spiral Rings PDF

Price:

$182.05 AUD

~~$218.45 AUD~~ $182.05 AUD

Priced, Stocked and Sold Per 250 Units

Excludes GST and overseas Taxes & Duties

Backorder

Order 50 or more pack (12500 pcs)
for $163.85 AUD per 250

Product Details

Additional stock available from USA subject to Prior Sale = 200

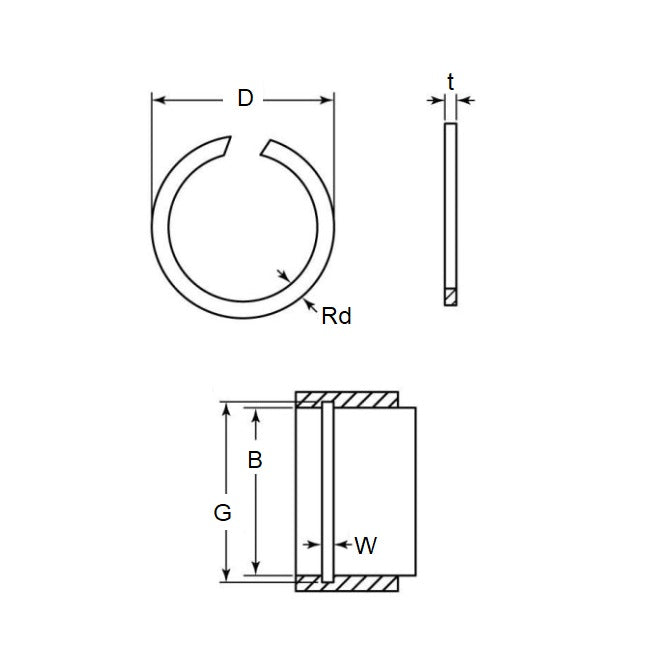

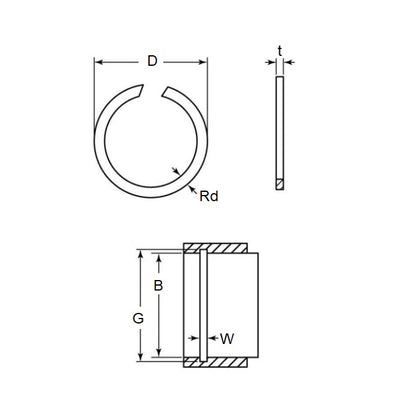

Housing Bore (B): 20.00mm
_{(20.00mm is 0.787 in.)}

Carbon Spring Steel

Housing Bore (B): 20.00mm
_{(20.00mm is 0.787 in.)}
Clip Thickness (T): 1.20mm
_{+ 0 / - 0.10}
_{(1.20mm is 0.047 in.)}
Groove Dia. (Dg): 20.60mm
_{+ 0.13 / - 0.00}
_{(20.60mm is 0.811 in.)}
Approx. Loose Circlip OD (Dr): 21.00mm
Section (Rd): 1.75mm
_{+ 0 / - 0.10}
Groove Width (W): 1.30mm
Approx. Loose Clip ID: 17.5
Section Profile: Rectangular with Square Edge

Brand: MBA
Country of Origin: US

Product Compliance and Data

Similar to

Huyett® DSB-020
NoCor® DSB-020
WRI0200SQ
M23000200APP
M2300-0200APP
DSB020

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
