BF0025-0060-0030-PM

Flanged Bushes - 2.5x6x3 mm Plastic - Iglidur M250 Bush

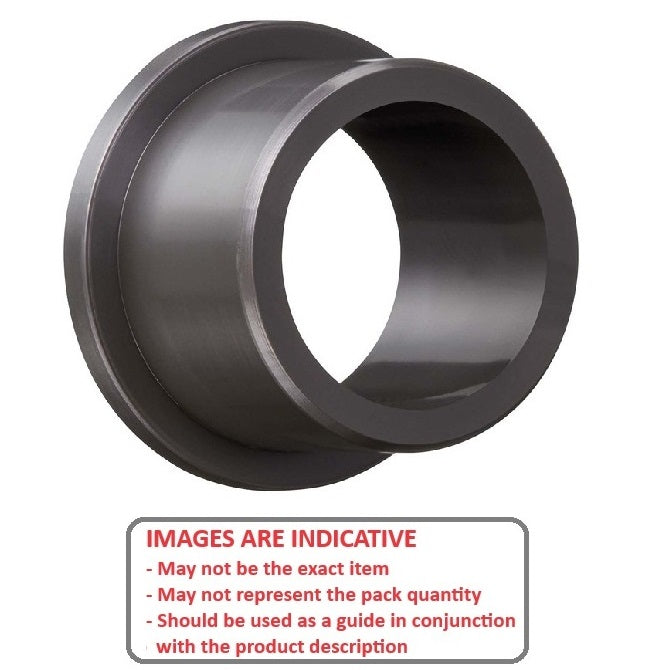

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

Iglidur

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
Bushes PDF Catalogue
Plastic Unflanged Bushes
Price:
$5.86 AUD
$7.04 AUD $5.86 AUD
Each
Qty: 220 available now
Order 50 or more for $5.27 AUD Each
Only 220 may be ordered online. If you need a large quantity, please contact us.

Pickup available at Shop location

Usually Ready in 4 Hours (If ordered Mon-Fri 8am to 1pm)

Base Category: Bushes - Flanged

Top Level Category: Bushes - Flanged - Plastic - Iglidur M250

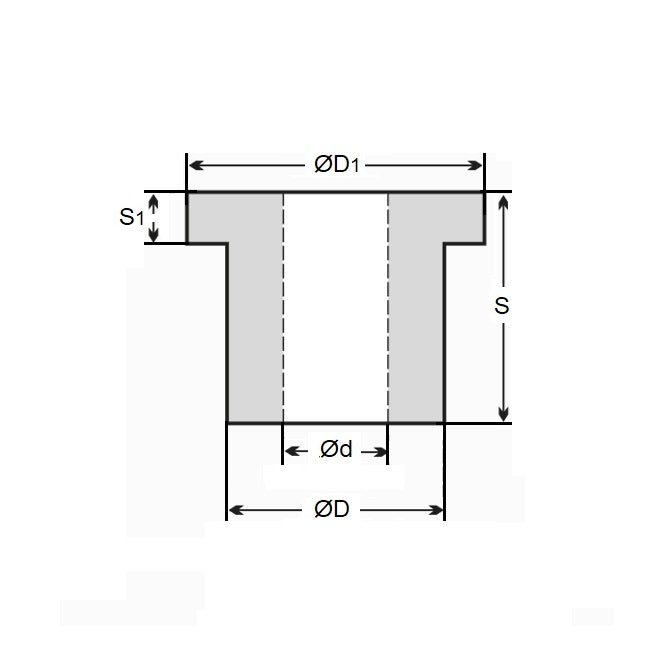

Product Details

Nominal Inside Diameter (d): 2.500mm
+ 0.020 / + 0.080
(2.500mm is 0.098 in.)

Iglidur M250
  • Nominal Outside Diameter (D): 6.000mm
    (6.000mm is 0.236 in.)
  • Length (s): 3.000mm
    + 0.000 / - 0.140
    (3.000mm is 0.118 in.)
  • Flange OD (D1): 9.00mm
  • Flange Thickness (s1): 1.50mm

Brand: Iglidur
Country of Origin: DE

Product Compliance and Data

Similar to

  • Igus MFM-0206-03
  • MFM020603

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
