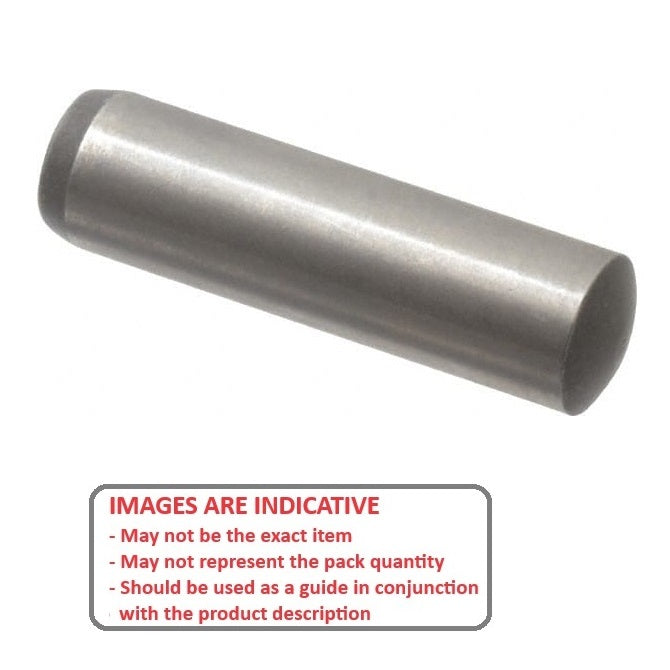

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

Pins - 2.5 mm x 26 mm x 26 mm
DP025-026-CH-1 (20 Pcs)

Name: 1044175 | DP025-026-CH-1 (20 Pcs) --- Pins - 2.5 mm x 26 mm x 26 mm
Brand: MBA
SKU: DP025026CH1
Price: 18.59 AUD
Availability: InStock

MBA

Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

Price:

$18.59 AUD

per 20
Qty: 93 available now (1860 pcs)
Order 50 or more (1000 pcs) for $16.73 AUD per 20

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 03, 2025

Quantity

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 7758

Diameter (D): 2.500mm
_{+0.002/+0.008}

100Cr6 Steel - Heat Treated and Ground Rc 58-62

Length (L): 26.00mm
_+/-0.420
Overall Length: 26.00mm
_+/-0.420
Type: 1 (See diagram)
Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: US

Alternatives: DH2.5-26, DOWMH-025-026

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
