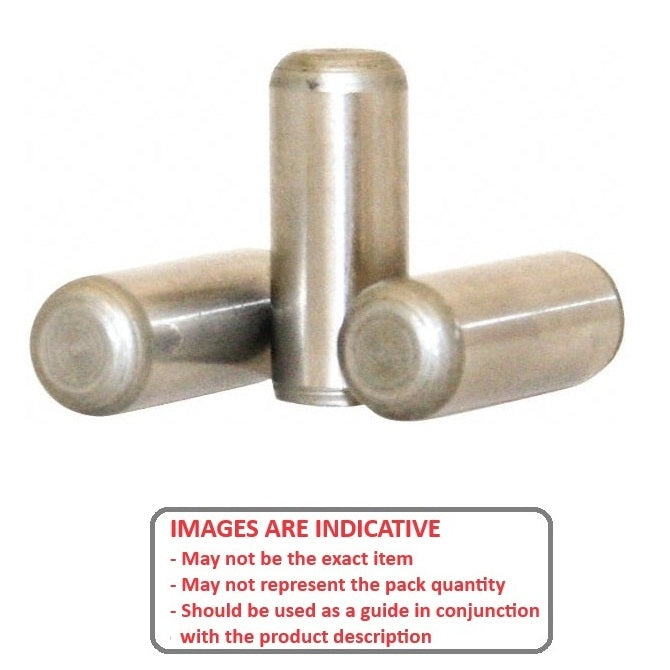

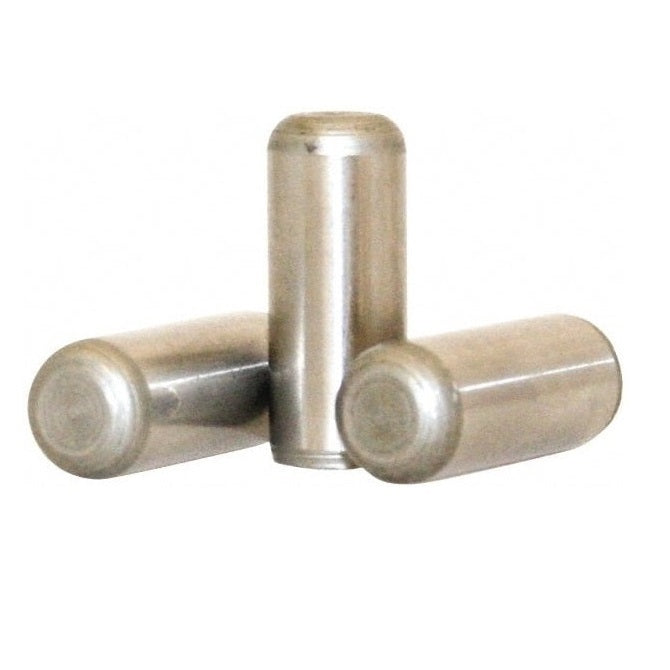

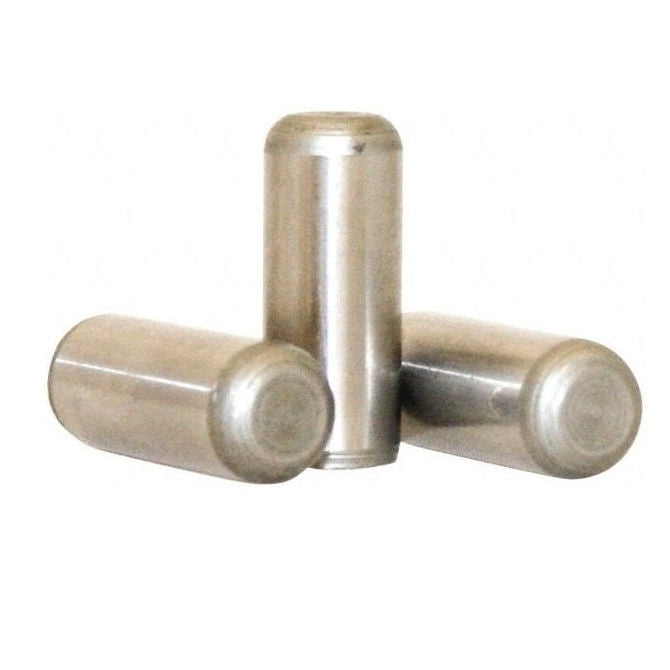

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

Pins - 2.381 mm x 9.53 mm x 9.53 mm
DP024-010-416-1 (50 Pcs)

Name: 1043247 | DP024-010-416-1 (50 Pcs) --- Pins - 2.381 mm x 9.53 mm x 9.53 mm
Brand: MBA
SKU: DP0240104161
Price: 8.00 AUD
Availability: InStock

MBA

Category: Pins - Dowel - Standard - Chamfered Ends - 416 Stainless

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

Price:

$8.00 AUD

~~$13.20 AUD~~ $8.00 AUD

per 50
Qty: 192 available now (9600 pcs)
Order 50 or more (2500 pcs) for $7.20 AUD per 50

Similar Items

Only 192 packs may be ordered online. If you need a large quantity, please contact us.

Quantity

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 416 Stainless

Product Details:

Diameter (D): 2.381mm
_{+0.002/+0.008}

416 Stainless Rc 36-42

Length (L): 9.53mm
_+/-0.254
Overall Length: 9.53mm
_+/-0.254

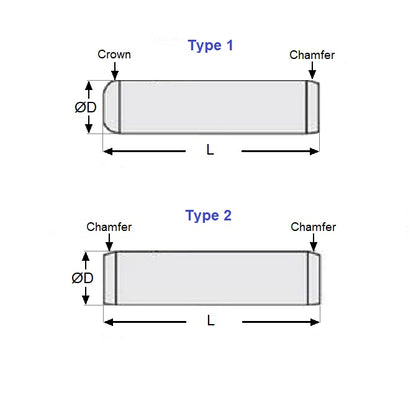

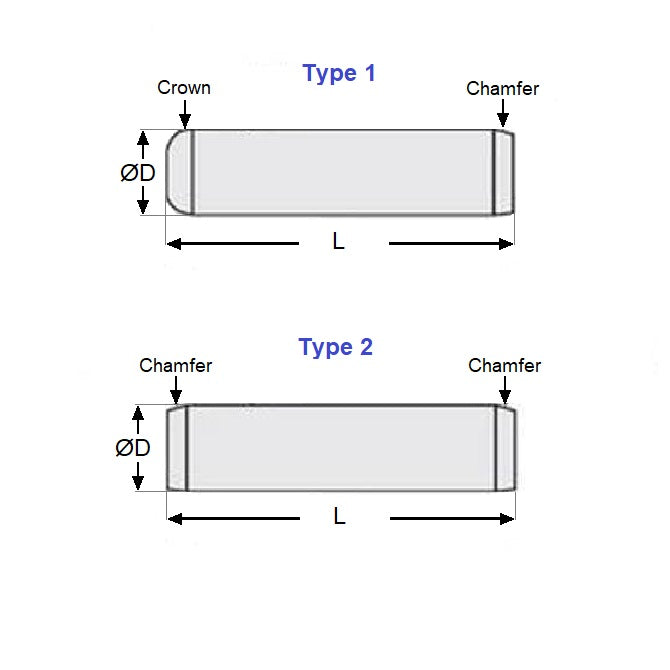

Type: 1 (See diagram)
Chamfer: 0.40 x 15 Deg
Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: DE

Please contact us if you would like a price and delivery for a larger quantity than the available stock.

Alternatives: A9Y31-0312, DOWS-094-0375

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
