SFR1-5-MC3 (PK-50)
Single Row Ball Bearings - 2.381x7.938x2.779 mm Flanged - Stainless Steel AISI 440C Bearing
ENQUIRE
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Tolerances
Standard Bearings PDF Catalogue
Shafting
3/32x5/16 inch Bearing - 2.381x7.938x2.779 mm Single Row Ball Bearings - Stainless Steel AISI 440C - Sold per pack of 50:
Base Category: Bearings - Single Row Ball
Top Level Category: Bearings - Single Row Ball - Flanged - Precision - 440C Stainless
Product Details

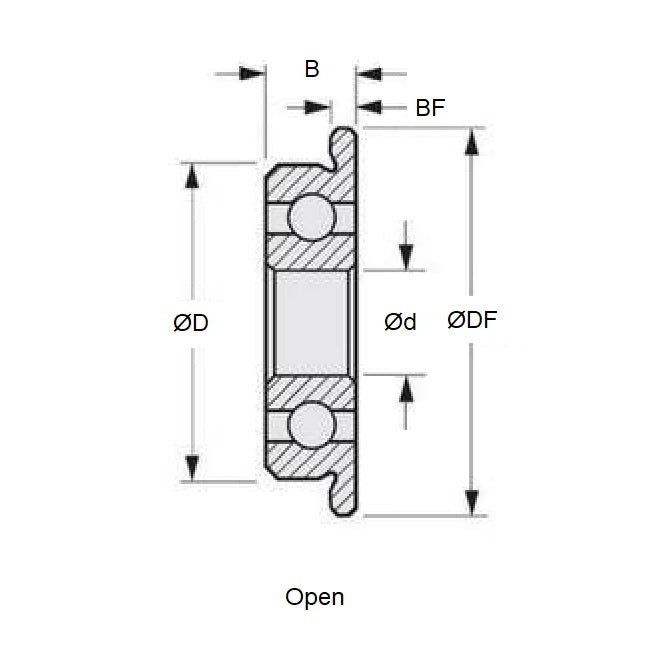

ID (d): 2.381mm+ 0.000 / - 0.0075
(2.381mm is 0.094 in.)
Stainless Steel AISI 440C
- ID (d): 2.381mm
+ 0.000 / - 0.0075
(2.381mm is 0.094 in.)
- O.D. (D): 7.938mm
+ 0.000 / - 0.0075
(7.938mm is 0.313 in.)
- Width (B): 2.779mm
+ 0.000 / - 0.125
(2.779mm is 0.109 in.)
- Flange Diameter (DF): 9.119mm
- Flange Width (BF): 0.584mm
- Precision Grade: Abec 1
- Closure Type: Open
- Bearing Type: Radial Flanged
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 57155K204
- NTN® FLWR1-5
- Similar Part FLWR1-5
- RMB® RK3010X
- MPB S5FC
- GRW SFBR3-32
- Similar Part SFR1-5EZO-SH
- MPB SS5FC
- GRW SSFBR3-32
- NHBB® SSFR1-5
- Similar Part SSFR1-5EZO-SH
- ADR WFX3-32
- Similar Part WFX3-32
- SSFR15
- SSFR1-5MC3
- SSFBR332
- SSFR15MC3
- SSR1F-5
- SS-R1F-5
- SSR1F5
- SSFR15EZOSH
- DDR1F5
- DD-R1F-5
- DDR1F-5
- FLWR15
- WFX332
- FR1-5BASIC
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
SFR15MC3, FR15
