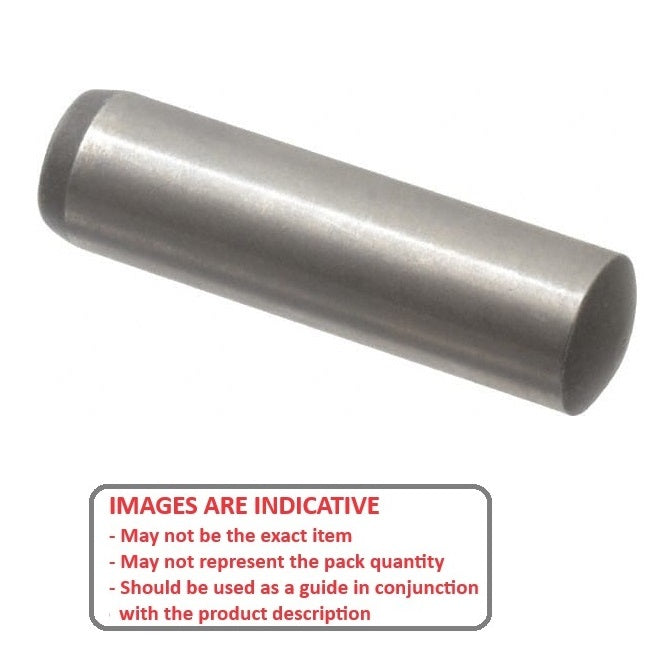

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

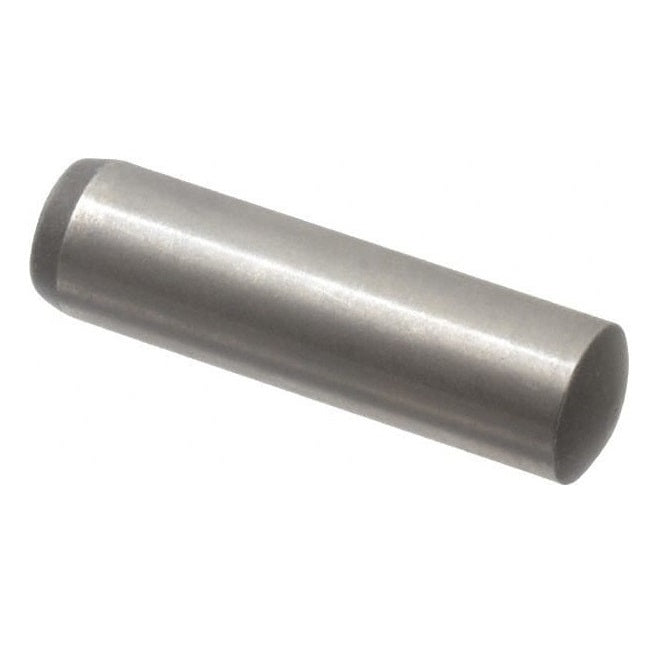

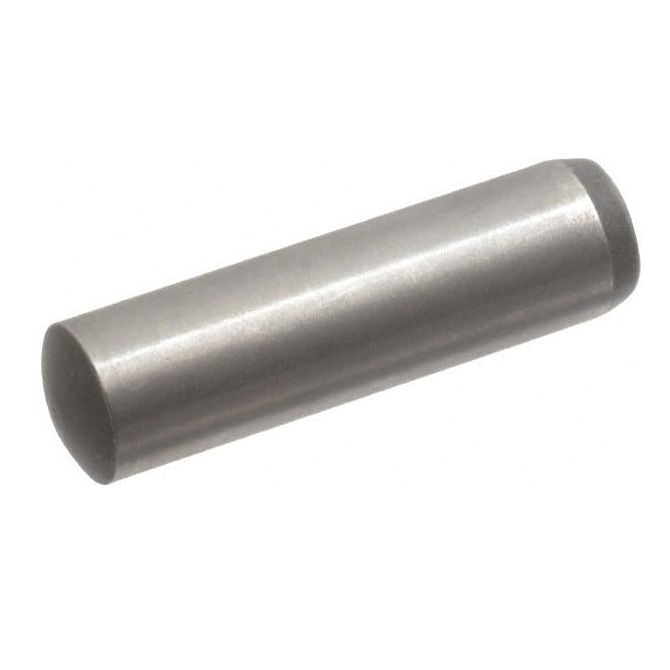

Pins - 2.381 mm x 15.88 mm x 15.88 mm
DP024-016-CH-1 (50 Pcs)

Name: 1043265 | DP024-016-CH-1 (50 Pcs) --- Pins - 2.381 mm x 15.88 mm x 15.88 mm
Brand: MBA
SKU: DP024016CH1
Price: 46.23 AUD
Availability: InStock

MBA

Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF

Price:

$46.23 AUD

per 50
Out Of Stock
Order 50 or more (2500 pcs) for $41.61 AUD per 50

Similar Items

Pre-Order now! Backorders for more than the stock quantity are expected before Feb 21, 2025

Quantity

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - Carbon Steel

Product Details:

Diameter (D): 2.381mm
_{+0.002/+0.008}

Alloy Steel - Heat Treated and Ground Rc 58-62

Length (L): 15.88mm
_+/-0.350
Overall Length: 15.88mm
_+/-0.350
Type: 1 (See diagram)
Standard: Based on DIN 6325

Brand: NoCor
Country of Origin: TW

Alternatives: 241061, A9Q32-0320, DOW-094-0625

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
