Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

Push - 2.31 mm x 2.46 mm x 8.28 mm
RPO-023-025-C (20 Pcs)

MBA

Price:
$6.50 AUD
$6.50 AUD
per 20
Qty: 3 available now (60 pcs)
Order 50 or more (1000 pcs) for $5.85 AUD per 20
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 02, 2025

Base Category: Push On Retaining Rings - Carbon Steel

Top Level Category: Push On Retaining Rings - Carbon Steel

Product Details:

Additional stock available from USA subject to Prior Sale = 44531

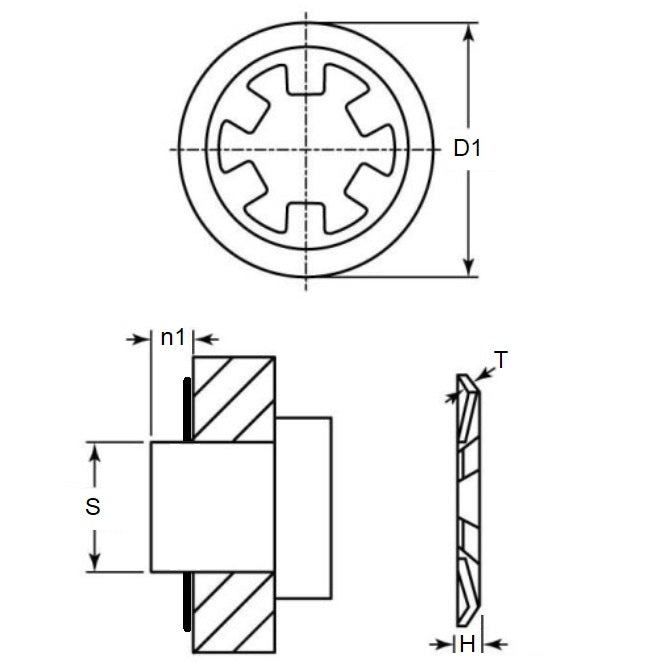

Min shaft size (s1): 2.31mm
Carbon Steel
  • Max Shaft Size (s2): 2.46mm
  • Outside diameter (D1): 8.28mm
  • Min shaft extension (n1): 1.47mm
  • Height (H) Max.: 0.74mm
  • Material Thickness (t): 0.25mm
  • Approx. Thrust Load: 10kg

Brand: MBA
Country of Origin: US

Alternatives: 98430A114, N1465-0009, N1465-0009APP, TX-009

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
