DP010-004-303-2 (20 Pcs)

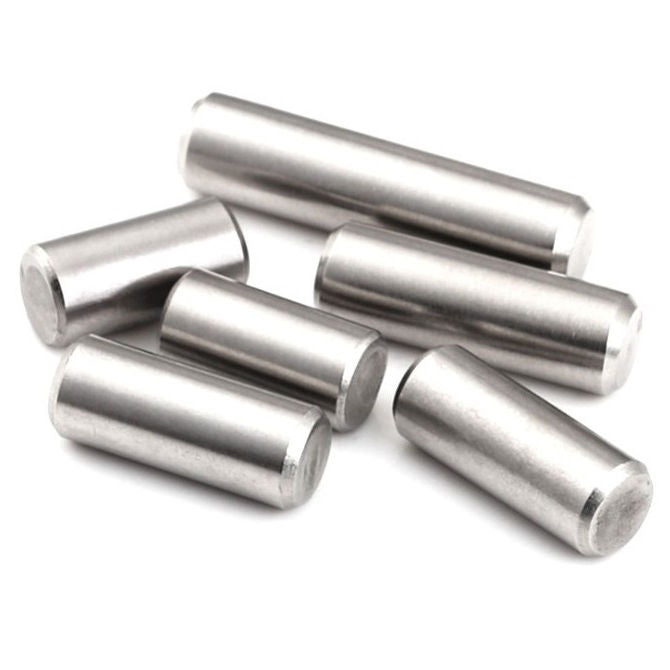

Dowel Pins - 1x4x4 mm - Stainless Steel 303/304 (Similar to A2, 18-8) HRB80

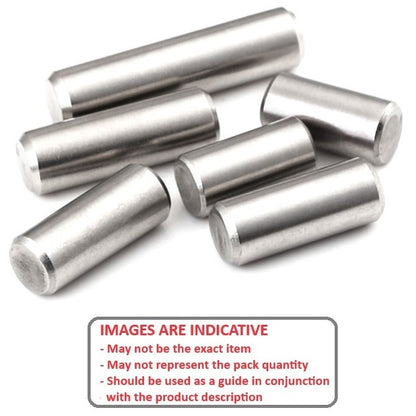

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

NoCor

Additional resources:
Dowel Pins Catalogue PDF
Master Pins Catalogue PDF
Price:
$6.14 AUD
$6.14 AUD
per 20
Qty: 62 available now (1240 pcs)
Order 50 or more (1000 pcs) for $5.53 AUD per 20
You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jun 21, 2025

Base Category: Pins - Dowel

Top Level Category: Pins - Dowel - Standard - Chamfered Ends - 303-304 Stainless

Product Details:

Diameter (D): 1.000mm
+ 0.002 / + 0.008

Stainless Steel 303/304 (Similar to A2, 18-8) HRB80
  • Length (L): 4.00mm
    +/- 0.254
  • Approx. Overall Length: 4.00mm
    +/- 0.254

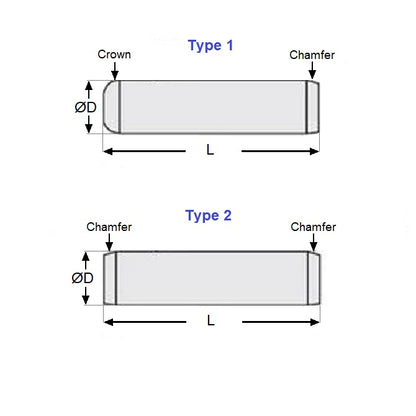

  • Type: 2 (Chamfer Both Ends)
  • Chamfer: 0.2 x 15 Deg
  • Standard: Based on ISO 2338

Brand: NoCor
Country of Origin: TW

Alternative Parts Include: DOWMS-010-004, NoCor

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
View full details
