B-MXL-0194-0048-NFB (Each)

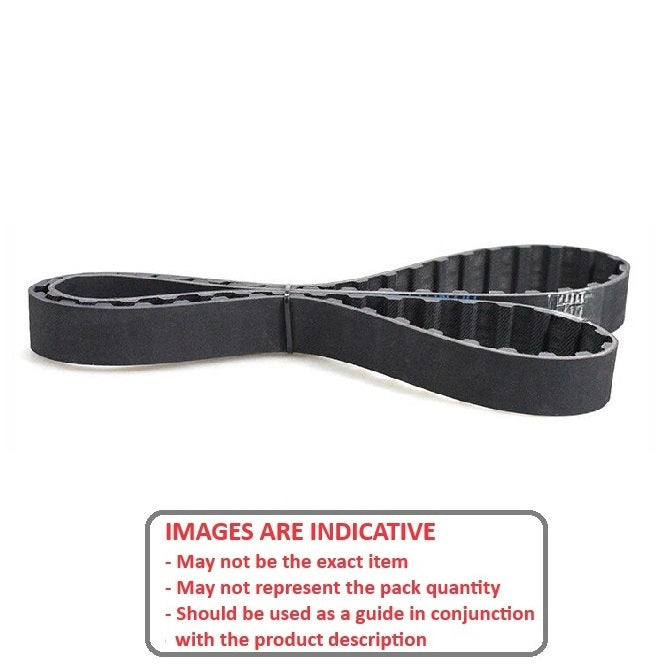

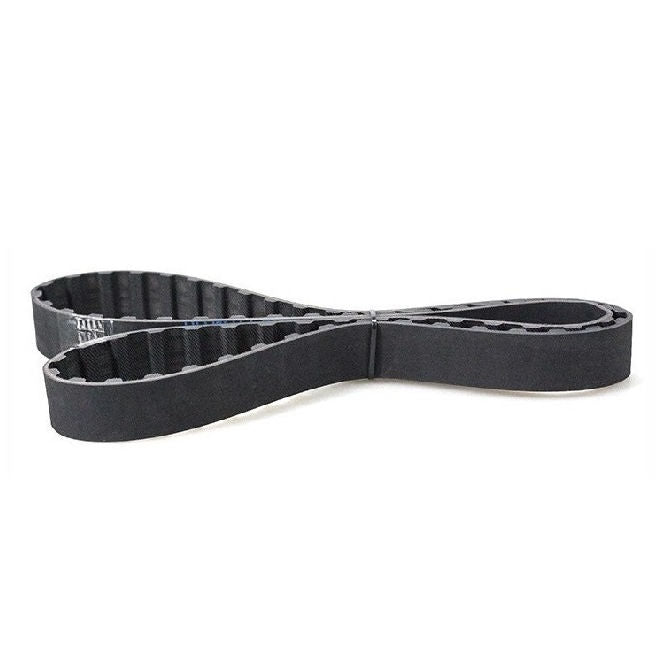

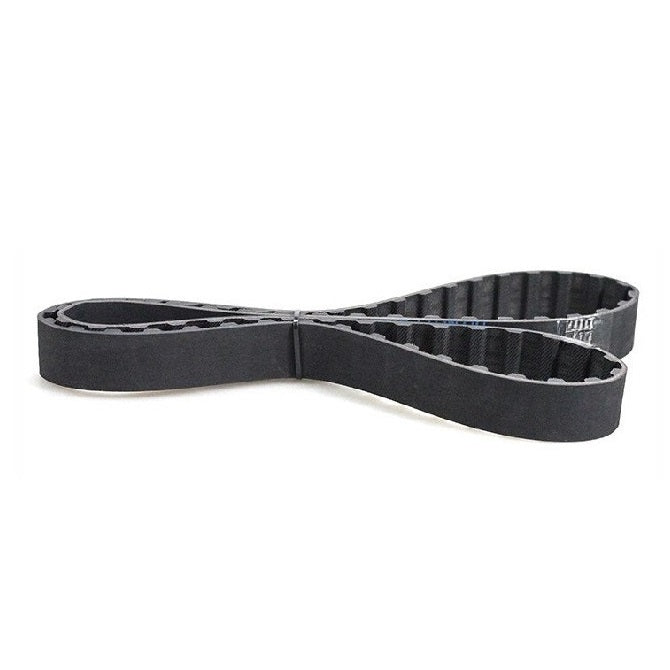

Inch Timing Belts - 194 tooth - 394.208x4.8 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Order 50 or more
for $4.37 AUD Each
194 tooth - 394.208x4.8 mm Inch Timing Belts - Nylon Covered Neoprene with Fibreglass Cords - Sold per Each:
Base Category: Belts - Inch Timing
Top Level Category: Belts - Inch Timing - 2.032mm Pitch MXL - 4.8mm Wide
Product Details
Number of Teeth: 194Nylon Covered Neoprene with Fibreglass Cords
- Number of Teeth: 194
- Length: 394.208mm
(394.208mm is 15.52 in.)
- Width: 4.8mm
(4.8mm is 0.189 in.)
- Reinforcement: Fibreglass
- Appearance: Black
- Breaking Strength: 365N
- Min Temperature (C): -34Deg C
- Max Temperature (C): 85Deg C
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Gates® 194MXL019
- Gates® BMXL01940047NF
- Misumi® C-TBN194MXL019
- CTBN194MXL019
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BMXL01940048NFB, BMXL0194
