RRN-075 (PK-100)
Internal Retaining Rings - 19.05x0.89x20.22 mm Spiral Rings - Carbon Spring Steel Spiral Ring
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Spiral Rings and Snap Rings PDF
Order 50 or more packs of 100 (5000 pcs)
for $12.47 AUD per 100 pack
3/4 inch Spiral Ring - 19.05x0.89x20.22 mm Internal Retaining Rings - Carbon Spring Steel - Sold per pack of 100:
Base Category: Retaining Rings - Internal
Top Level Category: Retaining Rings - Internal - Spiral Rings - Heavy Duty - Carbon Steel
Product Details
Additional stock available from USA subject to Prior Sale = 20531

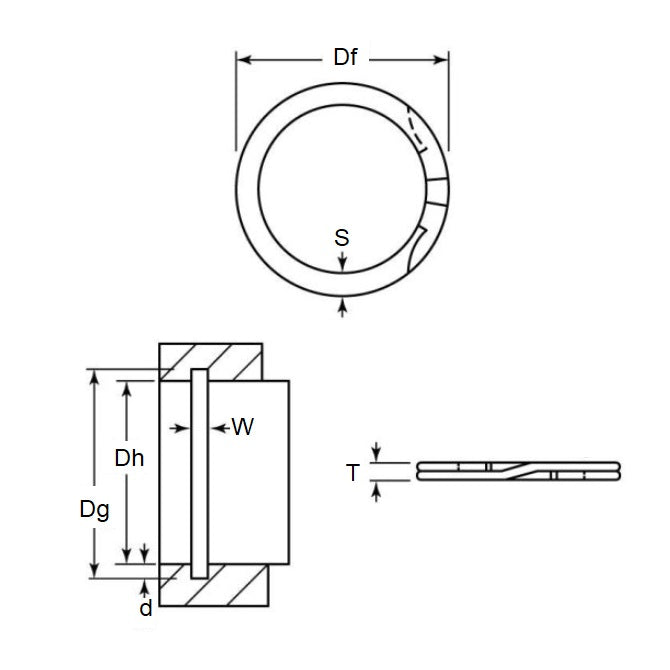

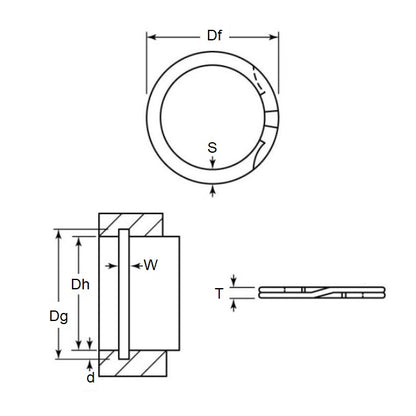

Housing Bore (B): 19.05mm
(19.05mm is 0.75 in.)
Carbon Spring Steel
- Housing Bore (B): 19.05mm
(19.05mm is 0.75 in.)
- Clip Thickness (T): 0.89mm
+/- 0.05
(0.89mm is 0.035 in.)
- Groove Dia. (Dg): 20.22mm
(20.22mm is 0.796 in.)
- Approx. Loose Circlip OD (Dr): 20.33mm
+ 0.33 / - 0.00
- Radial Wall (S) Approx.: 1.65mm
+/- 0.10
- Groove Width (W): 1.03mm
+/- 0.05
- Approx. Loose Clip ID: 17.03
+/- 0.04
- Groove Depth (d): 0.58
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 91985A141
- Associated Spring® AHI-075
- Huyett® RRN-075
- Smalley® WHM-075
- WHM075
- AHI075
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
RRN075,
