W0191-FP-025-0040-CH (PK-25)

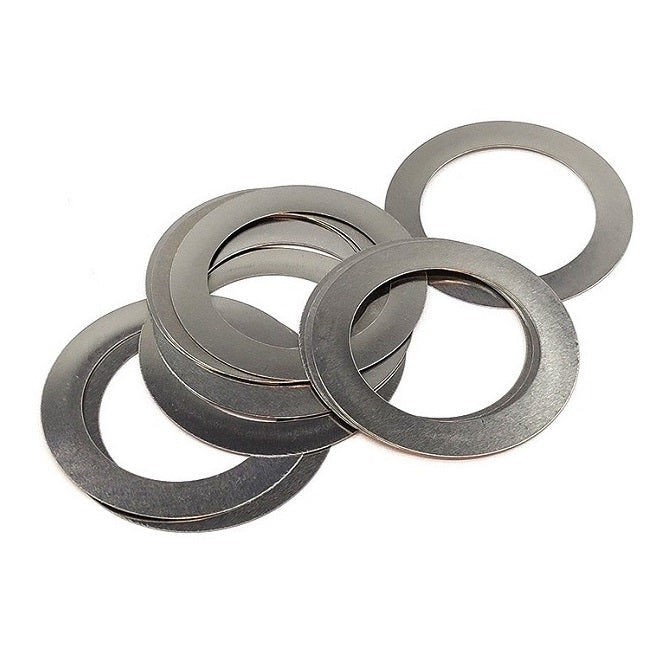

Flat Washers - 19.05x25.27x0.38 mm Precision Shim - Carbon Spring Steel AISI C1075 Washer
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Precision Shim Washer PDF Catalogue
Washers and Spacers PDF Catalogue
Screws
Order 50 or more packs of 25 (1250 pcs)
for $19.93 AUD per 25 pack
3/4 inch Washer - 19.05x25.27x0.38 mm Flat Washers - Carbon Spring Steel AISI C1075 - Sold per pack of 25:
Base Category: Washers - Flat
Top Level Category: Washers - Flat - Precision Shim - Carbon Spring Steel
Product Details

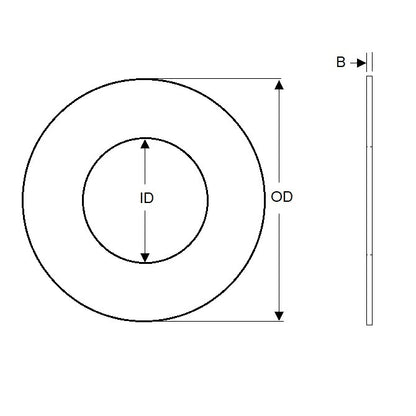

Nominal Inside Diameter (d): 19.050mm+ 0.153 / + 0.025
(19.050mm is 0.75 in.)
Carbon Spring Steel AISI C1075
- Nominal Inside Diameter (d): 19.050mm
+ 0.153 / + 0.025
(19.050mm is 0.75 in.)
- Nominal Outside Diameter (D): 25.270mm
- 0.05 / - 0.127
(25.270mm is 0.995 in.)
- Thickness (T): 0.380mm
+ 0.000 / - 0.050
(0.380mm is 0.015 in.)
- Other: Rockwell C 40 Min
- Grade: Precision
- Min. Actual ID (Ref): 19.203mm
Brand: MBA
Country of Origin: US
Product Compliance and Data
Similar to
- ALTPART
- 91124A058
- A7C8-G24015
- A7C8G24015
- W0191FP025004C
- W0191FP025004CH
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
W0191FP0250040CH, W0191FP025
