BLP-191-1016-BT-S17

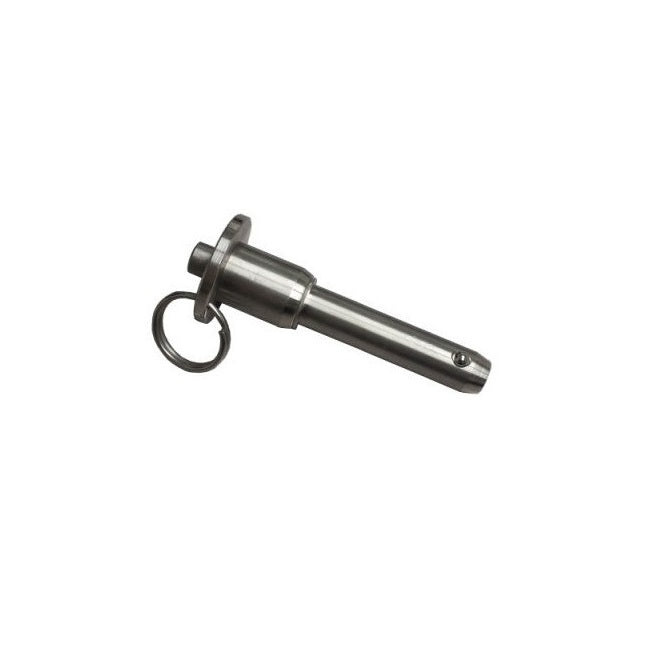

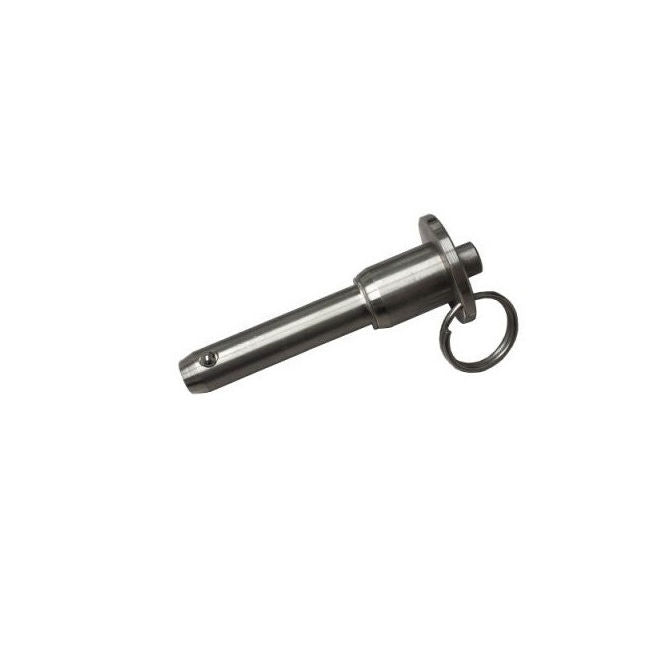

Ball Lock Pins - 19.05x101.6 mm - 17-4 PH Stainless / Aluminium Handle

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
1 3

MBA

Additional resources:
Master Pins Catalogue PDF
Flanged Receptacles for Ball Lock Pins
Price:
$231.95 AUD
$231.95 AUD
Each
Out Of Stock
Order 50 or more for $208.76 AUD Each
Pre-Order now! Backorders for more than the stock quantity are expected before May 22, 2025

Base Category: Pins - Ball Lock

Top Level Category: Pins - Ball Lock - Button Handle - Industrial Stainless Steel

Product Details:

Nominal Diameter: 19.05mm
Stainless Steel 17-4 PH with Aluminium Handle
  • Grip Length (B): 101.60mm
  • Pin Material Grade: 17-4 PH Stainless / Aluminium Handle
  • Locking Ball to End (C): 17.01mm
  • Open Ball Distance (B): 22.52mm
  • Ring Diameter (F): 41.66mm
  • Handle Length (R): 41.28mm
  • Pull Out Strength: 1335.00Kg
  • Calc. Double Shear Strength: 50905Kg
  • Max. Diameter: 19.01mm
  • Min. Diameter: 18.97mm

Brand: MBA
Country of Origin: DE

Alternative Parts Include: BLBS290, BLBS-290

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
