B-MXL-0180-0095-NFB (Each)

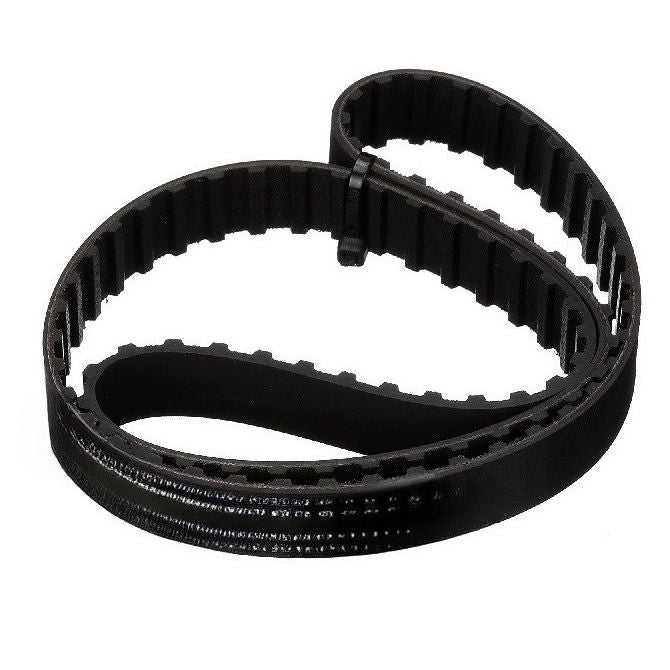

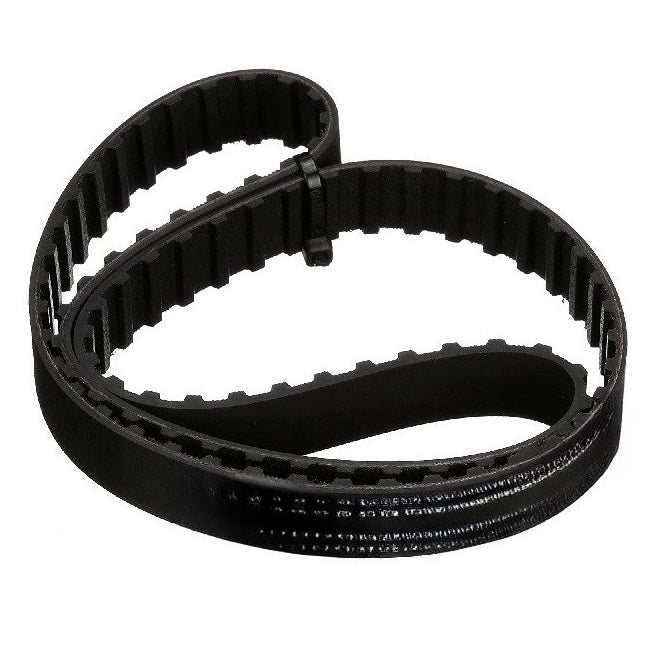

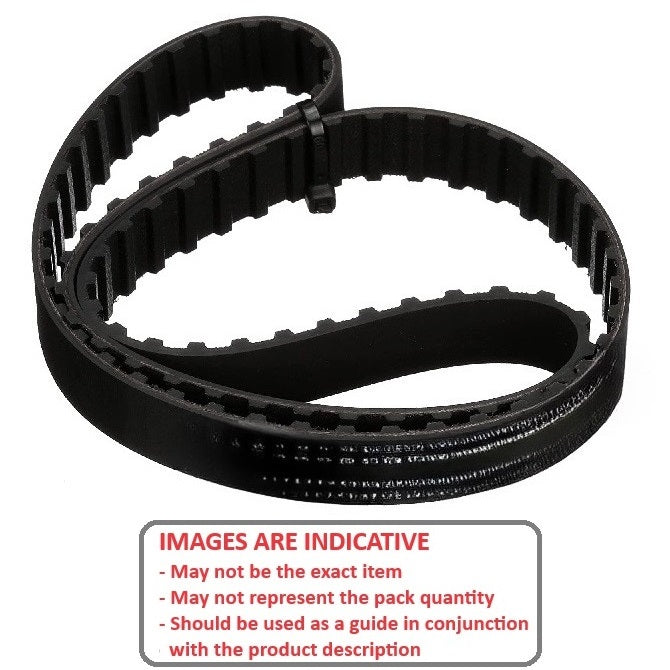

Inch Timing Belts - 180 tooth - 365.76x9.5 mm 2.032mm Pitch MXL - Nylon Covered Neoprene with Fibreglass Cords Belt
MBA
Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:Timing Belts Catalogue PDF
Timing Pulleys Catalogue
Order 50 or more
for $4.37 AUD Each
180 tooth - 365.76x9.5 mm Inch Timing Belts - Nylon Covered Neoprene with Fibreglass Cords - Sold per Each:
Base Category: Belts - Inch Timing
Top Level Category: Belts - Inch Timing - 2.032mm Pitch MXL - 9.5mm Wide
Product Details
Number of Teeth: 180Nylon Covered Neoprene with Fibreglass Cords
- Number of Teeth: 180
- Length: 365.76mm
(365.76mm is 14.4 in.)
- Width: 9.5mm
(9.5mm is 0.374 in.)
- Reinforcement: Fibreglass
- Appearance: Black
- Breaking Strength: 686N
- Min Temperature (C): -34Deg C
- Max Temperature (C): 85Deg C

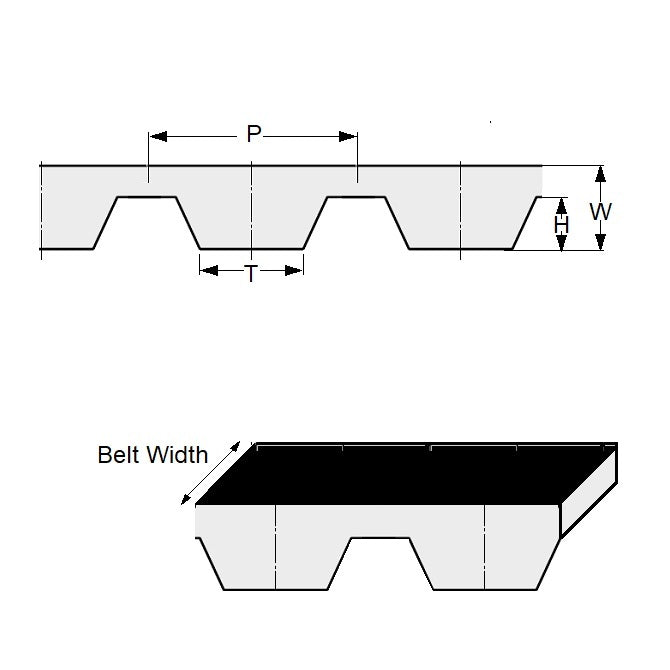

- Tooth Angle (A): 40°
Brand: MBA
Country of Origin: JP
Product Compliance and Data
Similar to
- Gates® 180MXL037
- Gates® BMXL01800095NF
- Misumi® C-TBN180MXL037
- CTBN180MXL037
- A6Z16-180037
- A6Z16180037
- A6Z16M180095
We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
BMXL01800095NFB, BMXL0180
