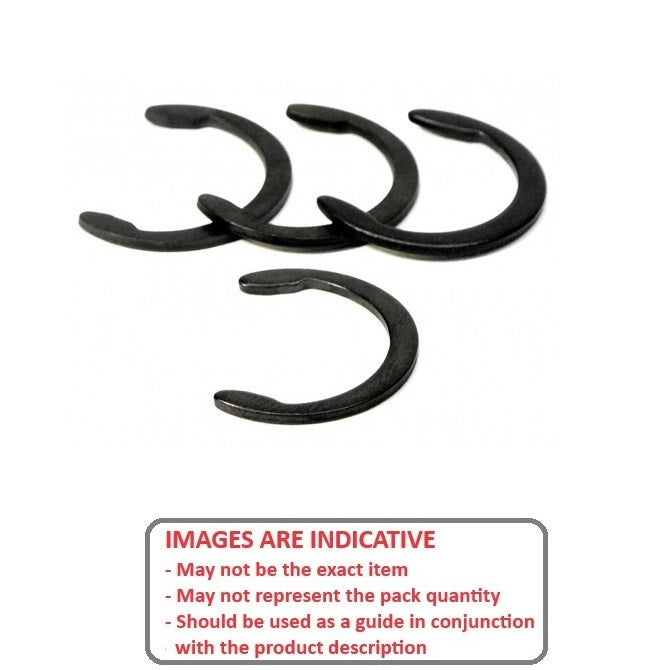

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.

1 3

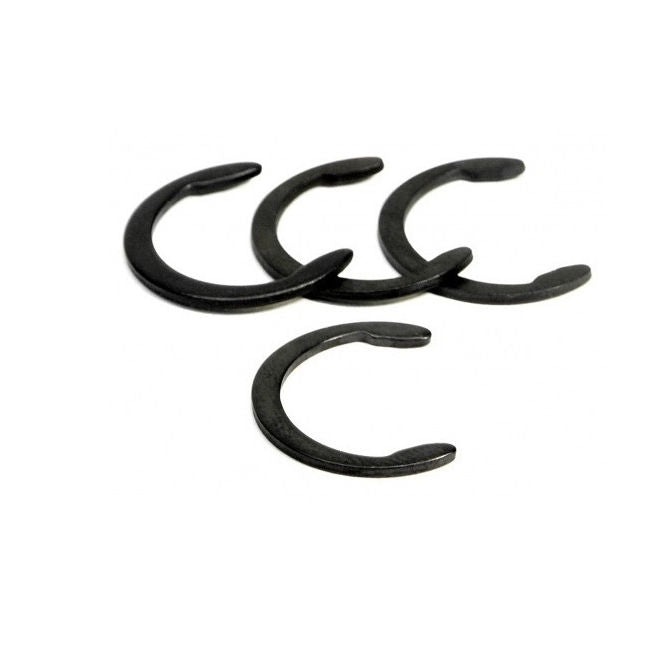

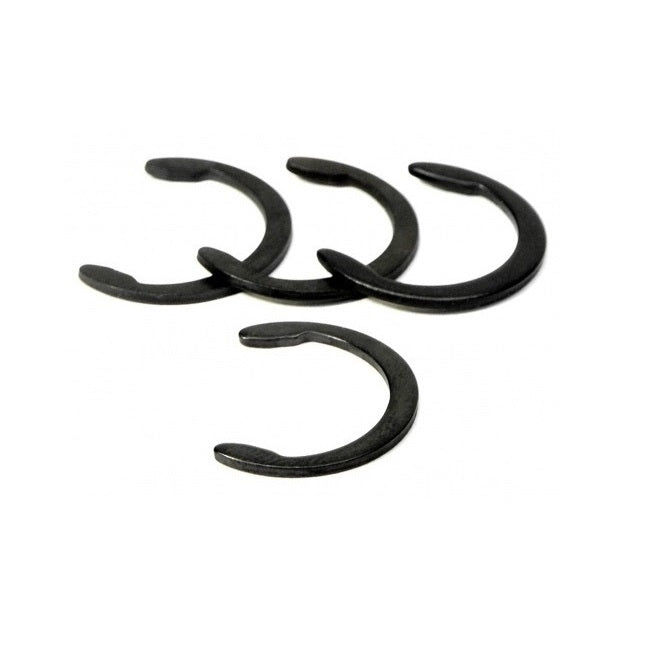

Rings - 18.59 mm x 20.63 mm x 1.07 mm
CC-186-206-C (5 Pcs)

Name: 1119642 | CC-186-206-C (5 Pcs) --- Rings - 18.59 mm x 20.63 mm x 1.07 mm
Brand: MBA
SKU: CC186206C
Price: 4.50 AUD
Availability: InStock

MBA

Category: Rings - Crescent

Price:

$4.50 AUD

per 5
Qty: 74 available now (370 pcs)
Order 50 or more (250 pcs) for $4.05 AUD per 5

Similar Items

You may order more than the quantity available. One delivery will be made when all items are ready unless you select for partial delivery at checkout. Backorders for more than the stock quantity are expected before Jan 03, 2025

Quantity

Base Category: Rings - Crescent

Top Level Category: Rings - Crescent

Product Details:

Additional stock available from USA subject to Prior Sale = 1061

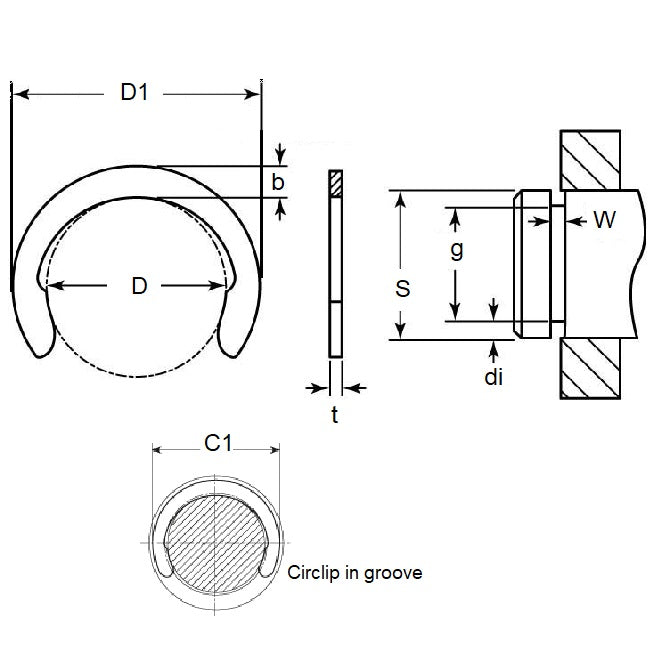

Groove Diameter (G): 18.59mm
Carbon Spring Steel

Shaft Diameter (S): 20.63mm
Thickness (t): 1.07mm
Clip OD in groove (C1): 23.88mm
Clip OD Loose (D1): 23.24mm
Groove Width (W): 1.17mm

Brand: MBA
Country of Origin: US

Alternatives: C-081, C-081/B, C-081-B, N1800-0081APP

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.

View full details
