P-030G-016-060FH-AL-G-048

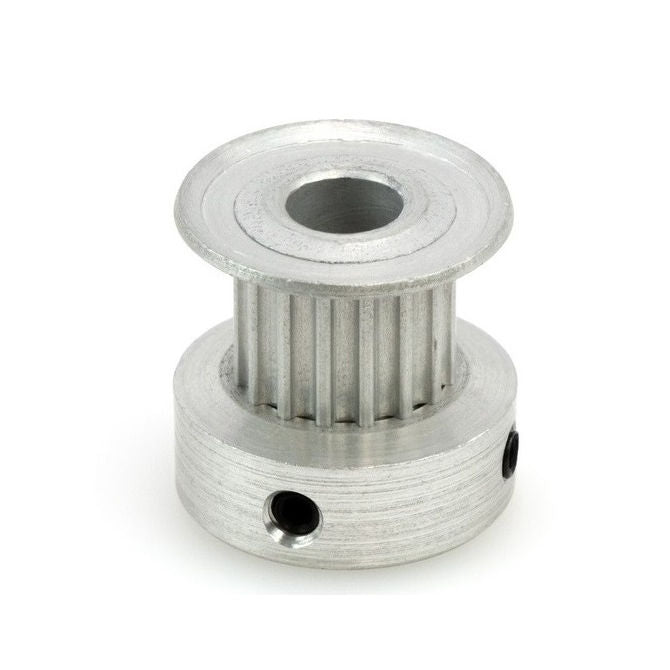

Metric Timing Pulleys - 16 tooth - 6x4.763 mm 3mm Pitch - Aluminium Pulley

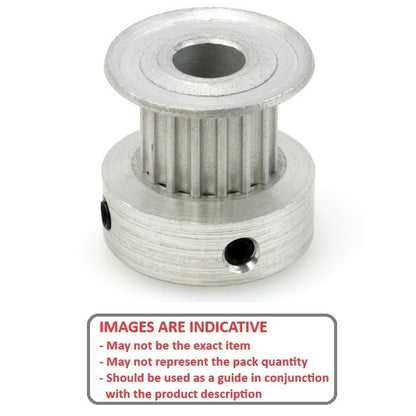

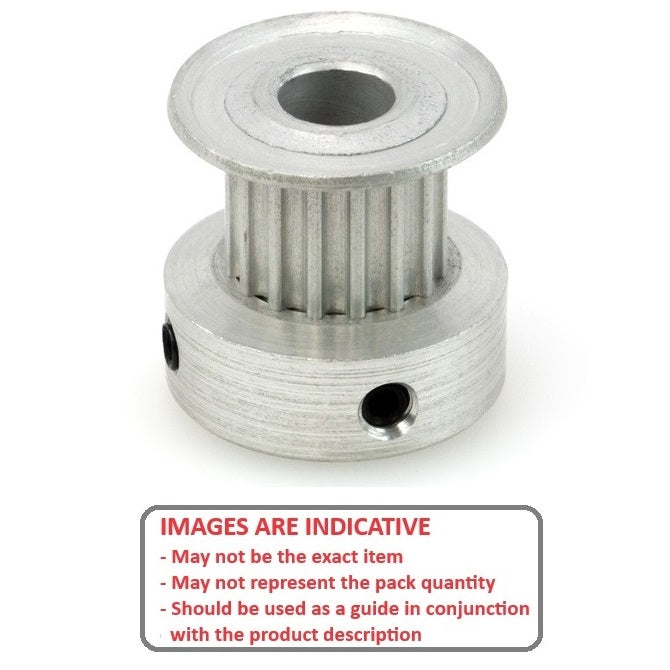

Images are indicative only and may not represent the pack quantity or specific item details. Images should be used as a guide in conjunction with the product description.
NaN -Infinity

MBA

Store: Minibearings - Miniature Bearings Australia - Domestic & Export Additional resources:
Timing Pulleys Catalogue PDF
3mm GT Timing Belts
Price:
$22.14 AUD
$26.56 AUD $22.14 AUD
Each
Excludes GST and overseas Taxes & Duties
 Backorder
Order 50 or more for $19.93 AUD
Backorder now! Backorders for more than the stock quantity are expected before Nov 09, 2025

Base Category: Pulleys - Metric Timing

Top Level Category: Pulleys - Metric Timing - 3.000mm Pitch - GT - 6mm Wide Metallic Through Bore

Product Details

Number of Teeth: 16

Aluminium
  • Number of Teeth: 16
  • Max Belt Width: 6.00mm
    (6.00mm is 0.236 in.)
  • Bore (d): 4.763mm
    (4.763mm is 0.188 in.)
  • Bore Type: Finished
  • Locking Type: Set Screw

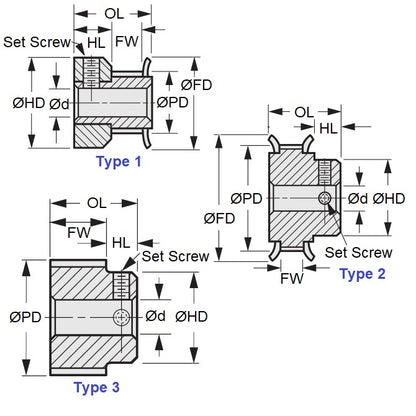

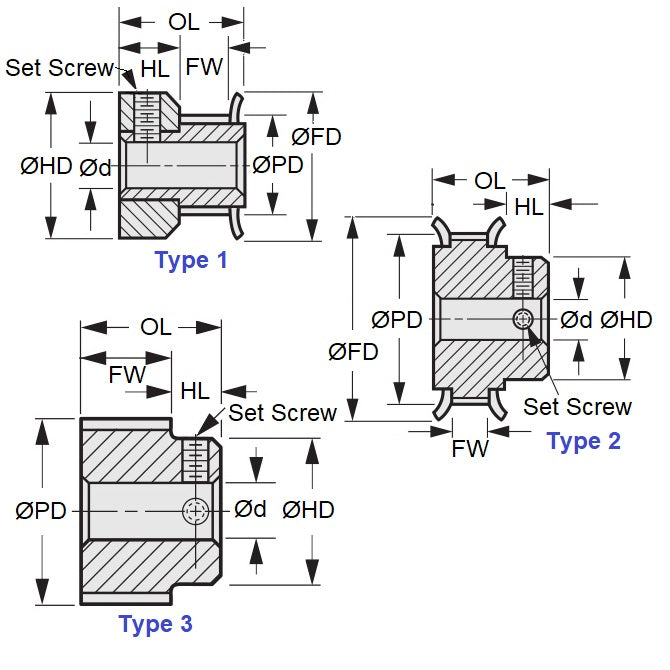

  • Type: 1
  • Pitch Dia. (PD): 15.27mm
  • Flange Diameter (FD): 18.3mm
  • Overall Length: 14.3mm
  • Hub Diameter (HD): 18.3

Brand: MBA
Country of Origin: IN

Product Compliance and Data

Similar to

  • Gates 16-3P06-6CA2
  • A6A53016DF0606
  • A6A53-016DF0606
  • 163P066CA2

We offer equivalents to many brands including Anderton, Barden, Berg, Designatronics, EZO, ISC, Koyo, Myonic, NMB, Nordex, NSK, Ondrives, Reid Industrial, RMB, SDP-SI, Seeger, SKF, and more.
